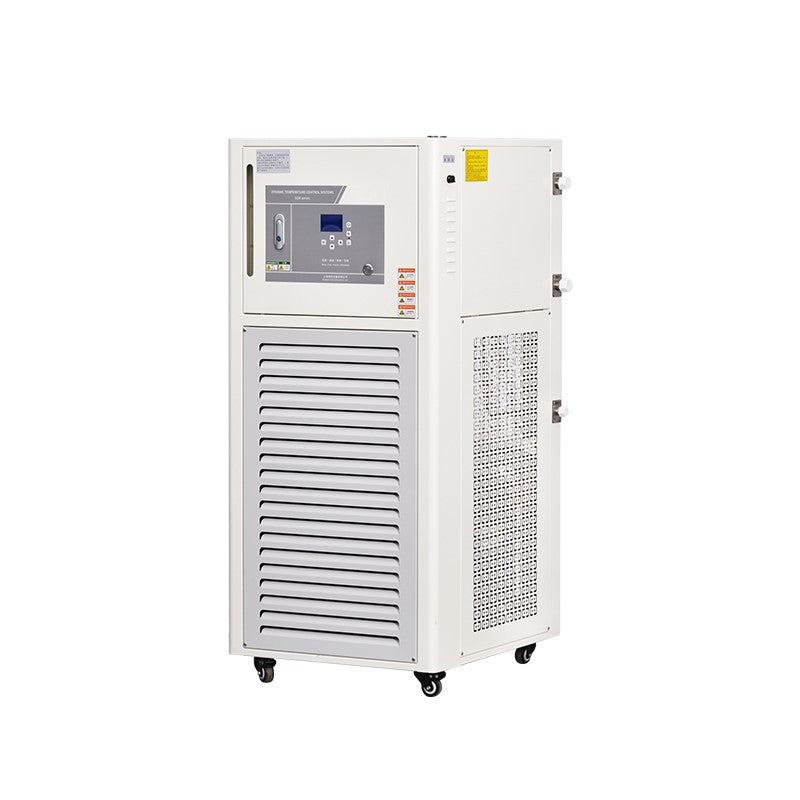

-80~200℃ Dynamic Temperature Control System
-80~200℃ Dynamic Temperature Control System
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

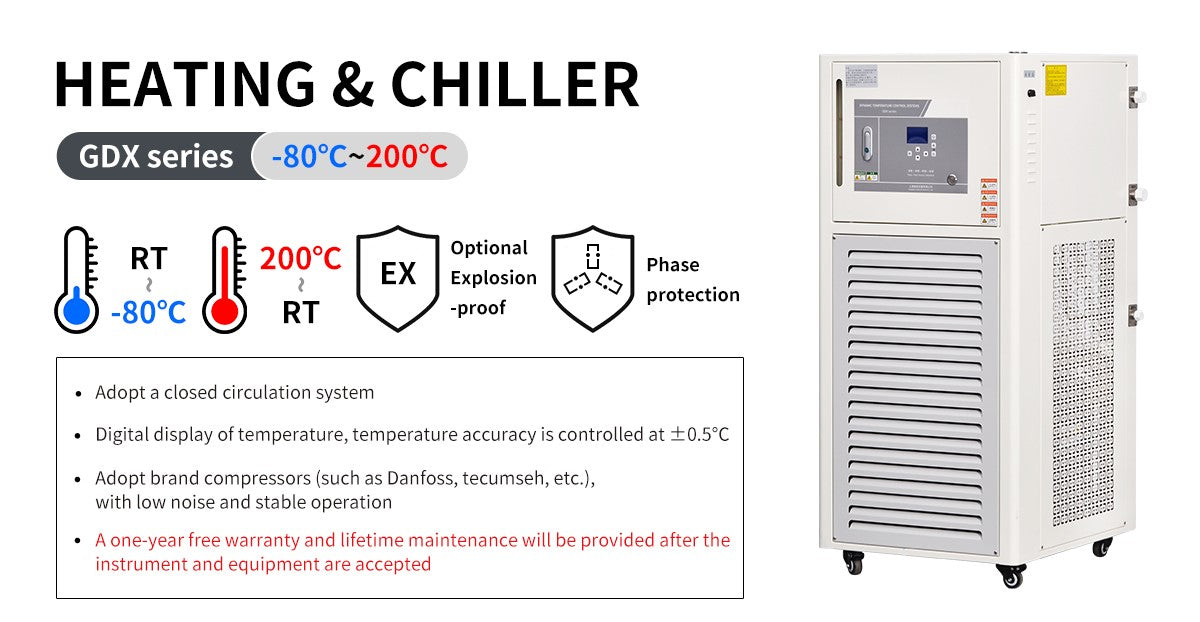

The dynamic temperature control system heater chiller is designed to provide rapid heating and cooling for laboratory and industrial processes. By utilizing a fully enclosed circulation pipeline and high-efficiency plate heat exchangers, the system significantly reduces the demand for thermal fluid while improving overall thermal energy utilization.
This advanced temperature control unit ensures precise temperature regulation, fast response times, and stable operation, making it ideal for applications requiring strict thermal management. It is widely used in chemical reactors, rotary evaporators, molecular distillation systems, pharmaceutical research, and other laboratory processes requiring accurate temperature control.

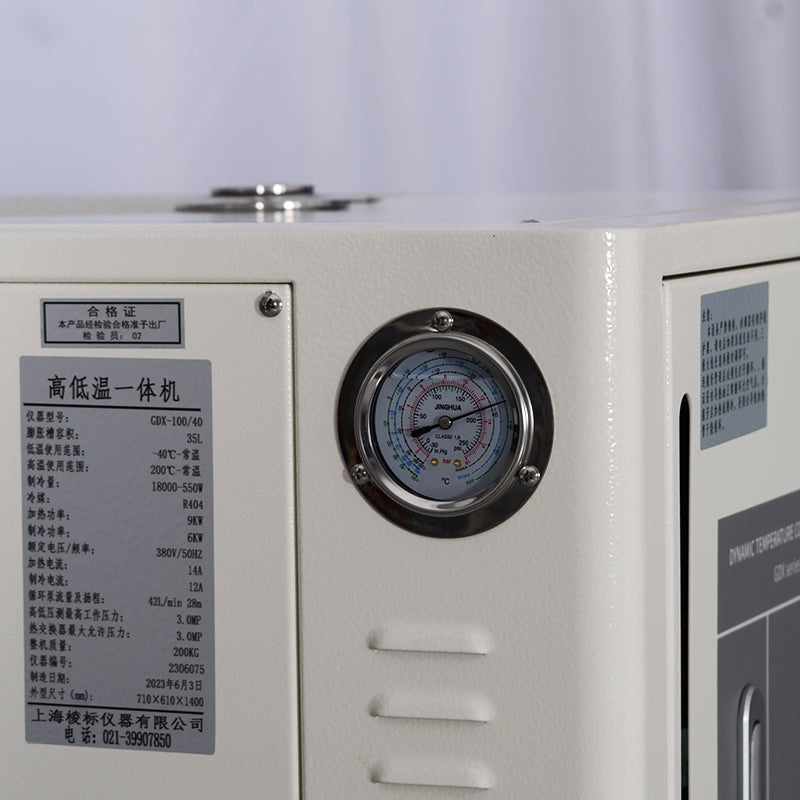

Technical Data
| Model | GDX-802B | GDX-803B | GDX-806B | GDX-809B | GDX-812B | GDX-818B |
|---|---|---|---|---|---|---|
| Temperature Range | -80~200℃ (Max 300℃); ±0.5℃ | |||||
| Ambient Temperature | ≤30℃ | |||||
| Ambient Humidity | 85% | |||||
| Voltage | 220V | 380V (Optional 3P 220V / 3P 480V) | ||||
| Phase | 1 | 3 | ||||
| Frequency | 50/60Hz | |||||
| Power (kW) | 4 | 5.5 | 13 | 20 | 22 | 36 |
| Heating Capacity (kW) | 2 | 3 | 6 | 9 | 12 | 18 |
Cooling Capacity
| Temperature | GDX-802B | GDX-803B | GDX-806B | GDX-809B | GDX-812B | GDX-818B |
|---|---|---|---|---|---|---|
| RT | 2200W | 3650W | 9000W | 12750W | 14500W | 22000W |
| 0℃ | 1800W | 2000W | 6000W | 9000W | 10000W | 12000W |
| -40℃ | 900W | 900W | 2200W | 6000W | 6000W | 8500W |
| -80℃ | 240W | 240W | 1000W | 1500W | 2200W | 3000W |

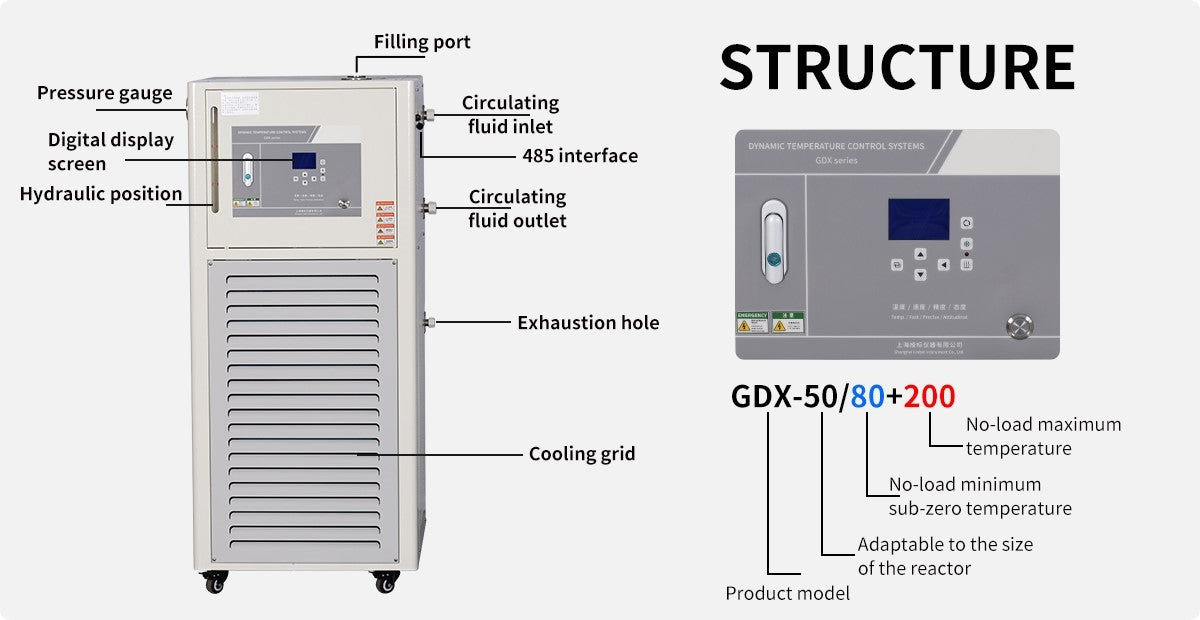

System Components
| Item | Specification |
|---|---|
| Temperature Sensor | PT100 |
| Compressor Type | Closed |
| Compressor Brand | Tecumseh / Danfoss |
| Refrigerant | R404A, R23 |
| Condenser | Air cooling / water cooling |
| Fan Type | External rotor axial flow fan |
| Evaporator | Plate heat exchanger |
Circulation System
| Item | Specification |
|---|---|
| Circulating Pump Type | Shield pump |
| Pump Brand | Shanghai Jingyi |
| Tank Volume | 7L – 100L |
| External Circulation Adapter | G1/2" – G1" |
Physical Dimensions
| Model | Weight (kg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| GDX-802B | 200 | 770 | 670 | 1180 |
| GDX-803B | 200 | 770 | 670 | 1180 |
| GDX-806B | 255 | 710 | 610 | 1250 |
| GDX-809B | 335 | 970 | 800 | 1250 |
| GDX-812B | 375 | 970 | 800 | 1350 |
| GDX-818B | 550 | 1400 | 970 | 1580 |

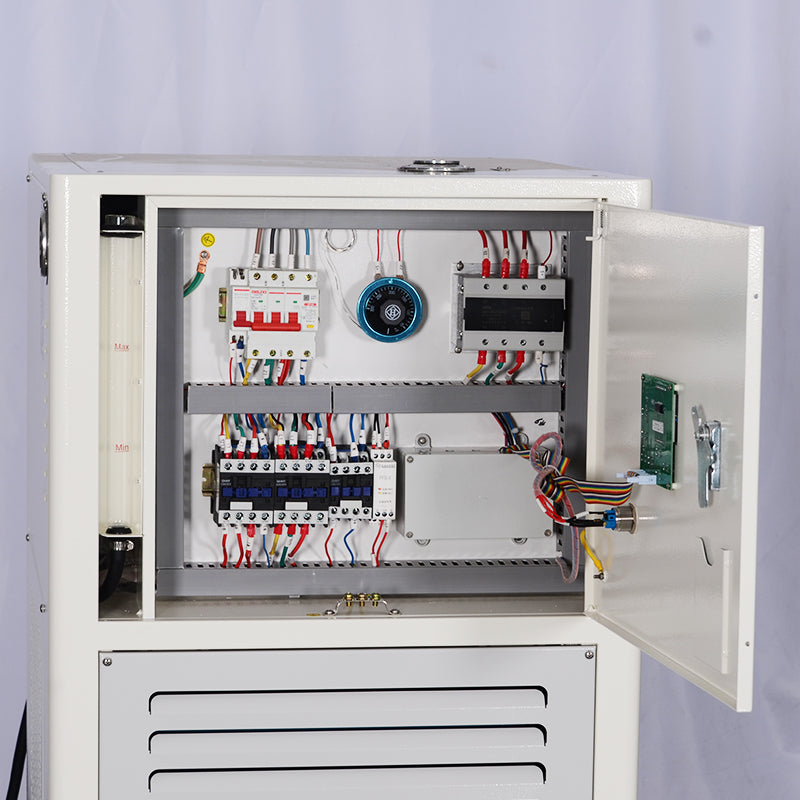

Control System
| Feature | Description |
|---|---|
| Control System | Microcontroller (optional Siemens PLC) with PID adaptive temperature control |
| Programming | 5 programmable programs, up to 40 steps each |
| Control Mode | Automatic switching between material temperature and outlet temperature |
| Communication Protocol | Modbus RTU RS485 (optional RS232 / Ethernet) |

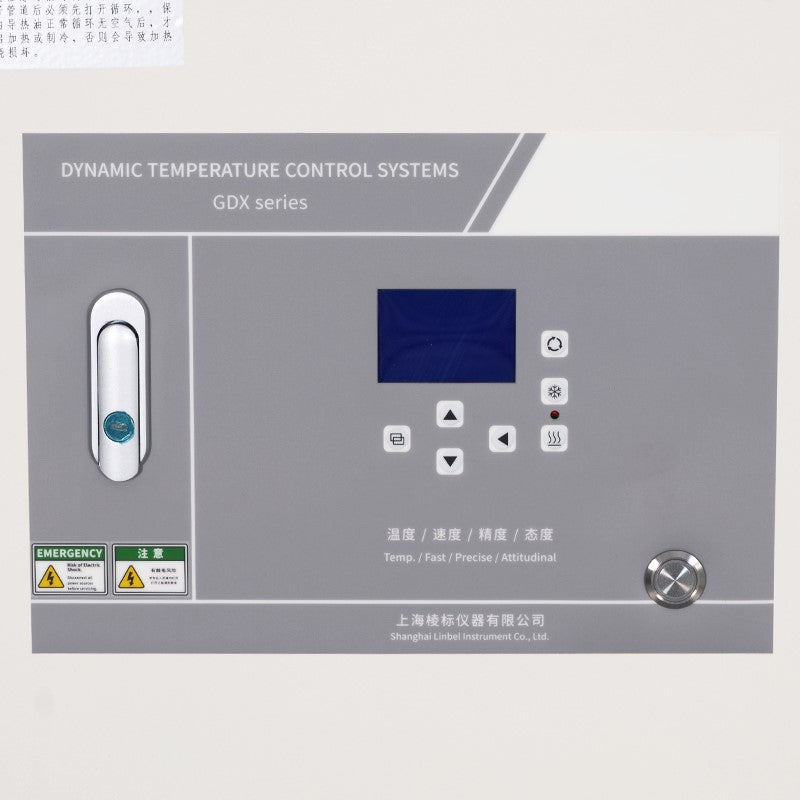

| Control Panel | 7-inch MCGS display (optional Siemens screen) |
| Data Export | USB data export, temperature data saved in TXT format |
Packing List
-
2 sets of adapter valves
-
1 roll of sealing tape
-
2 stainless steel insulated hoses
-
Operation manual
All data are measured in the factory environment; variations may occur during actual operation.
Applications
Chemical reactor temperature control
Rotary evaporator cooling and heating
Molecular distillation systems
Short path distillation equipment
Pharmaceutical research laboratories
Chemical and material science laboratories
