5L Rotary Evaporator
5L Rotary Evaporator
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

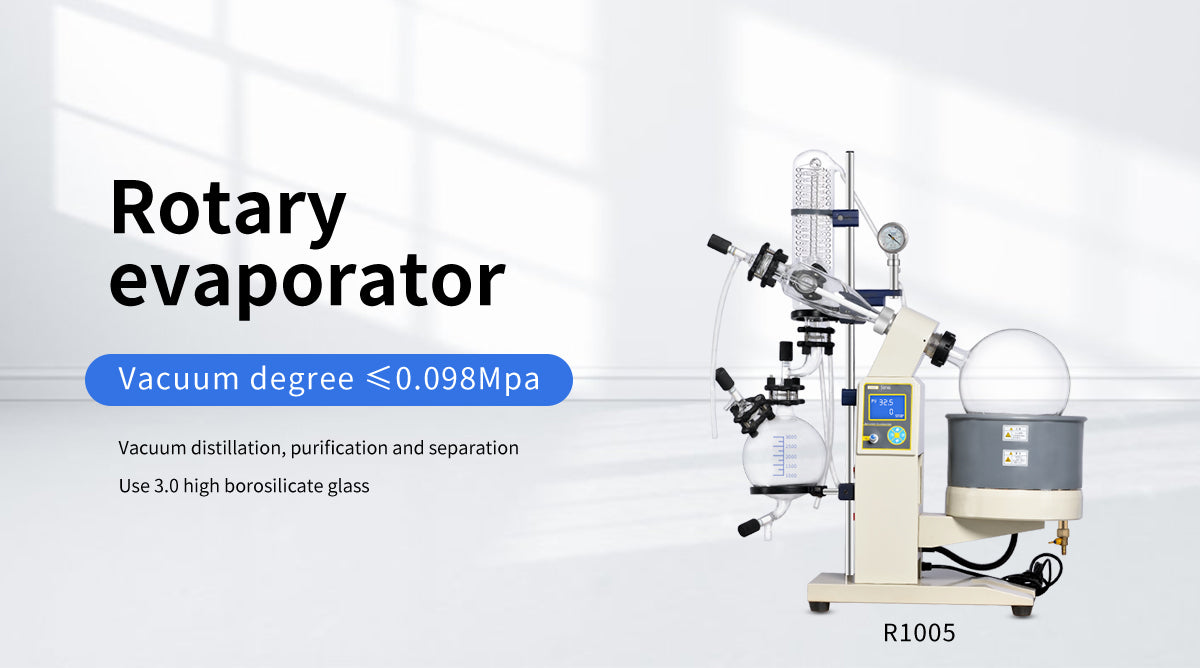

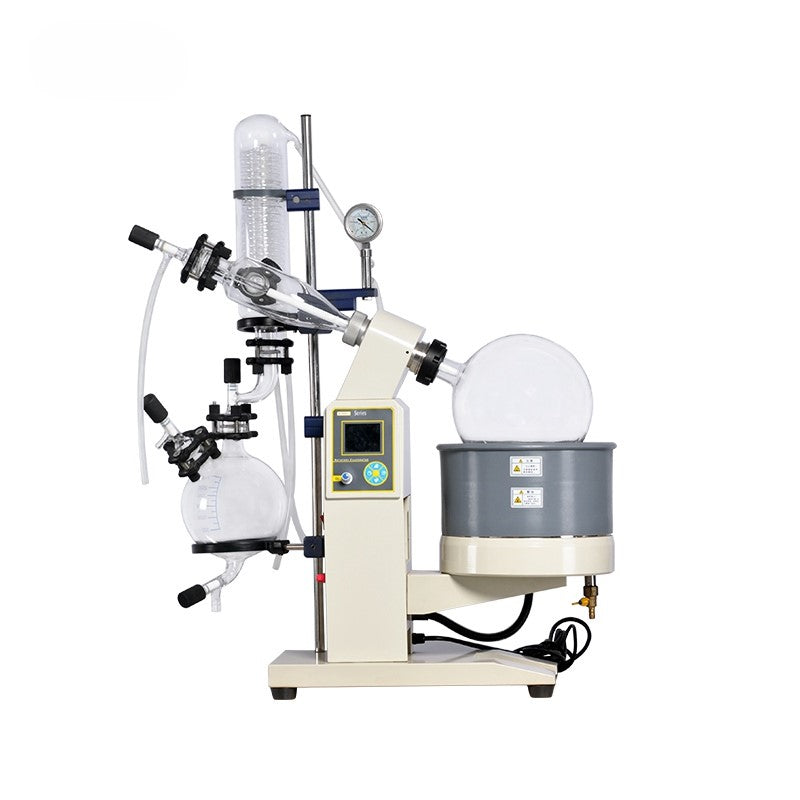

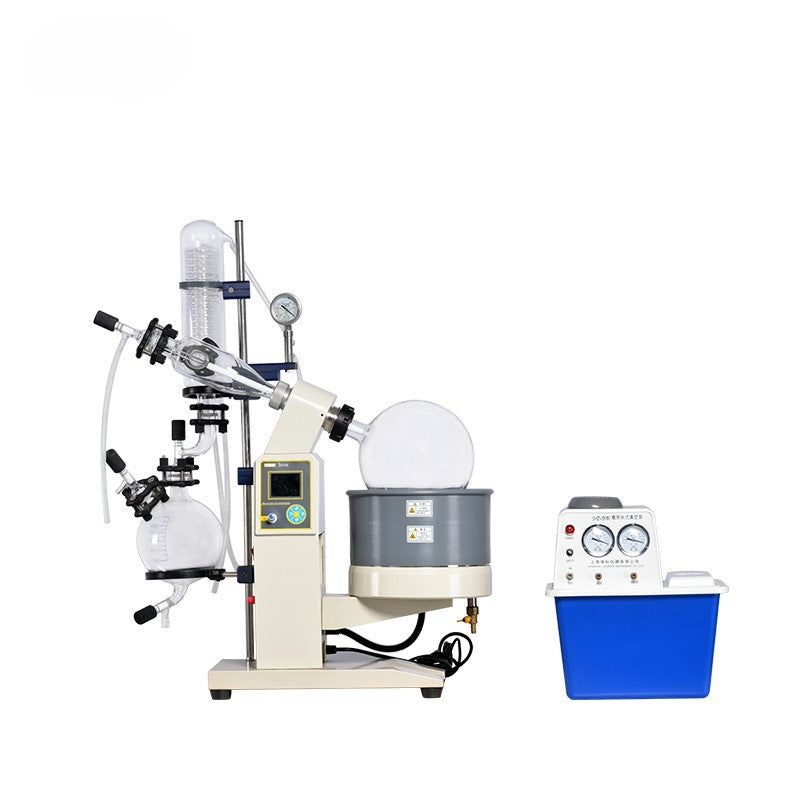

The 5L Rotary Evaporator (R1005) is a reliable laboratory evaporation system designed for efficient solvent evaporation, concentration, and separation in chemical, biological, and pharmaceutical laboratories. The equipment is widely used for processes such as concentration, crystallization, drying, separation, and solvent recovery.

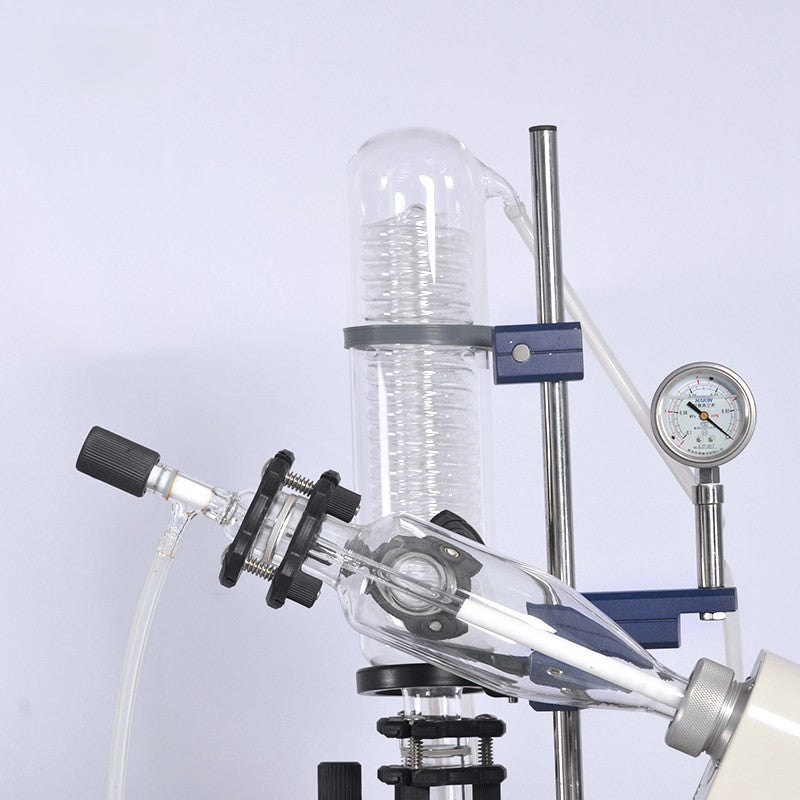

The system utilizes digital DC stepless speed control, allowing smooth and stable rotation of the evaporation flask to form a thin liquid film for faster evaporation and improved heat transfer. A vertical double-serpentine condenser provides efficient cooling and enhanced solvent condensation performance.

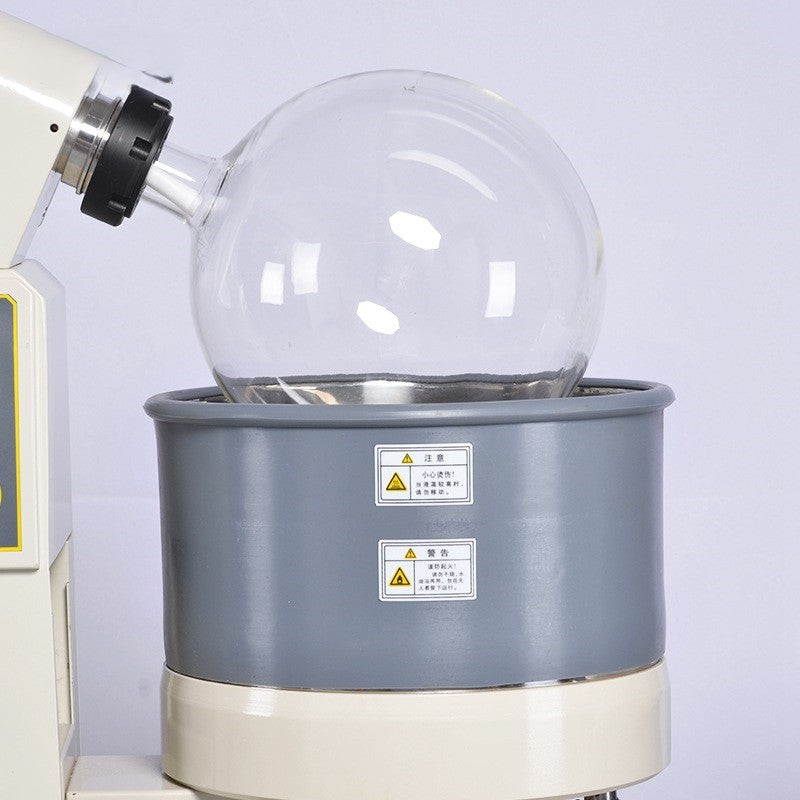

Equipped with a SUS304 stainless steel heating bath, the rotary evaporator ensures uniform heating and precise temperature control. The electric lifting mechanism allows convenient adjustment of the evaporation flask position during operation.
To ensure safe laboratory operation, the system includes multiple safety protection features, including overcurrent protection, ground fault protection, over-temperature protection, and dry-heating protection.
This rotary evaporator is suitable for research laboratories, pharmaceutical production, chemical processing, and academic institutions.
| Parameter | Specification |
|---|---|
| Model | R1005 |
| Temperature Control Range | RT – 99 °C |
| Temperature Accuracy | ±1.5 °C |
| Control Screen | LCD Display |
| Heating Power | 1500 W |
| Total Power | 1800 W |
| Maximum Vacuum | 399.9 Pa (≤ 3 mmHg) |
| Pressure Rise Rate | ≤ 2 kPa/h |
| Rotary Motor Power | 100 W |
| Rotation Speed | 20 – 140 rpm |
| Speed Control | Digital DC stepless speed regulation |
| Condenser Type | Vertical double-serpentine condenser |
| Condensation Area | 0.27 m² |
| Rotary Flask | 5 L flange type (Ø50 mm) |

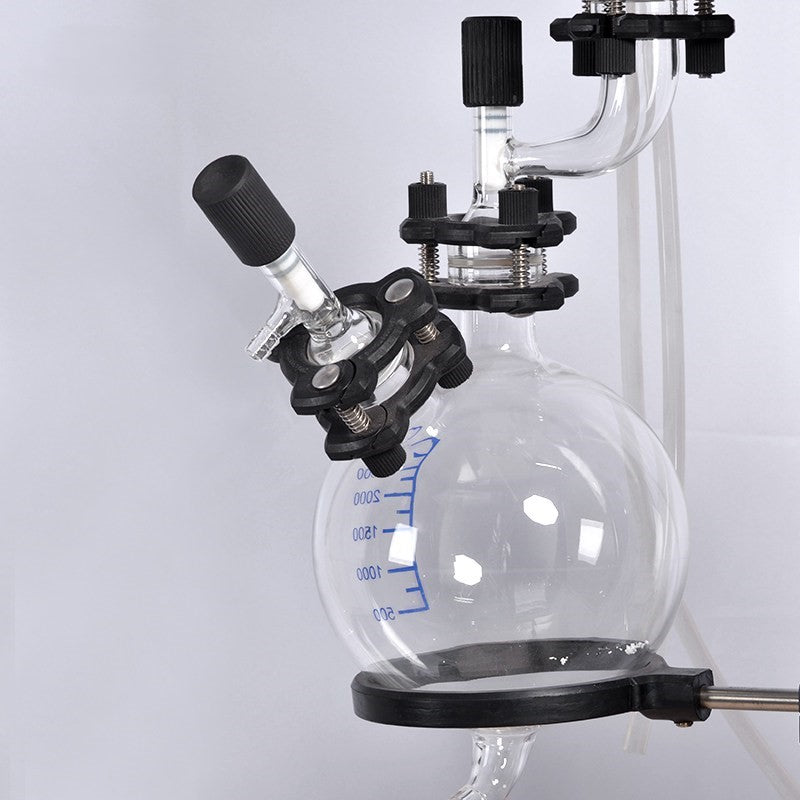

| Collection Flask | 3 L |
| Bath Material | SUS304 stainless steel |
| Bath Size | Ø300 × 170 mm |
| Bath Power | 4000 W |
| Lifting Mode | Electric lifting |
| Lifting Distance | 0 – 100 mm |
| Lifting Speed | 10 mm/s |
| Vacuum Seal | Teflon + fluorinated rubber double seal |
| Discharge Valve | PTFE |
Evaporation Performance
| Solvent | Evaporation Rate |
|---|---|
| Water | 2 L/h |
| Ethanol | 5.4 L/h |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 5 – 35 °C |
| Ambient Humidity | ≤ 65% RH |
| Power Supply | Single phase 110V / 220V, 50 / 60 Hz |
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Product Dimensions | 660 × 400 × 1020 mm |
| Product Weight | 33 kg |
| Packing Dimensions | 910 × 430 × 860 mm |
| Gross Weight | 50 kg |
Applications
-
Solvent evaporation and recovery
-
Chemical concentration and purification
-
Crystallization processes
-
Pharmaceutical and biotechnology research
-
Organic synthesis laboratories
-
Academic and industrial R&D laboratories
