-40℃ Sealed Recirculating Chiller

Name: -40℃ Sealed Recirculating Chiller
Brand: Atlas Equipment Solutions
Availability: InStock

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

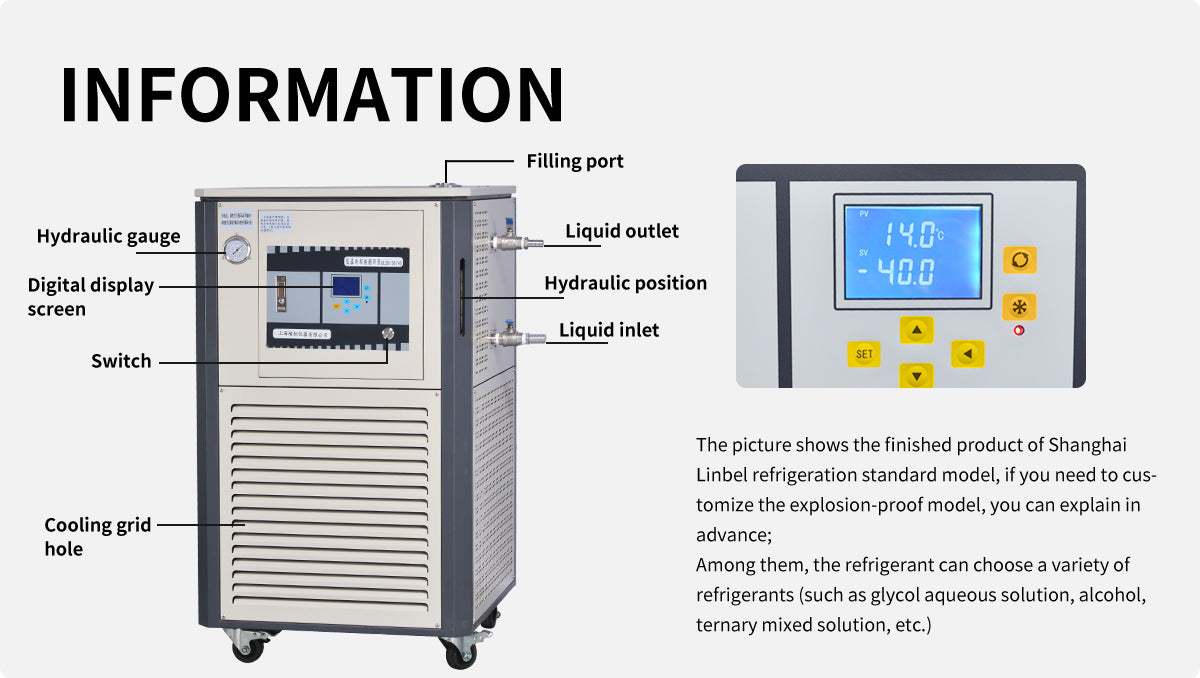

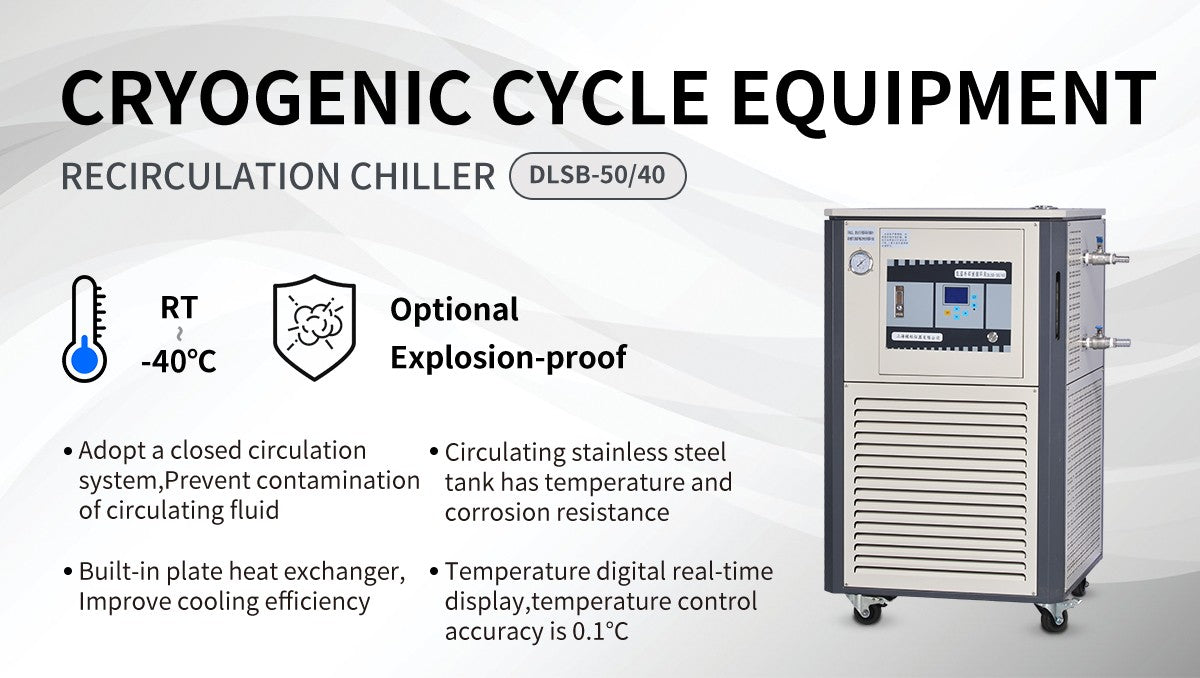

The -40 °C Sealed Recirculating Chiller is a closed-loop cooling system designed to provide stable and efficient low-temperature circulation for laboratory and industrial equipment. The sealed circulation structure prevents contamination and evaporation of the coolant while maintaining consistent cooling performance and reducing maintenance requirements.

With a temperature range down to -40 °C, the system is suitable for applications requiring precise and continuous temperature control. It uses a high-efficiency compressor, plate heat exchanger evaporator, and intelligent temperature control system to deliver reliable cooling performance and accurate temperature regulation.

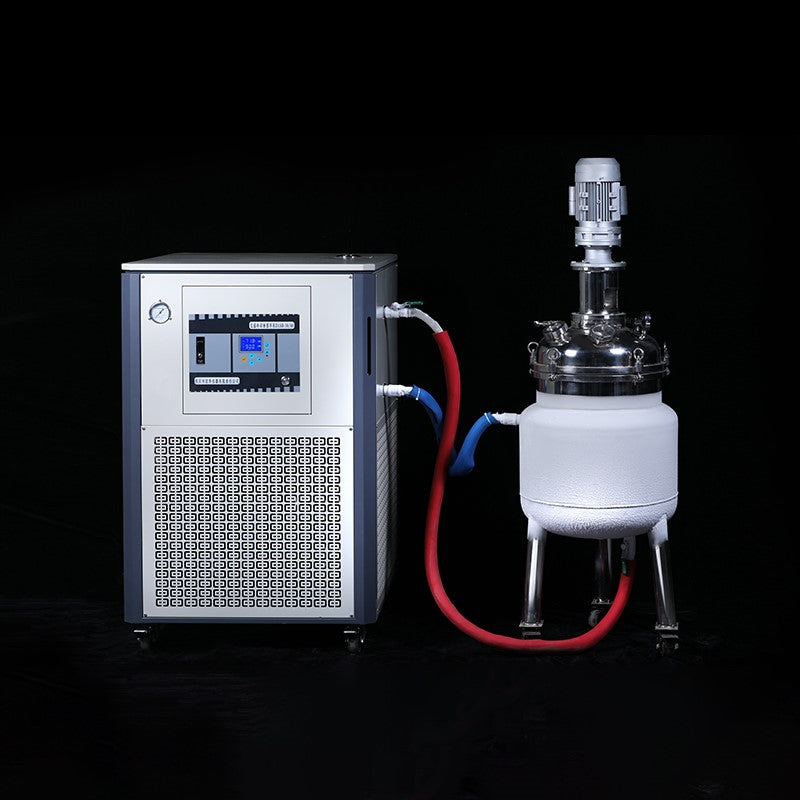

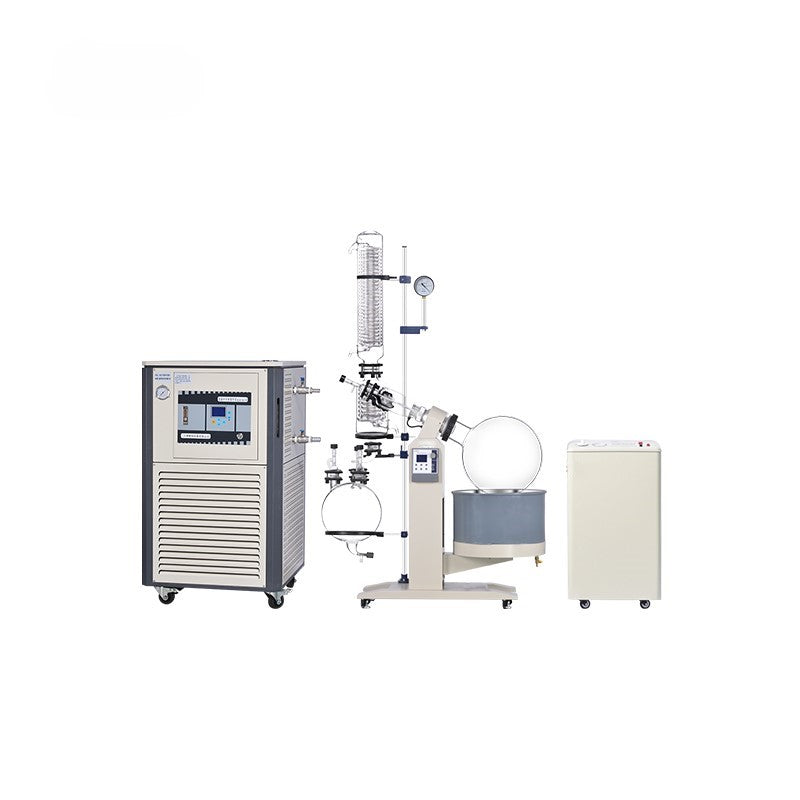

The chiller can be connected to equipment such as glass reactors, rotary evaporators, molecular distillation systems, vacuum freeze dryers, condensers, and other laboratory instruments. Its compact design, stable operation, and multiple safety protections make it suitable for chemical laboratories, pharmaceutical research, biotechnology applications, and pilot-scale industrial processes.

Model	DLSB-10/40	DLSB-30/40	DLSB-50/40	DLSB-100/40	DLSB-200/40	DLSB-300/40
Temperature Range	-40 °C ~ RT (±0.5 °C)

Operating Conditions

Parameter	Specification
Ambient Temperature	≤30 °C
Ambient Humidity	≤60%
Voltage	220 V / 380 V (Optional 3P 220 V / 3P 480 V)
Phase	Single-phase / Three-phase
Frequency	50 / 60 Hz

Power

Model	Power
DLSB-10/40	1.3 kW
DLSB-30/40	3 kW
DLSB-50/40	5 kW
DLSB-100/40	6.5 kW
DLSB-200/40	8 kW
DLSB-300/40	13 kW

Cooling Capacity

Temperature	10	30	50	100	200	300
25 °C (W)	2800	6000	12000	14000	22000	28000
-20 °C (W)	2060	4100	6200	8500	10000	14190
-40 °C (W)	650	1100	2200	2800	3500	4800

Refrigeration System

Parameter	Specification
Compressor Type	Closed
Compressor Brand	Tecumseh / Danfoss
Refrigerant	R404A / R448
Condenser Type	Air cooling / water cooling
Fan Type	External rotor axial flow fan
Evaporator	Plate heat exchanger

Circulation System

Model	Tank Volume
DLSB-10/40	7 L
DLSB-30/40	10 L
DLSB-50/40	17 L
DLSB-100/40	35 L
DLSB-200/40	100 L
DLSB-300/40	100 L

Flow Rate	25 L/min – 97 L/min
External Circulation Connection	DN15 / DN20 / DN25

Circulating Pump

Parameter	Specification
Pump Type	Shield pump / Magnetic pump
Brand	Shanghai Jingyi / Puneet
Power	100 W – 280 W
Rated Head	6 m – 12 m
Rated Flow	25 L/min – 97 L/min

Dimensions & Weight

Model	Length	Width	Height	Weight
10	620 mm	540 mm	920 mm	120 kg
30	710 mm	580 mm	1050 mm	156 kg
50	770 mm	670 mm	1180 mm	220 kg
100	970 mm	800 mm	1350 mm	268 kg
200	1200 mm	970 mm	1600 mm	430 kg
300	1400 mm	970 mm	1680 mm	490 kg

Optional PLC Control System

Feature	Specification
PLC System	Siemens S7-200 Smart PLC
Programming	5 programs with up to 40 steps each
Control Mode	Automatic switching between material temperature and equipment outlet temperature
Communication	Modbus RTU RS485 (optional RS232 / Ethernet)
Display	7-inch Siemens touch screen (optional 10-inch)
Data Export	USB export of temperature data (TXT format)
