-40~200℃ Dynamic Temperature Control System

Name: -40~200℃ Dynamic Temperature Control System
Brand: Atlas Equipment Solutions
Availability: InStock

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

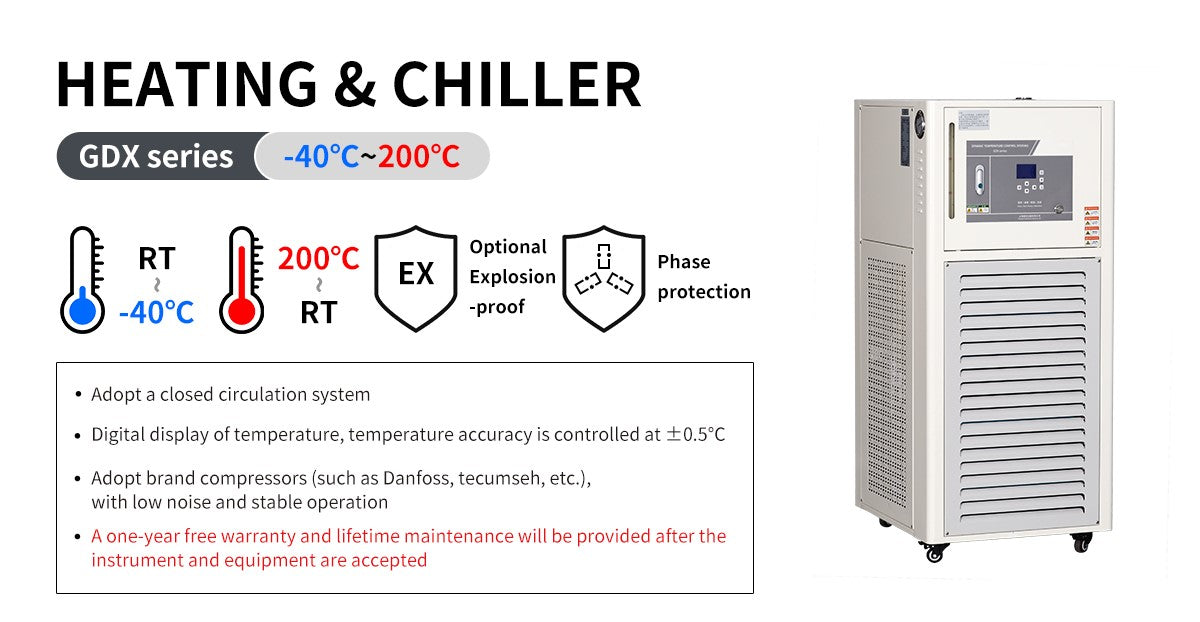

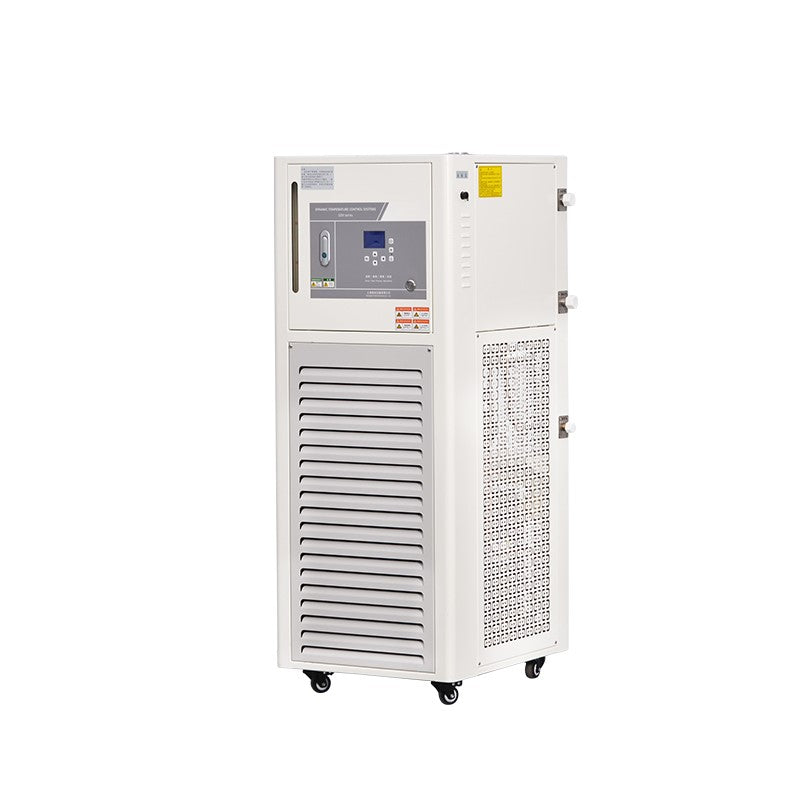

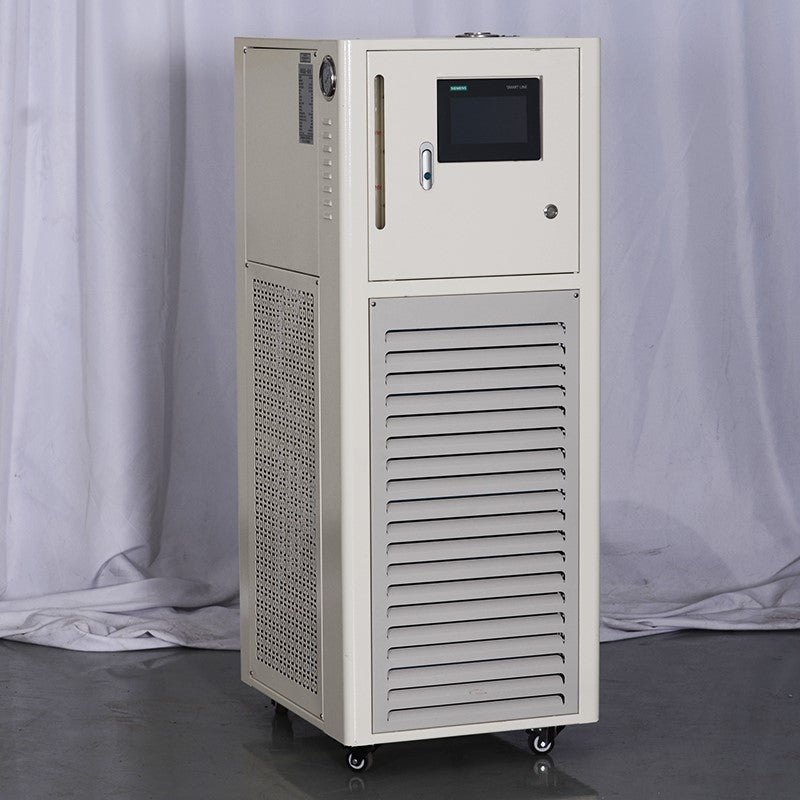

The Dynamic Temperature Control System (-40°C ~ 200°C) is an advanced laboratory temperature control solution designed to provide precise heating and cooling for chemical, pharmaceutical, and industrial processes. This integrated chiller system allows both heating and refrigeration within a single unit, enabling continuous temperature regulation without the need to change thermal media.

The system utilises a fully enclosed circulation loop, preventing oil mist generation at high temperatures while also avoiding moisture absorption at low temperatures. This closed design improves overall system stability, enhances thermal efficiency, and ensures consistent performance during long-term operation.

Equipped with a high-efficiency compressor, intelligent PID temperature control, and programmable operation, the system allows users to precisely control process temperatures between -40°C and 200°C (maximum 300°C). A 7-inch high-definition touch screen provides real-time monitoring, programmable operation steps, and temperature curve recording with USB data export capabilities.

Designed for laboratory research, pilot-scale processing, and industrial temperature control applications, this dynamic temperature control system offers high reliability, flexible configuration, and excellent thermal performance.

General Technical Specifications

Parameter	Specification
Temperature Range	-40°C ~ 200°C (Maximum 300°C)
Temperature Stability	±0.5°C
Ambient Temperature	≤ 30°C
Ambient Humidity	≤ 60%
Voltage	220V (optional 1P 220V) / 380V (optional 3P 220V or 3P 480V)
Phase	1 / 3
Frequency	50 / 60 Hz
Temperature Sensor	PT100
Refrigerant	R404A
Condenser Type	Air cooling or water cooling
Evaporator Type	Plate heat exchanger
Circulating Pump	Shield pump / vortex pump
Pump Brand	Shanghai Jingyi / Aulank
Control System	Microcontroller system (optional Siemens PLC) with PID adaptive control

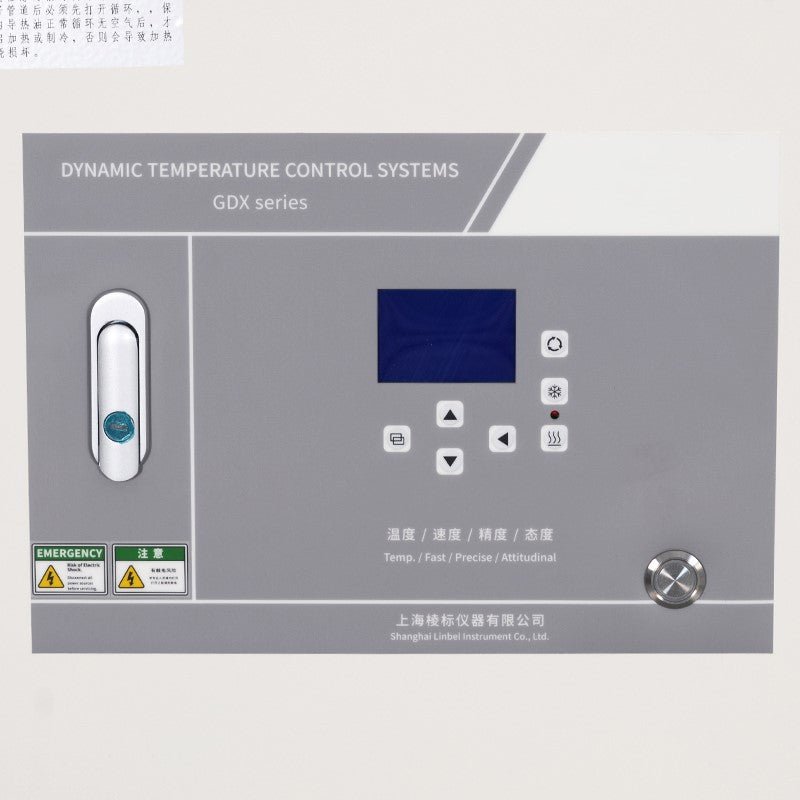

Control Panel	7-inch MCGS HD touch screen (optional Siemens screen)
Programming	Up to 5 programs, each with 40 steps
Communication	Modbus RTU (RS485), optional RS232 or Ethernet
Data Export	USB export, temperature data in TXT format

Model Specifications

Model	GDX-402A	GDX-403A	GDX-406A	GDX-409A	GDX-412A	GDX-418A
Total Power (kW)	3	4.5	9	14.5	17.5	27.5
Heating Capacity (kW)	2	3	6	9	12	18
Cooling Capacity at RT (W)	2200	3200	7000	11000	13500	20000
Cooling Capacity at 0°C (W)	1600	1900	5400	7000	9000	15000
Cooling Capacity at -40°C (W)	300	400	1200	2500	3000	4000

Compressor Specifications

Model	GDX-402A	GDX-403A	GDX-406A	GDX-409A	GDX-412A	GDX-418A
Compressor Type	Closed
Compressor Brand	Tecumseh
Compressor Power (kW)	0.75	1.25	3	4.5	4.5	7.5
Horsepower (HP)	1	1.5	4	7	6	10
Quantity	1

Circulation Pump Specifications

Model	GDX-402A	GDX-403A	GDX-406A	GDX-409A	GDX-412A	GDX-418A
Pump Power (W)	100	250	370	750	750	750
Current (A)	1	1	2.1	3.5	3.5	3.5
Rated Head (m)	20	20	20	20	28	40
Rated Flow (L/min)	20	20	20	35	42	60

Tank & Connection Specifications

Model	GDX-402A	GDX-403A	GDX-406A	GDX-409A	GDX-412A	GDX-418A
Tank Volume (L)	7	17	35	100
External Circulation Interface	G1/2"	G3/4"	G1"

Dimensions & Weight

Model	GDX-402A	GDX-403A	GDX-406A	GDX-409A	GDX-412A	GDX-418A
Weight (kg)	60	90	130	170	220	340
Packed Weight (kg)	80	115	150	220	290	430
Length (mm)	540	530	530	530	610	1408
Width (mm)	640	640	640	640	710	958
Height (mm)	880	880	1100	1388	1388	1556
