-30℃ thermostat circulating water bath

Name: -30℃ thermostat circulating water bath
Brand: Atlas Equipment Solutions
Availability: InStock

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

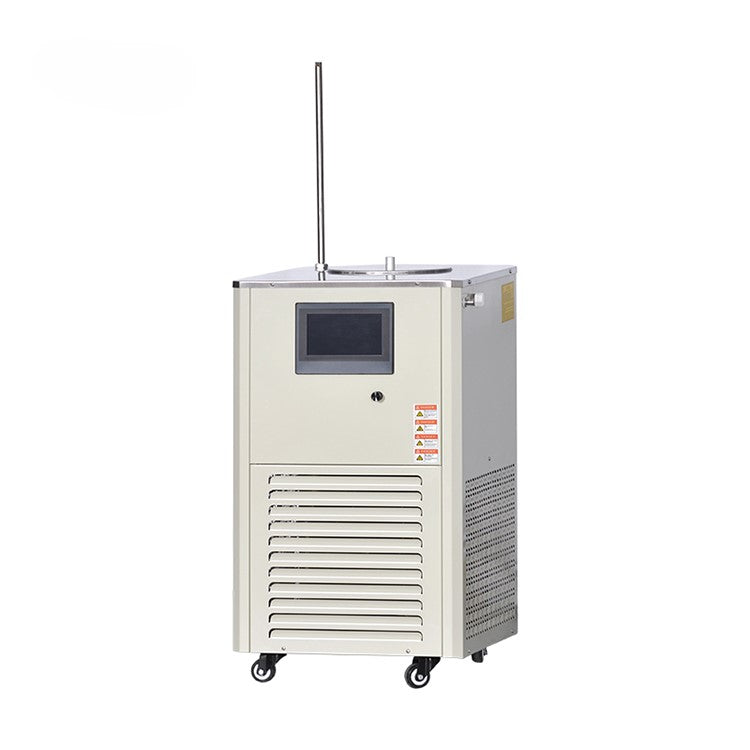

The -30 °C Thermostat Circulating Water Bath is designed for precise low-temperature laboratory experiments and temperature-controlled processes. It is widely used in scientific research, biology, physics, pharmaceutical laboratories, and chemical industry applications where stable and accurate temperature control is required.

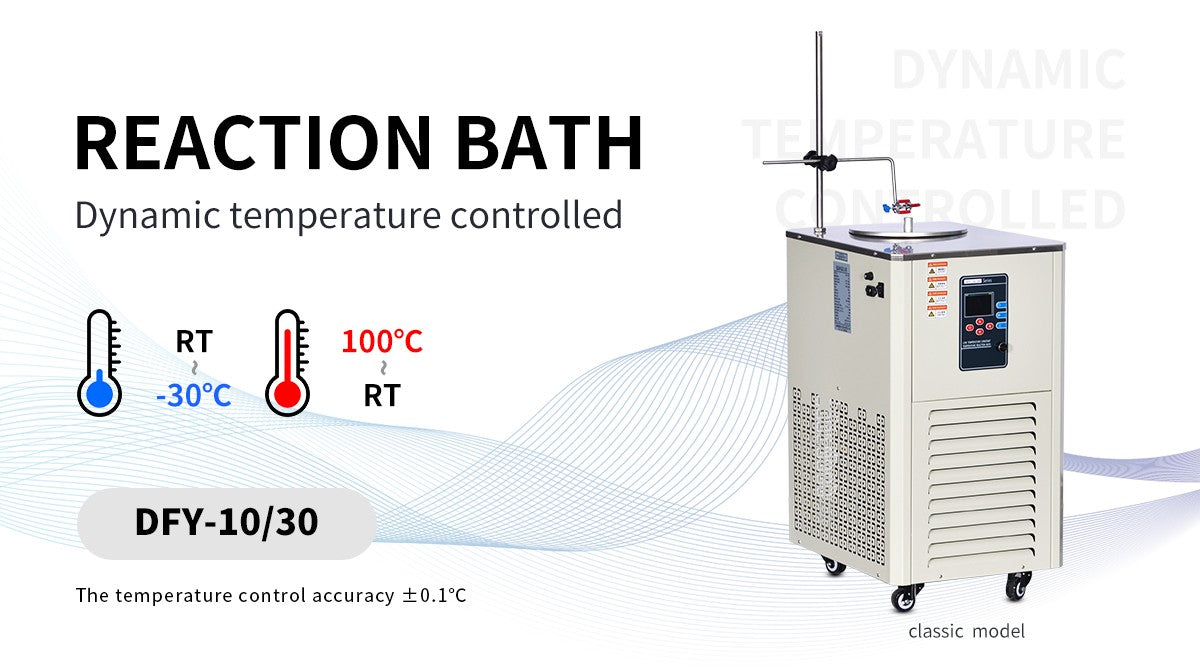

This circulating bath provides a temperature range from -30 °C to 99 °C with high accuracy of ±0.1 °C, allowing both cooling and heating functions within a single unit. It can replace traditional cooling methods such as dry ice or liquid nitrogen for many laboratory reactions, providing a safer and more convenient alternative.

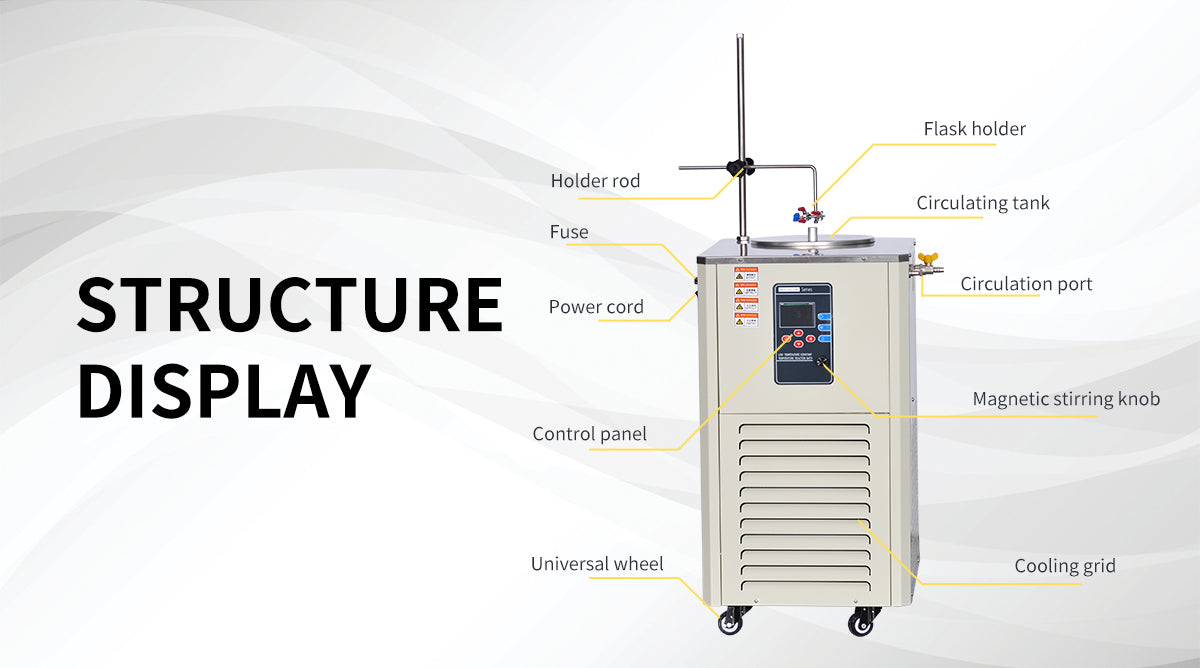

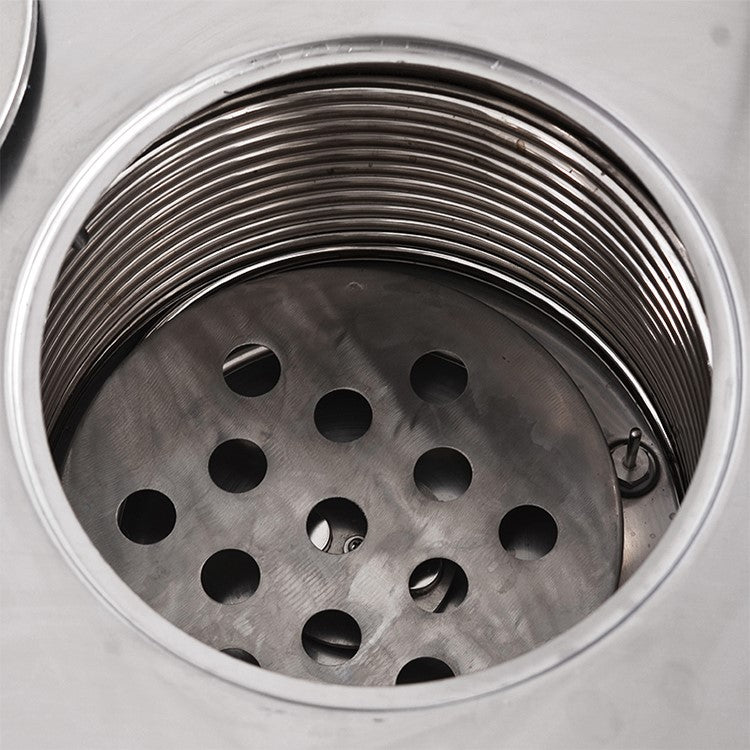

The system can also function as a low-temperature bath for viscosity testing or as a temperature control source for external laboratory equipment. A stainless steel tank ensures corrosion resistance and durability, while the optional dual-stage magnetic stirring system helps maintain uniform temperature distribution throughout the bath.

With built-in safety protections and optional PLC automation with programmable control, the unit delivers reliable and stable performance for demanding laboratory and research environments.

Available Models

Model	Tank Volume (L)	Heating Power (kW)	Total Power (kW)
DFY-5/30	5 L	1	1.75
DFY-10/30	10 L	2	3
DFY-20/30	20 L	3	4.5

Temperature Performance

Parameter	Specification
Temperature Range	-30 °C ~ 99 °C
Temperature Accuracy	±0.1 °C
Temperature Sensor	PT100

Cooling Capacity

Temperature	DFY-5/30	DFY-10/30	DFY-20/30
RT	875 W	2010 W	2800 W
0 °C	650 W	1650 W	2300 W
-30 °C	255 W	400 W	600 W

Electrical Specifications

Parameter	Specification
Voltage	220V / 50Hz or 60Hz
Phase	Single Phase

Tank Specifications

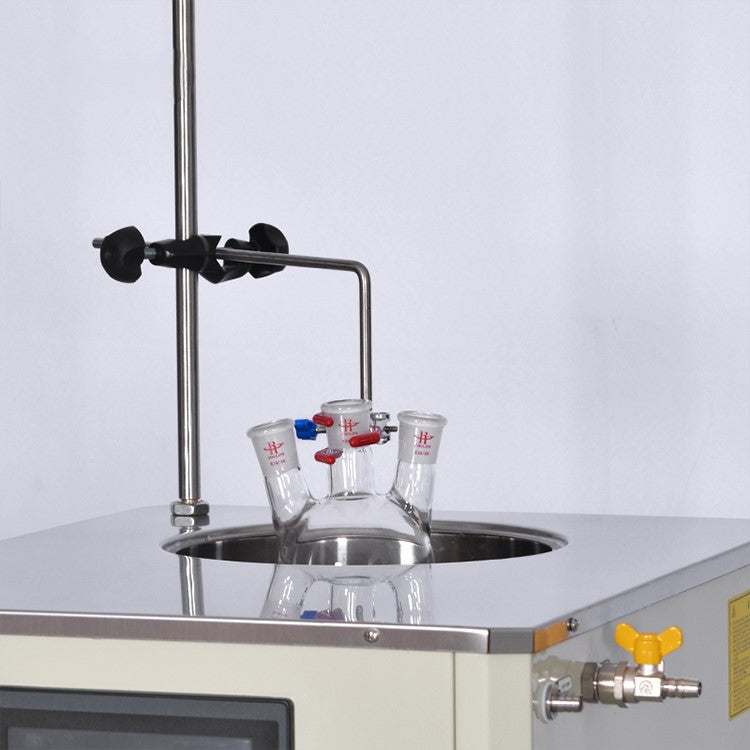

Model	Tank Size (mm)	Opening Size (mm)	Max Flask Volume
DFY-5/30	180 × 180	180	2 L
DFY-10/30	300 × 200	240	5 L
DFY-20/30	350 × 250	320	10 L

Compressor System

Parameter	DFY-5/30	DFY-10/30	DFY-20/30
Compressor Type	Rotor compressor
Brand	Secop	Tecumseh
Power	0.75 kW	1.125 kW	2.25 kW
Current	3.4 A	5 A	10 A
Horsepower	1 HP	1.5 HP	3 HP
Refrigerant	R404A

Circulating Pump

Parameter	Specification
Pump Power	100 W
Current	0.5 A
Rated Head	6 m
Rated Flow	10 L/min

Dimensions

Model	Dimensions (L × W × H mm)
DFY-5/30	477 × 344 × 683
DFY-10/30	540 × 424 × 776
DFY-20/30	590 × 478 × 840

Safety Protection

Overvoltage protection
Time delay protection
Overcurrent protection
Overheating protection
Leakage protection

Optional PLC Control System

Feature	Specification
PLC System	Siemens S7-200 Smart PLC
Programming	Up to 5 programs with 40 steps each
Control Mode	Automatic switching between material temperature and outlet temperature
Communication Protocol	Modbus RTU RS485 (optional RS232 / Ethernet)

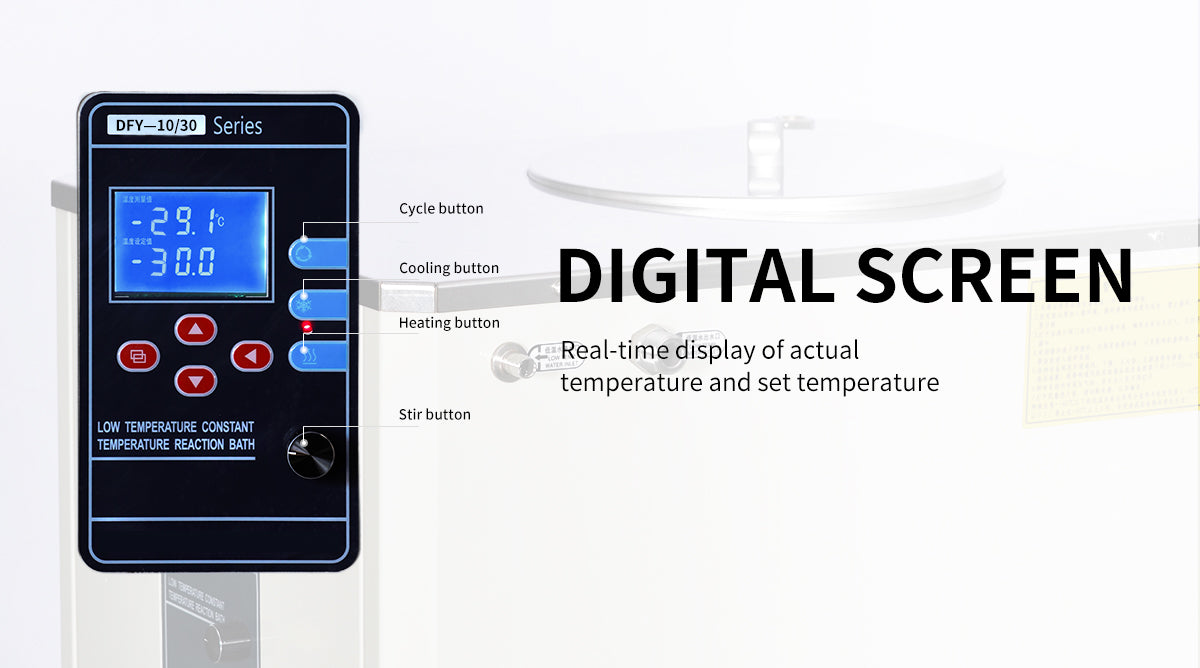

Control Panel	7-inch Siemens color touch screen (optional 10-inch)
Data Export	USB export of temperature data (TXT format)
