-30℃ non-sealed recirculating chiller (Copy)

-30℃ non-sealed recirculating chiller (Copy)

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

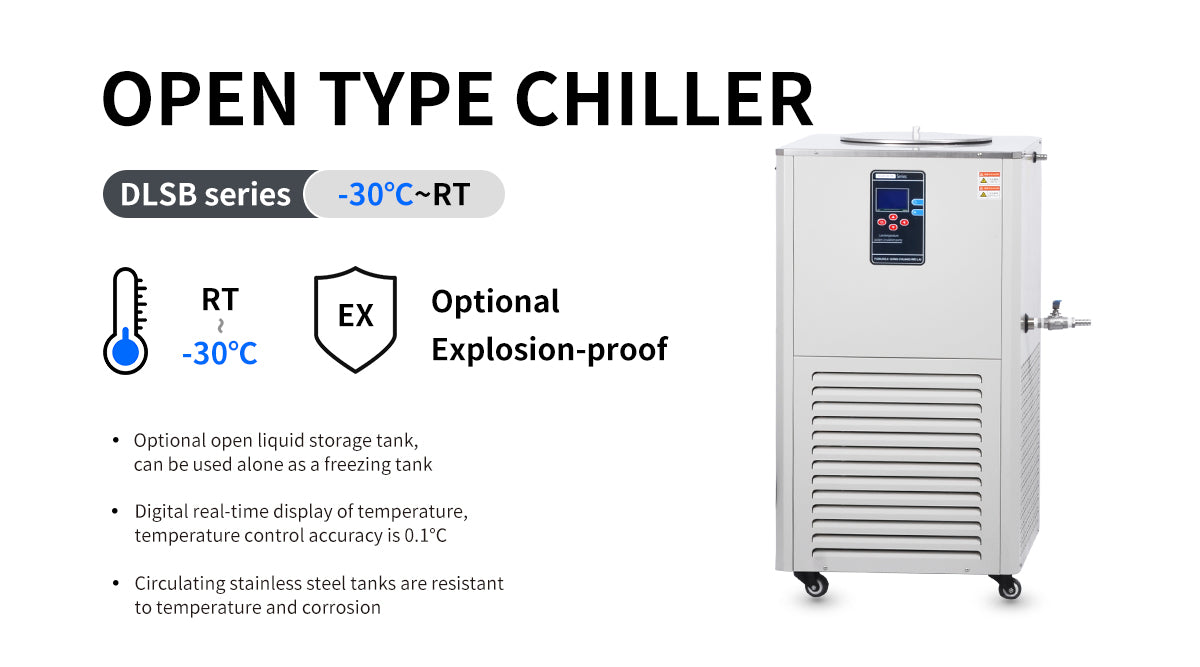

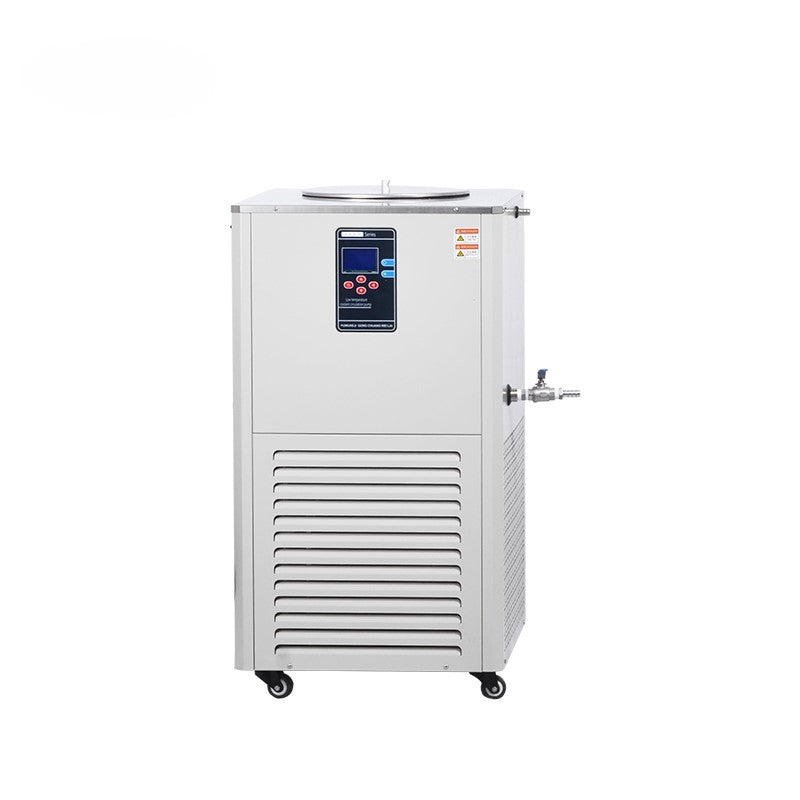

The -30 °C Non-Sealed Recirculating Chiller is an open-tank low-temperature circulation system designed to provide stable cooling for laboratory and pilot-scale applications. The unit creates a controlled low-temperature environment by circulating coolant such as water or glycol-based fluids through connected laboratory equipment.

With a temperature range down to -30 °C, the system provides reliable cooling for processes requiring continuous low-temperature circulation. The chiller uses a high-efficiency compressor, air-cooled condenser, and internally threaded copper evaporator to achieve efficient heat exchange and stable cooling performance.

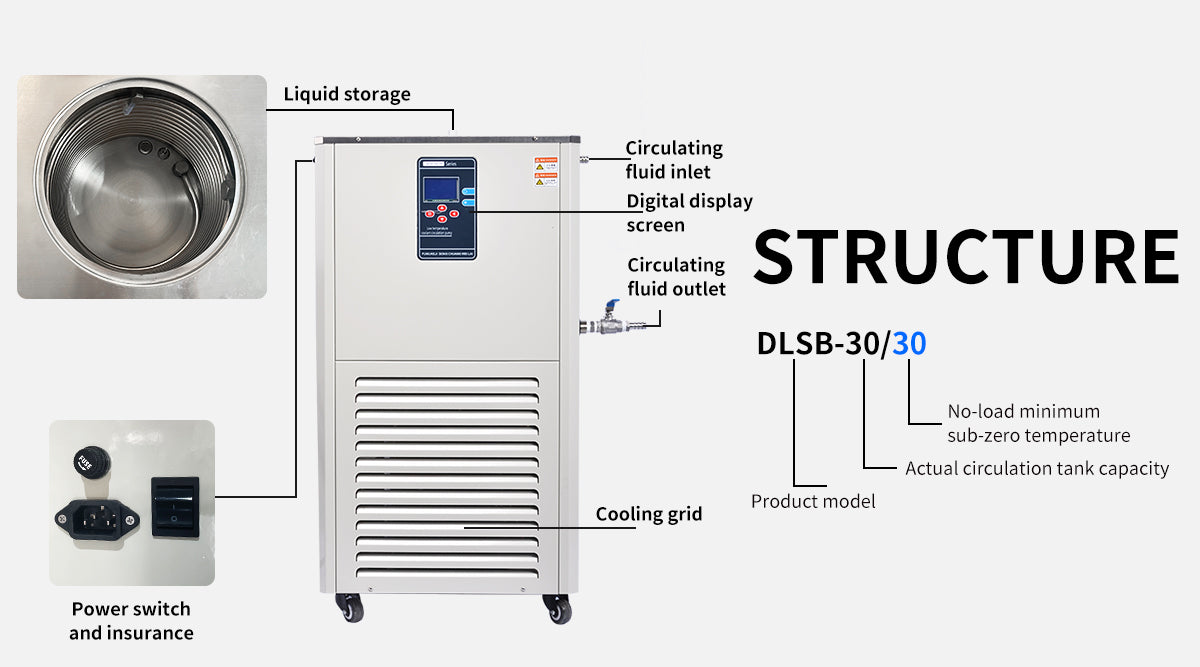

The open reservoir design allows convenient access to the coolant tank for monitoring, refilling, and maintenance. Equipped with PT100 temperature sensors and multiple safety protections, including overvoltage, overcurrent, overheating, and leakage protection, the system ensures safe and stable operation.

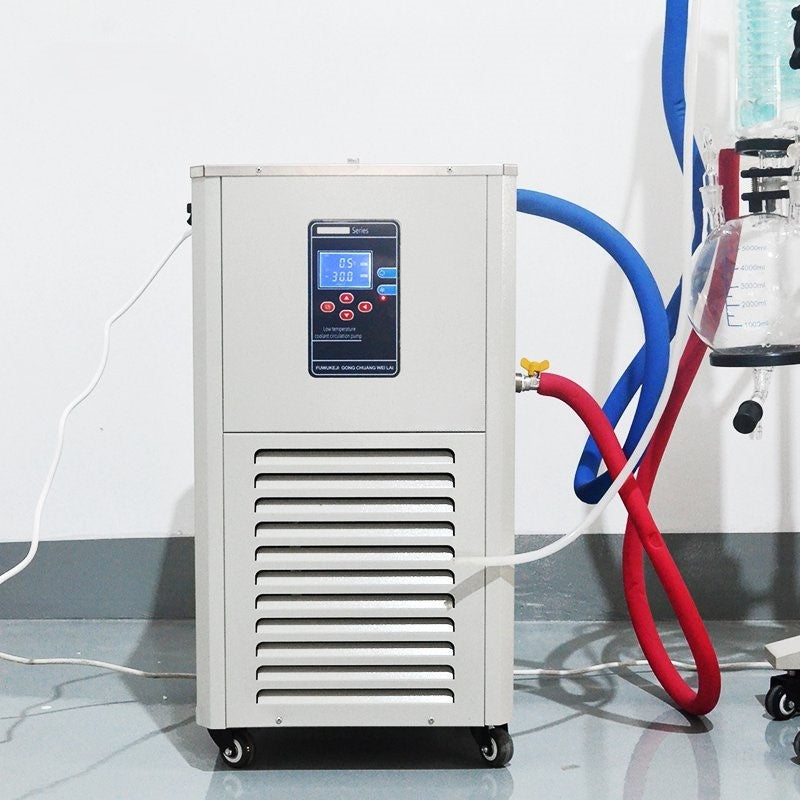

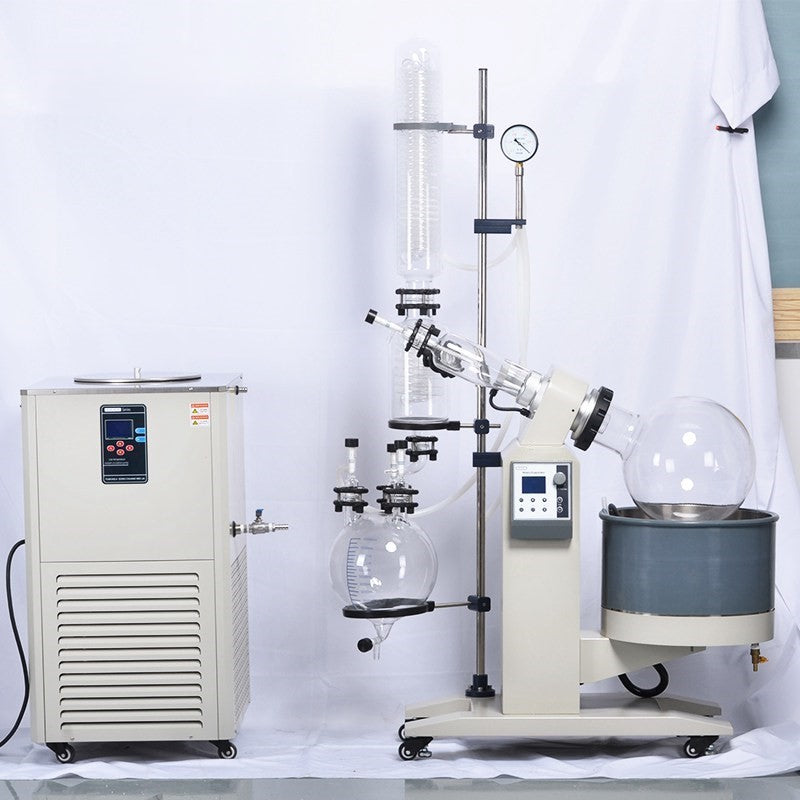

This non-sealed recirculating chiller is widely used with rotary evaporators, glass reactors, condensers, analytical instruments, and other laboratory equipment requiring dependable low-temperature cooling.

Models

Model DLSB-5/30 DLSB-10/30 DLSB-20/30 DLSB-30/30 DLSB-50/30 DLSB-100/30
Temperature Range -30 °C ~ RT (±1 °C)

Operating Conditions

Parameter Specification
Ambient Temperature ≤30 °C
Optimum Humidity ≤60%
Voltage 220 V (optional 110 V) / 380 V
Phase Single phase / Three phase
Frequency 50 Hz

Power

Model Power
DLSB-5/30 0.55 kW
DLSB-10/30 1 kW
DLSB-20/30 1.3 kW
DLSB-30/30 2.1 kW
DLSB-50/30 4 kW
DLSB-100/30 6 kW

Cooling Capacity

Temperature 5 10 20 30 50 100
RT (W) 875 2010 2800 4600 10500 15750
0 °C (W) 650 1650 2300 3500 9300 13250
-30 °C (W) 255 400 600 600 1100 1100

Refrigeration System

Parameter Specification
Compressor Type Closed
Compressor Brand Panasonic / Copeland / Tecumseh
Refrigerant R404A
Condenser Type Air cooling
Fan Type External rotor axial flow fan
Evaporator Internally threaded copper pipe

Tank & Circulation System

Model Tank Volume
DLSB-5/30 5 L
DLSB-10/30 10 L
DLSB-20/30 20 L
DLSB-30/30 30 L
DLSB-50/30 50 L
DLSB-100/30 100 L

Opening diameter: 180 – 320 mm

External circulation connections:

  • G1/2" internal thread → hose connector (11–16 mm)

  • G3/4" internal thread → hose connector (19 mm)

Circulating Pump

Parameter Specification
Pump Type Shield pump
Brand Shanghai Jingyi
Power 100 W / 280 W
Rated Head 6 m / 12 m
Flow Rate 25 L/min / 35 L/min

Dimensions & Weight

Model Length Width Height Weight
5 480 mm 350 mm 680 mm 42 kg
10 540 mm 420 mm 800 mm 57 kg
20 570 mm 490 mm 840 mm 71 kg
30 630 mm 530 mm 1000 mm 88 kg
50 730 mm 630 mm 1190 mm 140 kg
100 975 mm 760 mm 1330 mm 180 kg


Packing List

  • One valve

  • One roll of sealing tape

  • 3.6 m insulated silicone hose

  • Instruction manual


Notes

All specifications are measured under factory testing conditions. Actual performance may vary depending on operating environment and usage conditions.
