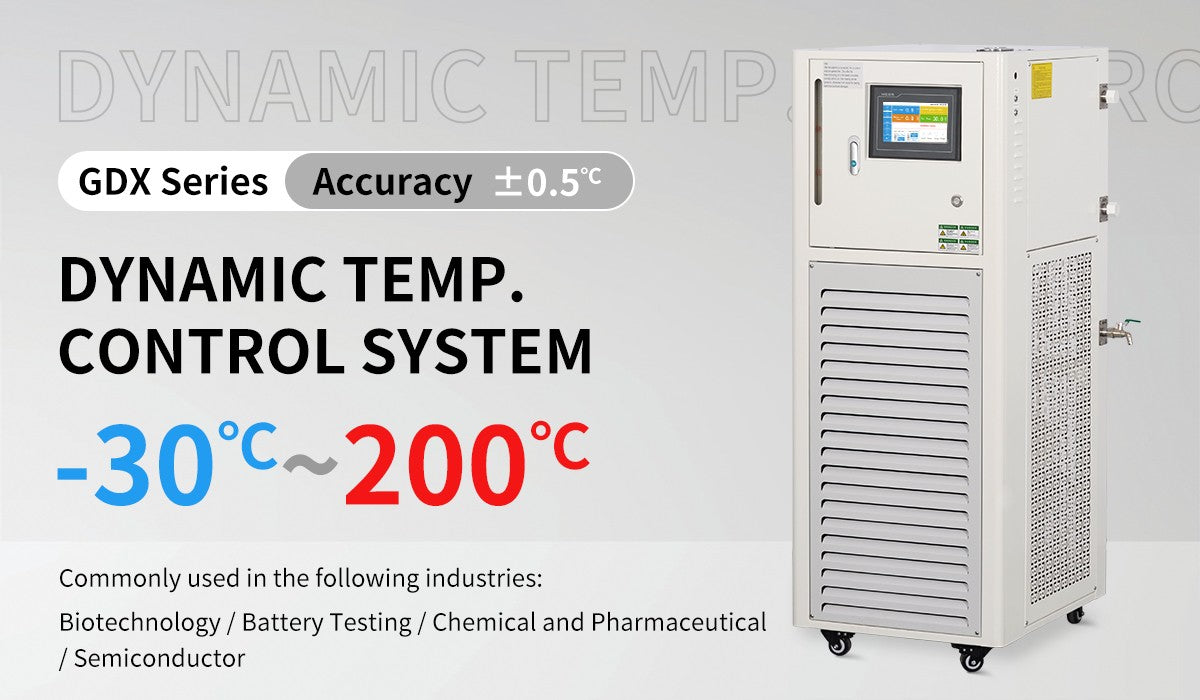

-30～200℃ Dynamic Temperature Control System
-30～200℃ Dynamic Temperature Control System
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

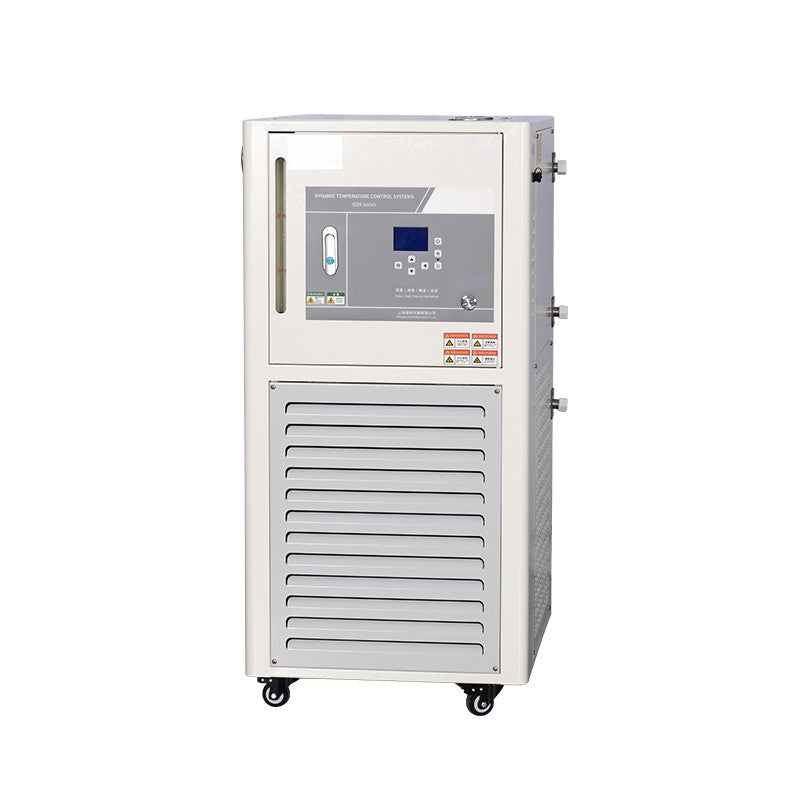

The -30°C to 200°C Dynamic Temperature Control System is an advanced heating and cooling circulator designed for precise temperature regulation in laboratory and industrial applications. The system integrates both refrigeration and heating functions, enabling stable dynamic temperature control across a wide operating range.
The system uses a fully closed liquid circulation loop, preventing oil mist generation and eliminating moisture absorption from the surrounding air. This design improves operational safety, enhances the lifespan of the heat transfer medium, and ensures reliable temperature stability during long-term operation.
Equipped with international-brand compressors and circulation pumps, the unit provides efficient thermal performance, fast temperature response, and dependable system reliability. Multiple safety features such as self-diagnosis, overload protection, high-pressure protection, thermal protection, and refrigerant monitoring ensure safe and stable operation.

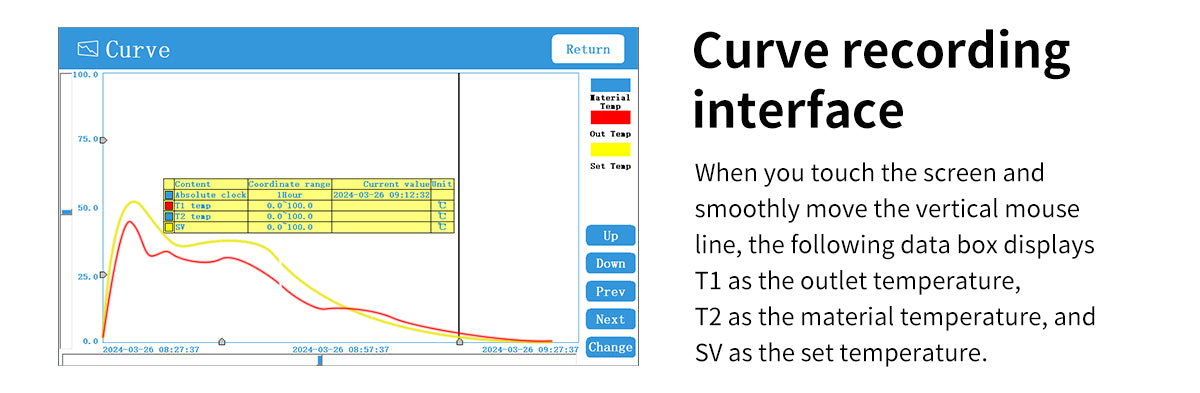

The system also includes programmable temperature control, real-time monitoring, and USB data export, making it suitable for research laboratories, pilot-scale production, and industrial process temperature control.
General Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -30°C ~ 200°C (Maximum 300°C) |
| Temperature Stability | ±0.5°C |
| Ambient Temperature | ≤ 30°C |
| Ambient Humidity | ≤ 60% |
| Voltage | 220V (single phase) / 380V (optional 3P 220V or 3P 480V) |
| Phase | 1 / 3 |
| Frequency | 50 / 60 Hz |
| Temperature Sensor | PT100 |
| Refrigerant | R404A |
| Condenser Type | Air cooling / water cooling |
| Evaporator | Plate heat exchanger |
| Circulating Pump | Shield pump / vortex pump |
| Control System | Microcontroller system (optional Siemens PLC) with PID adaptive temperature control |

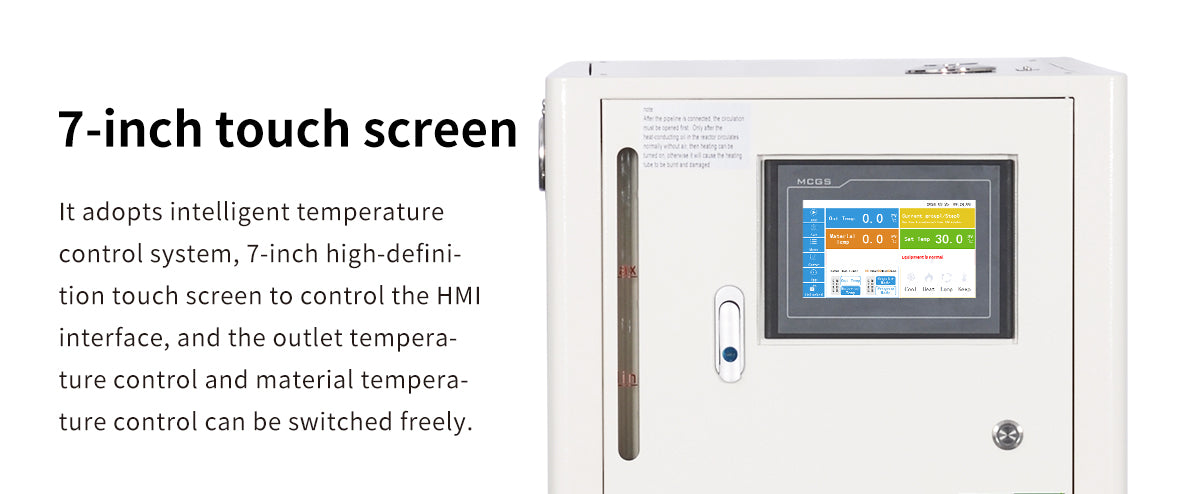

| Control Panel | 7-inch MCGS HD touch screen (optional Siemens screen) |

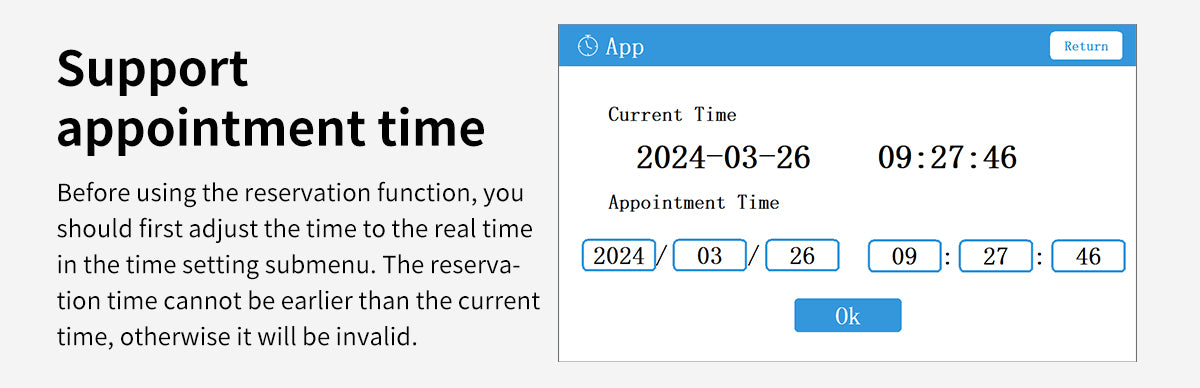

| Programming | Up to 5 programs with 40 steps each |

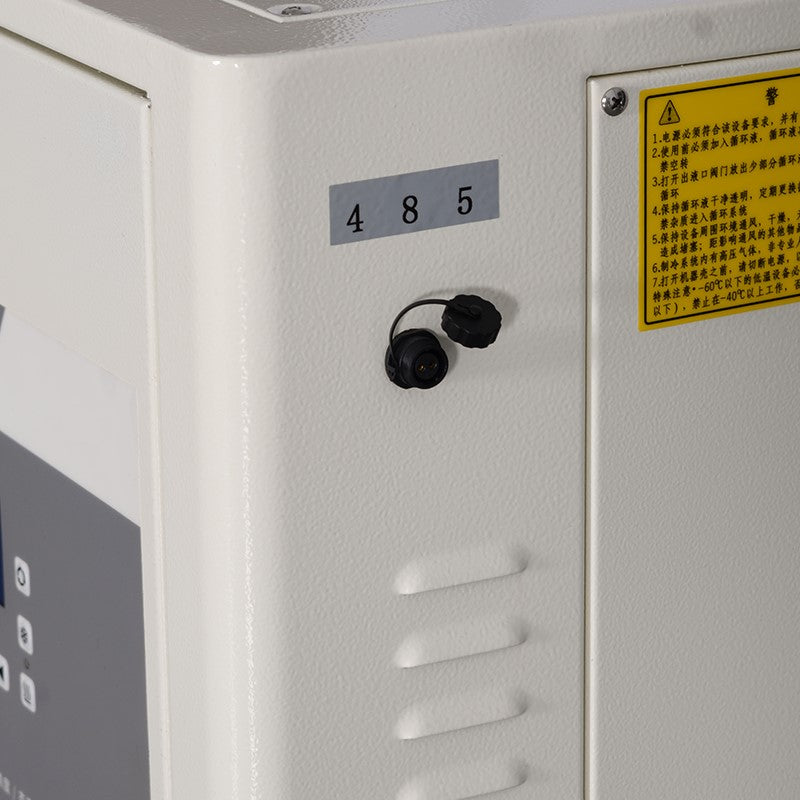

| Communication Protocol | Modbus RTU (RS485), optional RS232 or Ethernet |

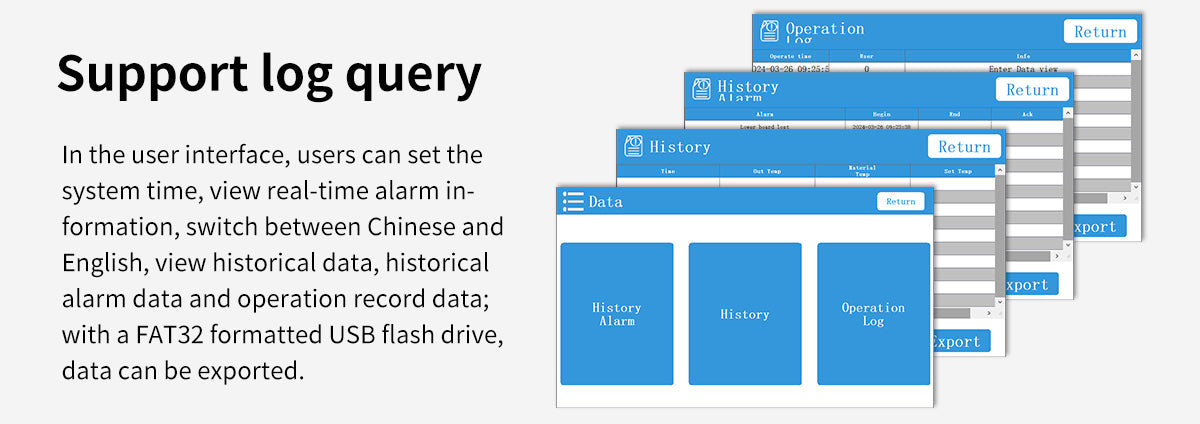

| Data Export | USB flash drive export (TXT temperature data) |
Model Specifications
| Model | GDX-302A | GDX-303A | GDX-306A | GDX-309A | GDX-312A | GDX-318A |
|---|---|---|---|---|---|---|
| Total Power (kW) | 3 | 4.5 | 9 | 13.5 | 17.5 | 26 |
| Heating Capacity (kW) | 2 | 3 | 6 | 9 | 12 | 18 |
| Cooling Capacity at RT (W) | 2000 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Cooling Capacity at 0°C (W) | 1400 | 1800 | 4500 | 6000 | 9000 | 12000 |
| Cooling Capacity at -30°C (W) | 500 | 700 | 2200 | 3500 | 4000 | 5000 |
Compressor Specifications
| Model | GDX-302A | GDX-303A | GDX-306A | GDX-309A | GDX-312A | GDX-318A |
|---|---|---|---|---|---|---|
| Compressor Type | Closed | |||||
| Compressor Brand | Panasonic / Tecumseh / Danfoss / Copeland | |||||
| Compressor Power (kW) | 0.75 | 1.125 | 2.25 | 3.75 | 4.5 | 6 |
| Horsepower (HP) | 1 | 1.5 | 3 | 5 | 6 | 8 |
| Quantity | 1 |
Circulation Pump Specifications
| Model | GDX-302A | GDX-303A | GDX-306A | GDX-309A | GDX-312A | GDX-318A |
|---|---|---|---|---|---|---|
| Pump Power (W) | 100 | 250 | 370 | 370 | 750 | 750 |
| Current (A) | 1 | 1 | 2.1 | 3.5 | 3.5 | 3.5 |
| Rated Lift (m) | 20 | 20 | 20 | 20 | 28 | 60 |
| Rated Flow (L/min) | 20 | 20 | 30 | 35 | 42 | 100 |
Tank & Connection Specifications
| Model | GDX-302A | GDX-303A | GDX-306A | GDX-309A | GDX-312A | GDX-318A |
|---|---|---|---|---|---|---|
| Tank Volume (L) | 7 | 7 | 17 | 17 | 35 | 100 |
| External Circulation Interface | G1/2" | G3/4" | G1" |
Dimensions & Weight
| Model | GDX-302A | GDX-303A | GDX-306A | GDX-309A | GDX-312A | GDX-318A |
|---|---|---|---|---|---|---|
| Weight (kg) | 60 | 90 | 130 | 170 | 220 | 340 |
| Packed Weight (kg) | 80 | 115 | 150 | 220 | 290 | 430 |
| Length (mm) | 530 | 530 | 530 | 530 | 610 | 1408 |
| Width (mm) | 640 | 640 | 640 | 640 | 710 | 958 |
| Height (mm) | 800 | 800 | 1000 | 1388 | 1388 | 1556 |
Safety & Protection
The system includes multiple built-in safety protections:
-
Phase loss protection
-
Overvoltage and overcurrent protection
-
Over-temperature protection
-
Refrigerant deficiency protection
-
System overheating protection
-
Leakage protection
-
Sensor failure alarms
Packing List
-
2 sets of adapter valves
-
2 stainless steel insulated hoses
-
Operation manual
Applications
-
Temperature control for glass reactors and chemical reactors
-
Chemical synthesis and laboratory research
-
Pharmaceutical and biotechnology processes
-
Distillation and extraction systems
-
Material science and polymer research
-
Pilot-scale and industrial process temperature control
