2L Rotary Evaporator
2L Rotary Evaporator
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

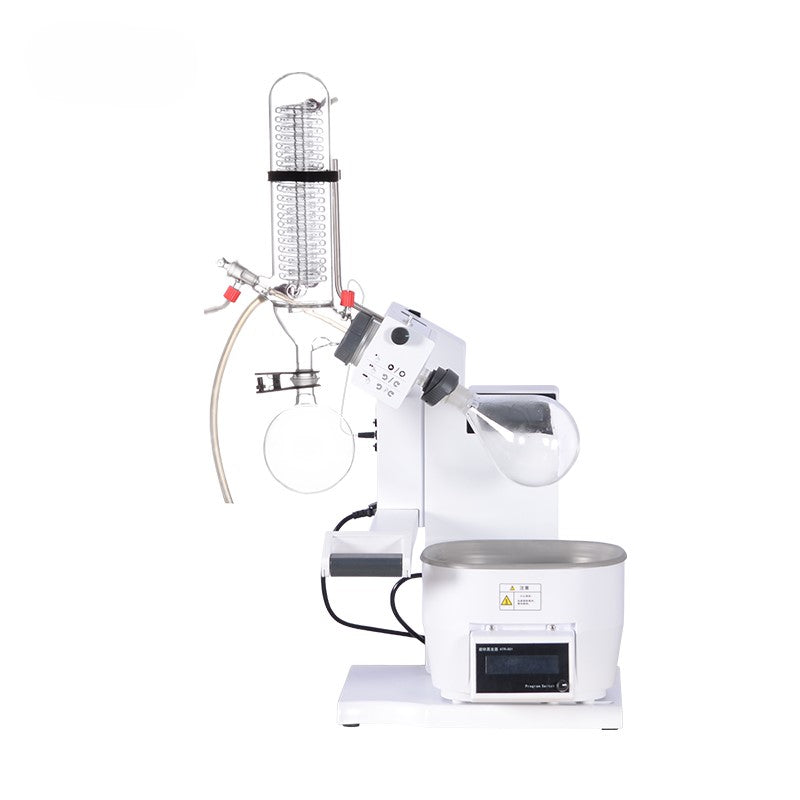

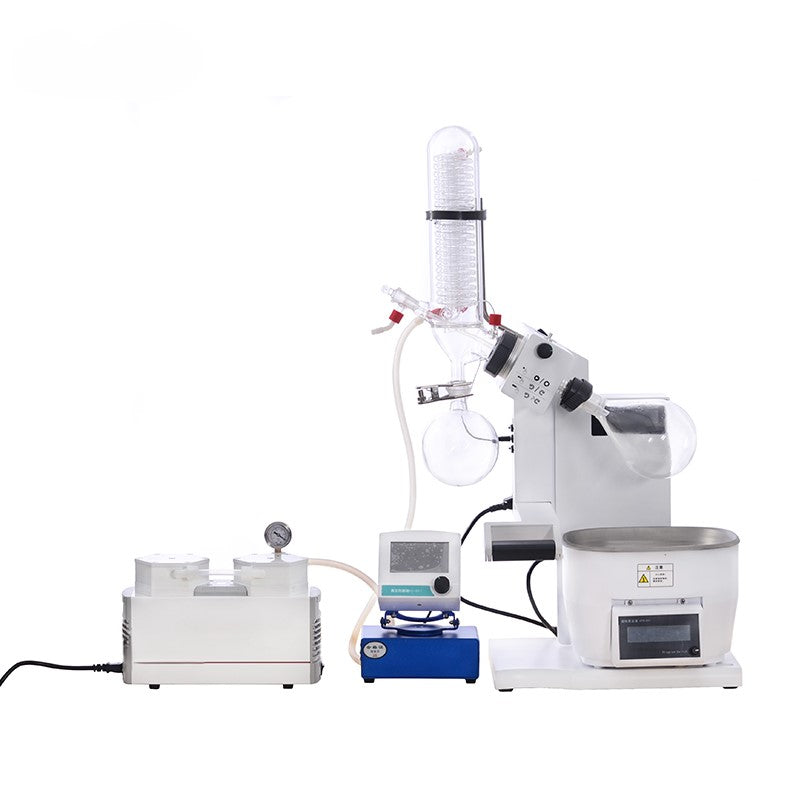

The 2L Rotary Evaporator (ATR-001) is a compact and high-precision laboratory evaporation system designed for solvent evaporation, concentration, and separation in research and industrial laboratories. Developed based on years of laboratory instrument manufacturing experience, this rotary evaporator features a stable heating system, excellent sealing performance, and a quiet operating design.

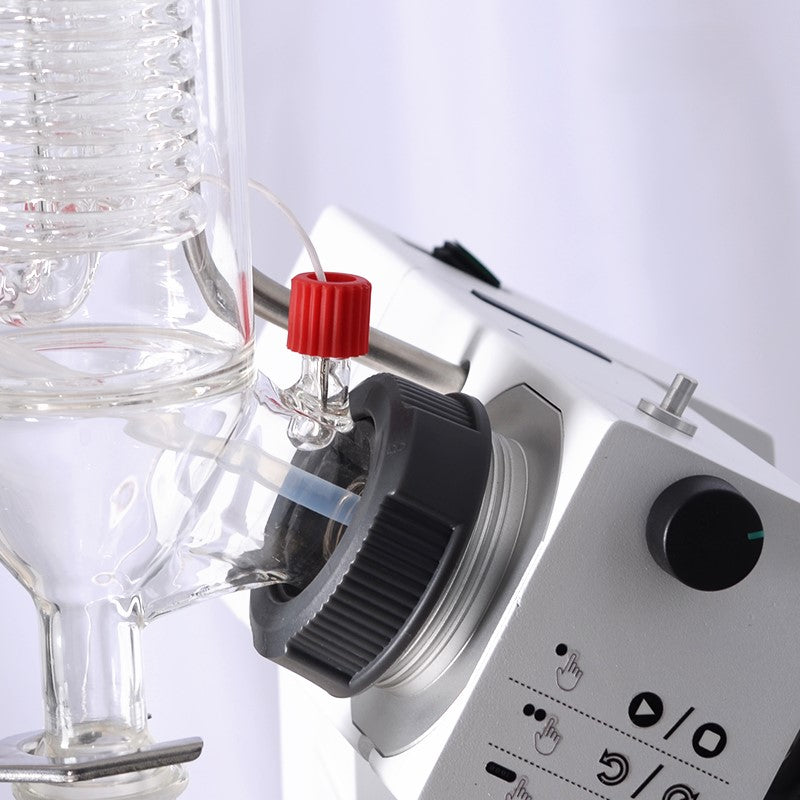

The system uses digital DC stepless speed control to provide smooth rotation of the evaporation flask, ensuring uniform thin-film formation for efficient solvent evaporation. The vertical double-serpentine condenser improves condensation efficiency and enhances solvent recovery performance.

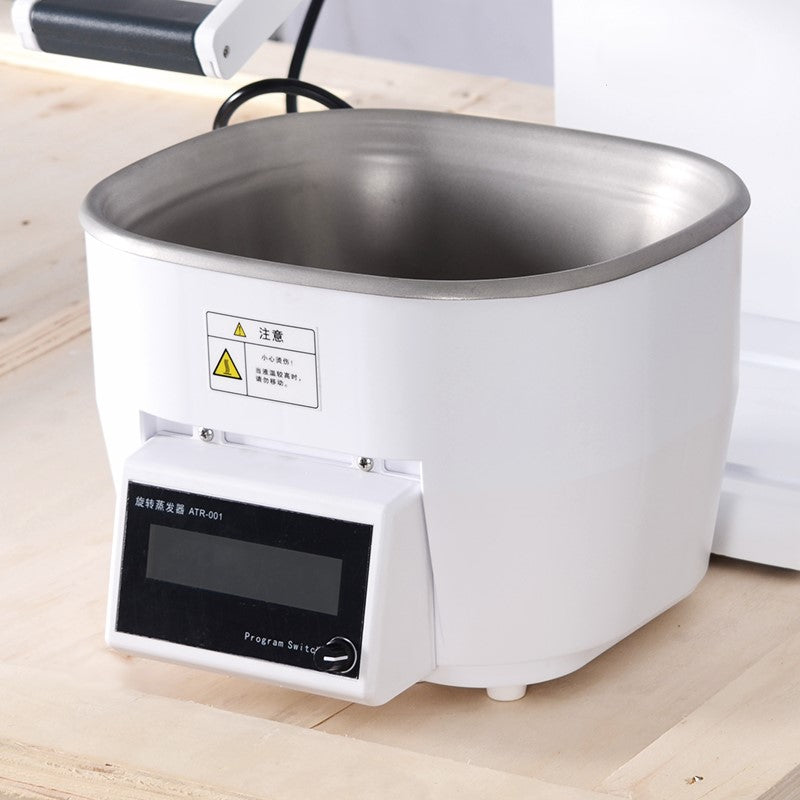

Constructed with a SUS304 stainless steel heating bath, the unit provides stable and uniform heating with accurate temperature control. The equipment also includes multiple safety protections, such as overcurrent protection, ground fault protection, over-temperature protection, and dry-heating protection to ensure safe laboratory operation.
This rotary evaporator is widely used in chemical laboratories, biopharmaceutical research, bioengineering, and academic research environments for solvent recovery, concentration, crystallization, and separation processes.
| Parameter | Specification |
|---|---|
| Model | ATR-001 |
| Temperature Control Range | 20 – 99 °C |
| Temperature Accuracy | ±1 °C |
| Control Screen | LCD Display |
| Heating Power | 1500 W |
| Total Power | 1800 W |
| Maximum Vacuum | 399.9 Pa (≤ 3 mmHg) |
| Pressure Rise Rate | ≤ 2 kPa/h |
| Rotary Motor Power | 100 W |
| Rotation Speed | 35 – 200 rpm |
| Speed Control | Digital DC stepless speed regulation |
| Condenser Type | Vertical double-serpentine condenser |
| Condensation Area | 0.15 m² |
| Rotary Flask | 2 L flange type (Ø43 mm) |
| Collection Flask | 2 L |
| Bath Material | SUS304 stainless steel |
| Bath Size | 280 × 260 × 130 mm |
| Bath Power | 4000 W |
| Lifting Mode | Electric lifting |
| Lifting Distance | 180 mm |
| Lifting Speed | 10 mm/s |
| Vacuum Seal | Teflon + fluorinated rubber double seal |
| Discharge Valve | PTFE |
| Evaporation Speed | Water: 2 L/h; Ethanol: 5.4 L/h |
| Safety Protection | Overcurrent, ground fault, over-temperature, dry heating protection |
| Operating Temperature | 5 – 35 °C |
| Ambient Humidity | ≤ 65% RH |
| Power Supply | Single phase 110V / 220V, 50 / 60 Hz |
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Product Dimensions | 650 × 420 × 900 mm |
| Product Weight | 20 kg |
| Packing Dimensions | 650 × 500 × 500 mm |
| Gross Weight | 30 kg |
Applications
-
Solvent evaporation and recovery
-
Chemical concentration processes
-
Crystallization and purification
-
Pharmaceutical and biotechnology research
-
Organic synthesis laboratories
-
Academic and industrial R&D laboratories
