20L Rotary Evaporator
20L Rotary Evaporator
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

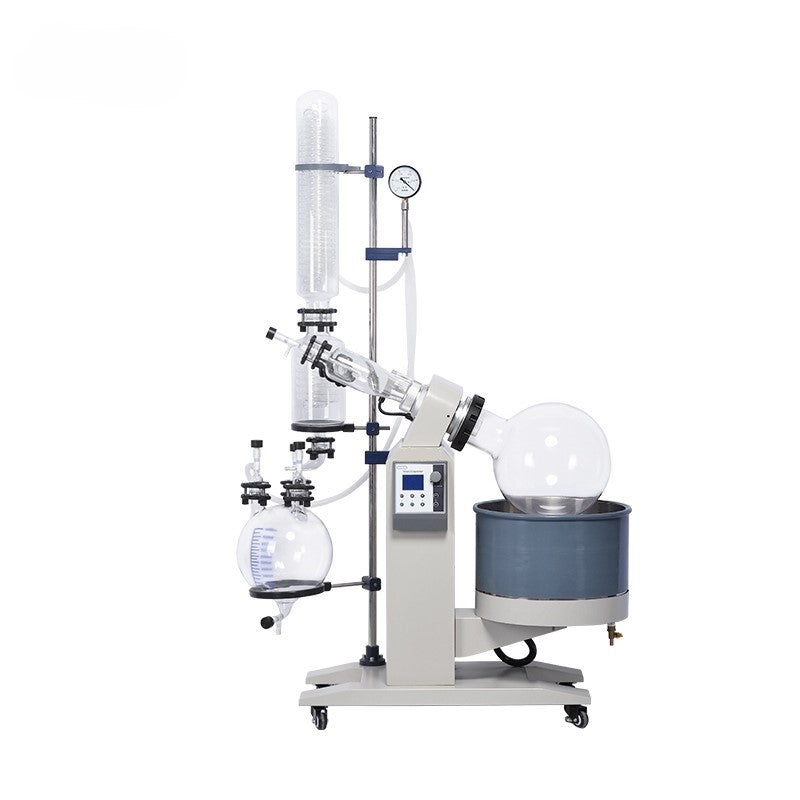

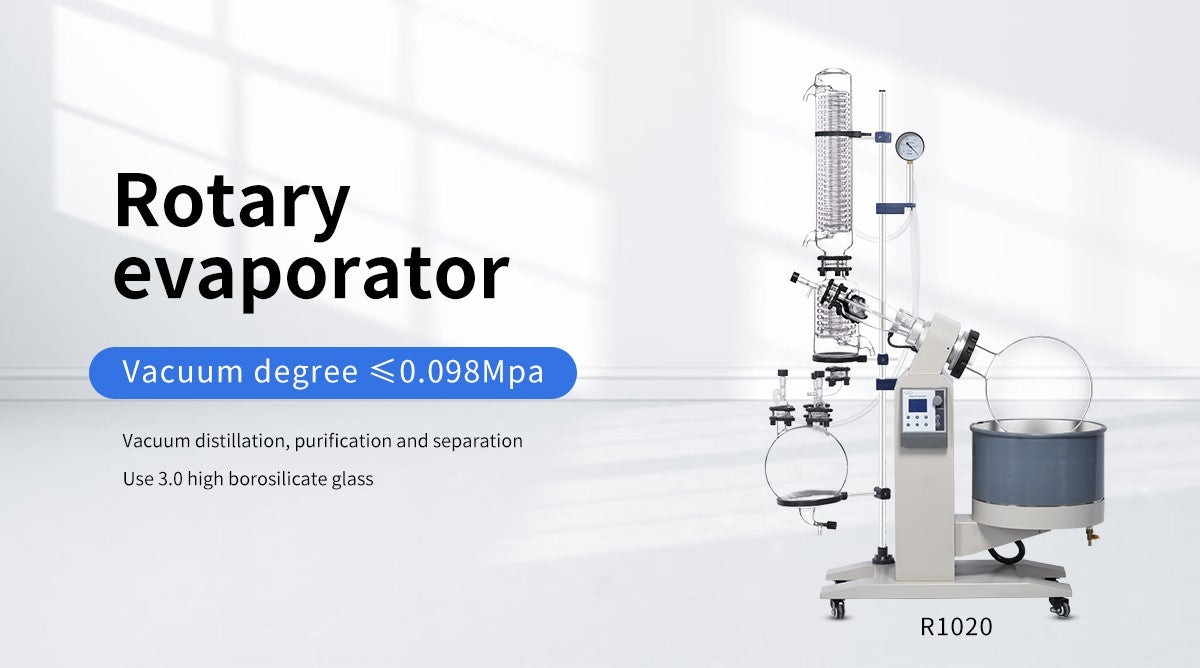

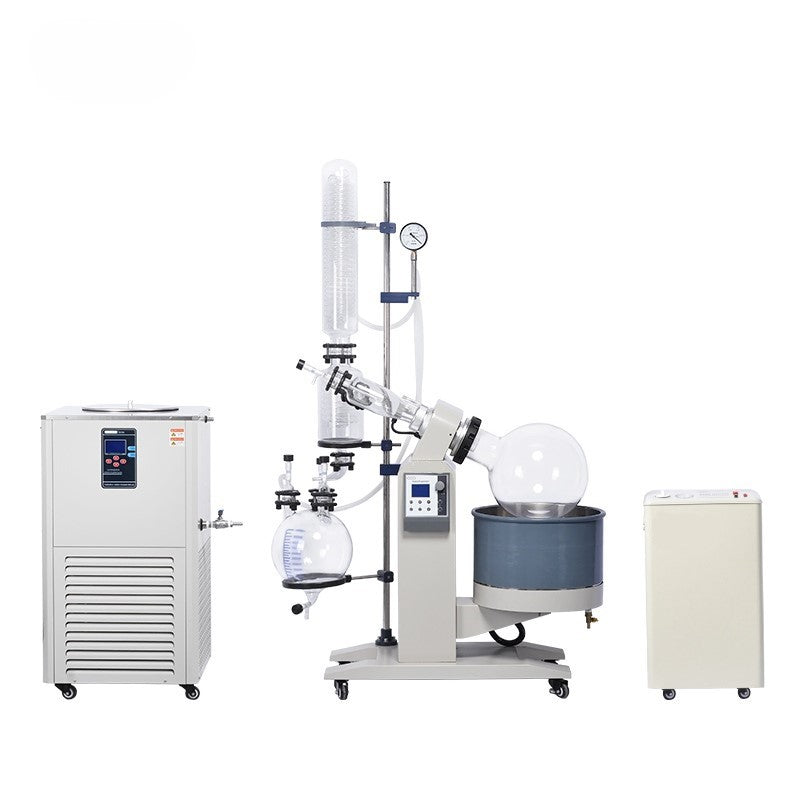

The 20L Rotary Evaporator (R1020) is a high-capacity laboratory evaporation system designed for efficient solvent evaporation, concentration, purification, and separation in chemical and pharmaceutical laboratories. The equipment offers precise temperature control, stable performance, and user-friendly operation, making it suitable for both research and pilot-scale applications.
The rotary evaporator operates under reduced pressure conditions, allowing continuous distillation of volatile solvents at lower temperatures. This process significantly improves evaporation efficiency and helps protect heat-sensitive materials. It is particularly effective for extract concentration, chromatographic separation, and solvent recovery.

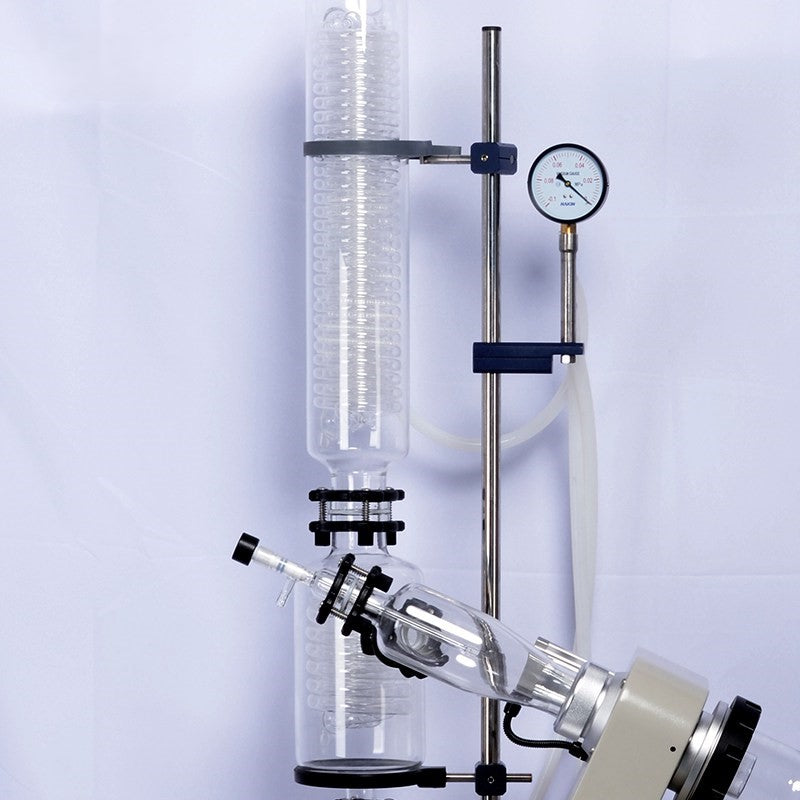

The system features digital DC stepless speed control, ensuring stable rotation of the evaporation flask to form a uniform thin liquid film for faster evaporation and improved heat transfer. A vertical triple condenser system (main condenser and auxiliary condenser) provides a large condensation area, enhancing solvent recovery efficiency.

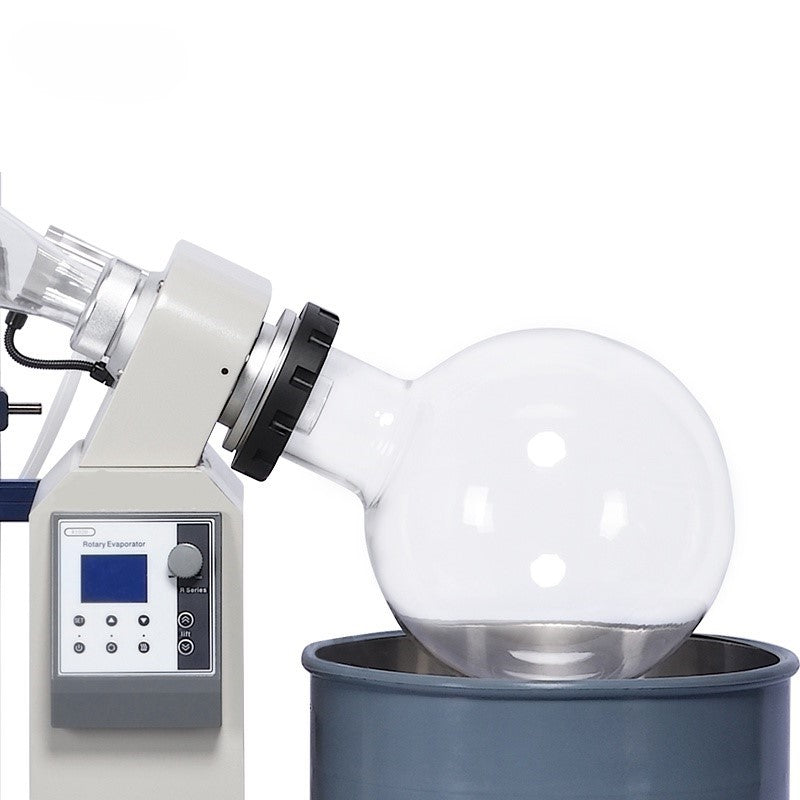

Constructed with a SUS304 stainless steel heating bath, the equipment ensures uniform heating and reliable temperature control. The electric lifting system allows convenient adjustment of the evaporation flask position during operation.
To ensure safe laboratory operation, the system includes multiple protection functions, including overcurrent protection, ground fault protection, over-temperature protection, and dry-heating protection.
| Parameter | Specification |
|---|---|
| Model | R1020 |
| Temperature Control Range | RT – 99 °C |
| Temperature Accuracy | ±1.5 °C |
| Control Screen | LCD Display |
| Heating Power | 4000 W |
| Total Power | 4300 W |
| Maximum Vacuum | 399.9 Pa (≤ 3 mmHg) |
| Pressure Rise Rate | ≤ 2 kPa/h |
| Rotary Motor | 250 W brushless motor |
| Rotation Speed | 0 – 120 rpm |
| Speed Control | Digital DC stepless speed regulation |
| Condenser Type | Vertical triple condenser (main condenser + auxiliary condenser) |
| Condensation Area | Main condenser: 0.8 m² / Auxiliary condenser: 0.39 m² |
| Rotary Flask | 20 L flange type (Ø125 mm) |
| Collection Flask | 10 L |
| Bath Material | SUS304 stainless steel |
| Bath Size | Ø450 × 260 mm |
| Bath Power | 4000 W |
| Lifting Mode | Electric lifting |
| Lifting Distance | 0 – 190 mm |
| Lifting Speed | 10 mm/s |
| Vacuum Seal | Teflon + fluorinated rubber double seal |
| Discharge Valve | PTFE |
Evaporation Performance
| Solvent | Evaporation Rate |
|---|---|
| Water | 5 L/h |
| Ethanol | 14.3 L/h |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 5 – 35 °C |
| Ambient Humidity | ≤ 65% RH |
| Power Supply | Three phase 220V / 380V, 50 / 60 Hz |
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Product Dimensions | 1250 × 600 × 2100 mm |
| Product Weight | 85 kg |
| Packing Dimensions | 1230 × 570 × 1200 mm |
| Gross Weight | 150 kg |
Applications
-
Solvent evaporation and recovery
-
Chemical concentration and purification
-
Extraction solution concentration
-
Chromatographic separation processes
-
Pharmaceutical and biotechnology research
-
Chemical and industrial R&D laboratories
