10L Rotary Evaporator
10L Rotary Evaporator
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

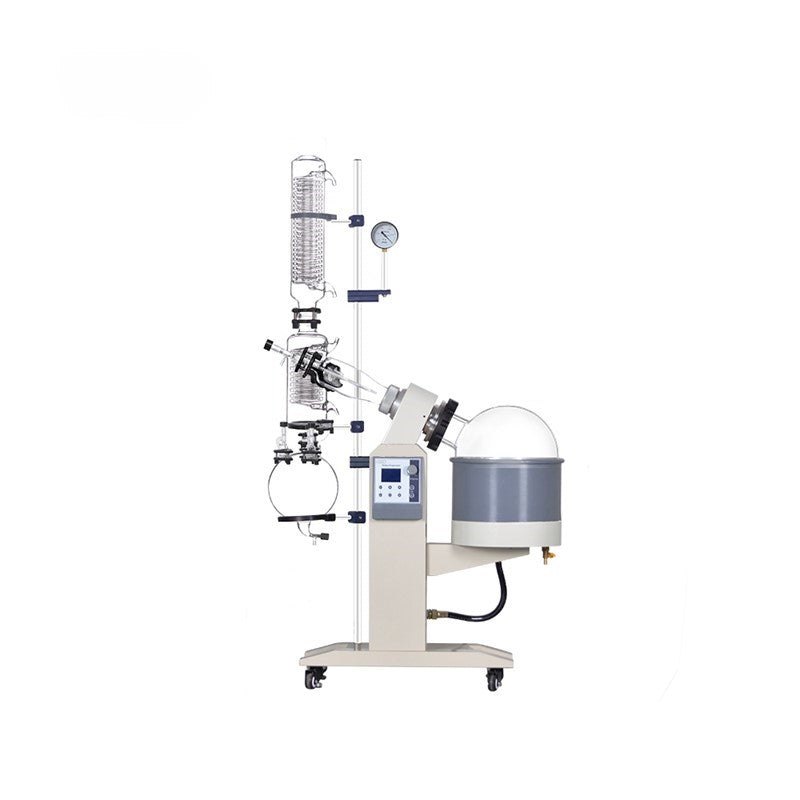

The 10L Rotary Evaporator (R1010) is a high-capacity laboratory evaporation system designed for efficient solvent evaporation, concentration, purification, and separation in modern laboratories. It is widely used for the continuous distillation of volatile solvents under reduced pressure, enabling efficient separation and recovery of experimental solvents.

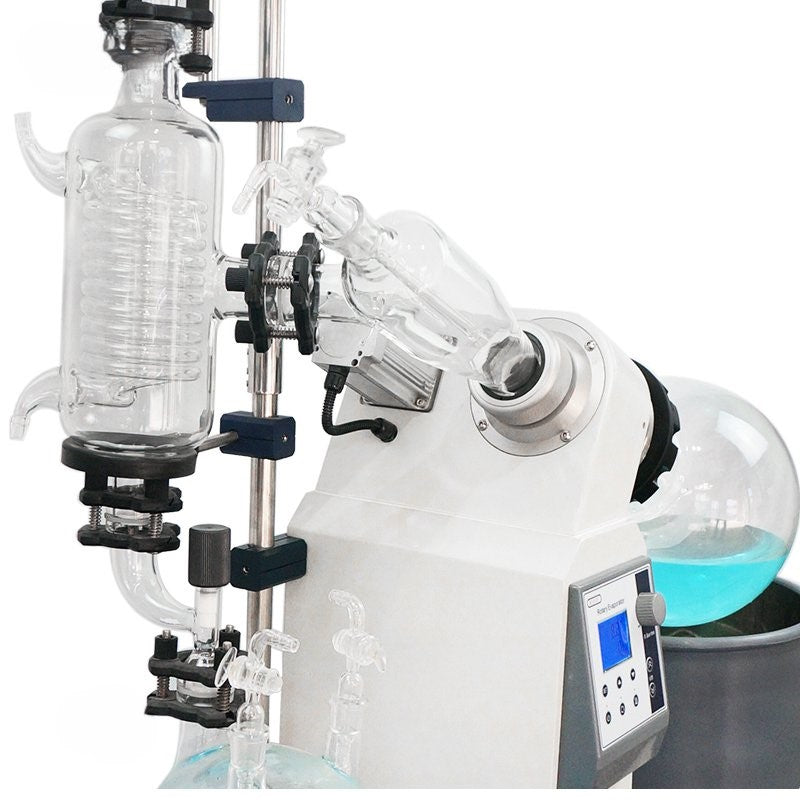

The system uses digital DC stepless speed control to maintain stable rotation of the evaporation flask, forming a uniform thin film for faster heat transfer and improved evaporation efficiency. The vertical triple condenser system (main condenser and auxiliary condenser) provides a large condensation area and significantly enhances solvent recovery efficiency.
The SUS304 stainless steel heating bath ensures stable and uniform heating with precise temperature control, while the electric lifting mechanism allows convenient adjustment of the evaporation flask during operation.
This rotary evaporator is particularly suitable for chemical analysis, solvent recovery, environmental testing, pharmaceutical research, and extraction experiments, including applications such as polycyclic aromatic hydrocarbons (PAHs) extraction from water samples.
Multiple safety protections including overcurrent protection, ground fault protection, over-temperature protection, and dry heating protection ensure reliable and safe operation in laboratory environments.
| Parameter | Specification |
|---|---|
| Model | R1010 |
| Temperature Control Range | RT – 99 °C |
| Temperature Accuracy | ±1.5 °C |
| Control Screen | LCD Display |
| Heating Power | 3000 W |
| Total Power | 3300 W |
| Maximum Vacuum | 399.9 Pa (≤ 3 mmHg) |
| Pressure Rise Rate | ≤ 2 kPa/h |
| Rotary Motor Power | 100 W |
| Rotation Speed | 0 – 120 rpm |
| Speed Control | Digital DC stepless speed regulation |
| Condenser Type | Vertical triple condenser (main condenser + auxiliary condenser) |
| Condensation Area | Main condenser: 0.42 m² / Auxiliary condenser: 0.22 m² |
| Rotary Flask | 10 L flange type (Ø125 mm) |
| Collection Flask | 5 L |
| Bath Material | SUS304 stainless steel |
| Bath Size | Ø350 × 220 mm |
| Bath Power | 4000 W |
| Lifting Mode | Electric lifting |
| Lifting Distance | 0 – 160 mm |
| Lifting Speed | 10 mm/s |
| Vacuum Seal | Teflon + fluorinated rubber double seal |

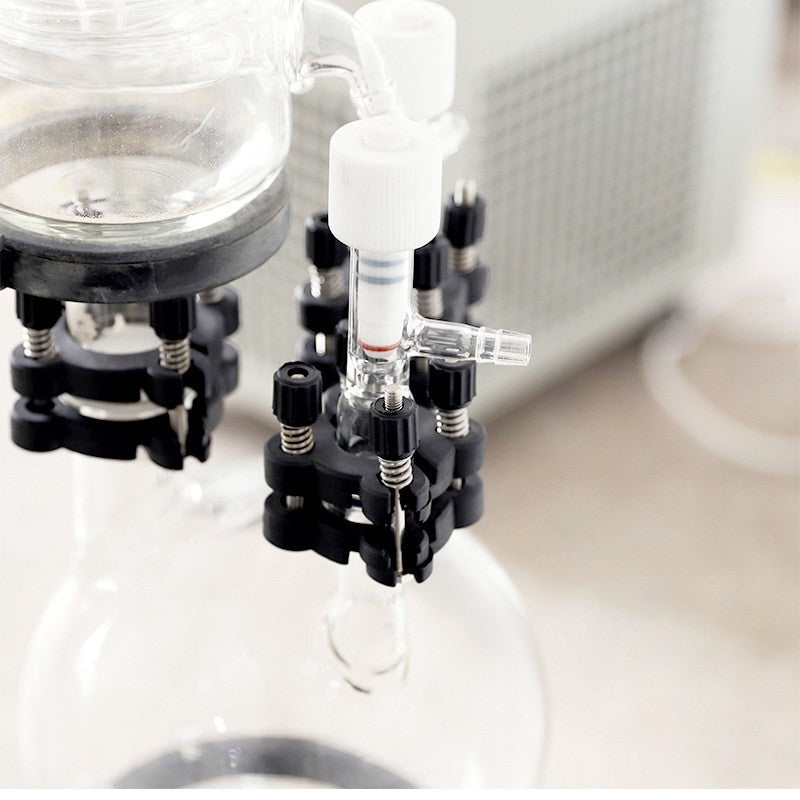

| Discharge Valve | PTFE |
Evaporation Performance
| Solvent | Evaporation Rate |
|---|---|
| Water | 3.2 L/h |
| Ethanol | 8.6 L/h |
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | 5 – 35 °C |
| Ambient Humidity | ≤ 65% RH |
| Power Supply | Single phase 110V / 220V, 50 / 60 Hz |
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Product Dimensions | 920 × 550 × 1700 mm |
| Product Weight | 68 kg |
| Packing Dimensions | 1020 × 520 × 1220 mm |
| Gross Weight | 120 kg |
Applications
-
Solvent evaporation and recovery
-
Chemical concentration and purification
-
Environmental sample extraction (PAHs testing)
-
Pharmaceutical and biotechnology research
-
Organic synthesis laboratories
-
Chemical and industrial R&D applications
