Home / Acoustic Solutions / Stone Wool Acoustic Ceiling Panels
Stone Wool Acoustic Ceiling Panels
06 Stone Wool Ceiling
Acoustic & Ceiling Solutions
Stone Wool Acoustic Ceiling System

Stone Wool Acoustic
Ceiling Panels

High-density stone wool acoustic ceiling panels with decorative fiberglass tissue facing and configurable edge and surface options.

NRC 0.8–0.9 / 0.9–1.0
Fire-Resistant Class A
Humidity RH up to 95% at 40°C
Density Options 120 / 140 / 180 kg/m³
Design

White spray / white paint / black spray / colorful as demanded.

Request Project Pricing ↗ Technical Specifications ↓
Multiple Edge Options Multiple Surface Finishes Custom Sizes
Technical Specifications

Stone Wool Acoustic Panels
Technical Specifications

Technical values from the supplied Stone Wool Acoustic Panels technical data sheet.

06 Product Data
Main Material
Torrefaction compounded high density stone wool
Face
Special painted laminated with decorative fiberglass tissue
Design
White spray/white paint/black spray/colorful as demanded
Fire-Resistant
CLASS A, tested by SGS (EN13501-1:2007+A1:2009)
CLASS A, tested by national authoritative departments (GB 8624-2012)
NRC
0.8-0.9 tested by SGS (ENISO354:2003, ENISO11654:1997)
0.9-1.0 tested by national authoritative departments (GB/T20247-2006/ISO354:2003)
Thermal-Resistant
≥0.4 (㎡·k)/w
Humidity
Dimensionally stable with RH up to 95% at 40°C.
No sagging, warping or delaminating
Moisture Rate
≤1%
Environmental Impact
Tiles and packings are fully recyclable
Safety
Limit of radionuclides in building materials
Specific activity of 226Ra, 232Th, 40K ≤1.3
Internal exposure index: Iγ ≤1.0
External exposure index: I ≤1.3
Certificates
SGS, ISO9001:2008, CE
Normal Size
600×600 / 600×1200mm
Other size to order
Width ≤1200mm, Length ≤2700mm
Normal Density
120kg/m³, 140kg/m³, 180kg/m³, special density can be supplied
Performance

Acoustic, fire and environmental performance.

The source provides two NRC results from different cited test methods. They are shown separately rather than converted into a single rating.

01 NRC · SGS 0.8–0.9

ENISO354:2003 / ENISO11654:1997

02 NRC · National Test 0.9–1.0

GB/T20247-2006 / ISO354:2003

03 Fire Resistance Class A

SGS and national-authority test references shown in the source.

04 Humidity RH up to 95%

Dimensionally stable at 40°C.

Edge Pattern

Three documented edge options.

The supplied product sheet identifies Conceal edge, Regular edge and Square edge configurations.

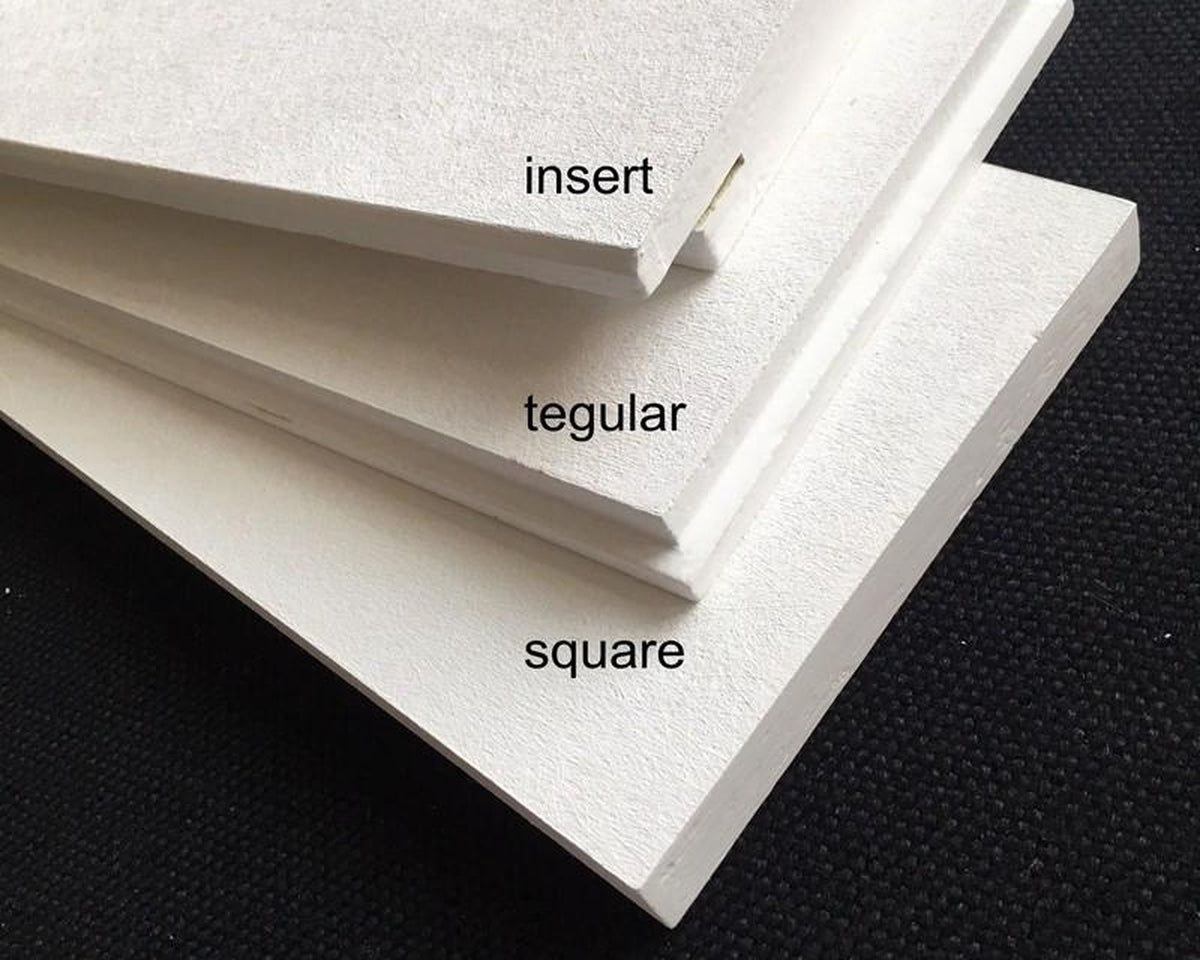

Stone wool acoustic ceiling edge options
01 Conceal Edge
02 Regular Edge
03 Square Edge
Size & Density

Standard formats with project-specific options.

Standard Size 01 600 × 600 mm
Standard Size 02 600 × 1200 mm
Maximum Ordered Size Width ≤1200 mm
Length ≤2700 mm

Other sizes to order.

Density Options 120 / 140 / 180 kg/m³

Special density can be supplied.

Surface Pattern

Five documented finish options.

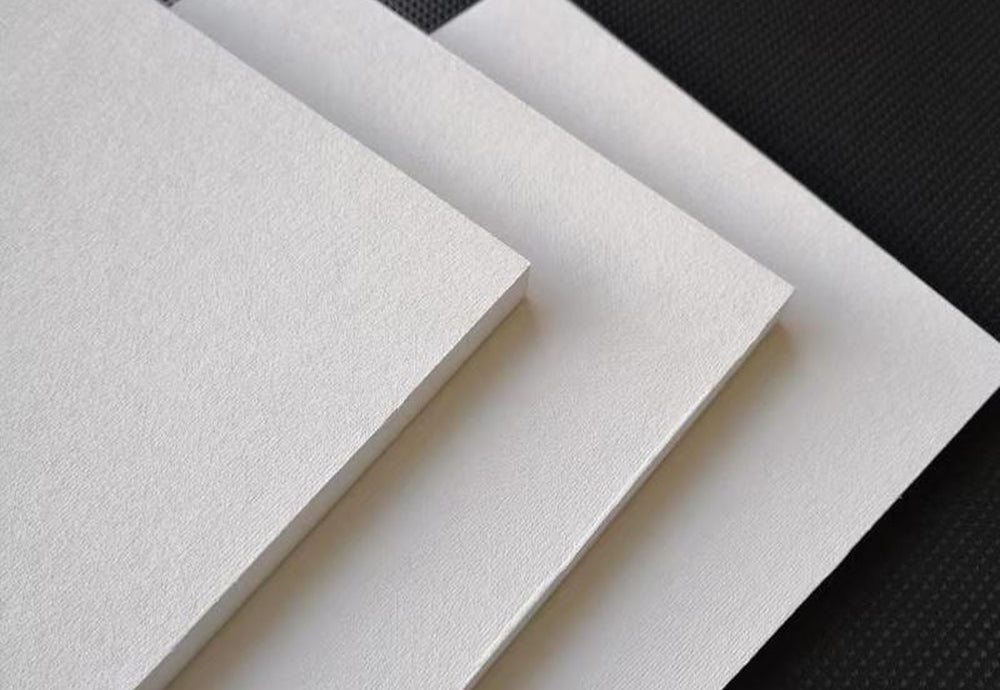

White spray stone wool acoustic panel
01 White Spray

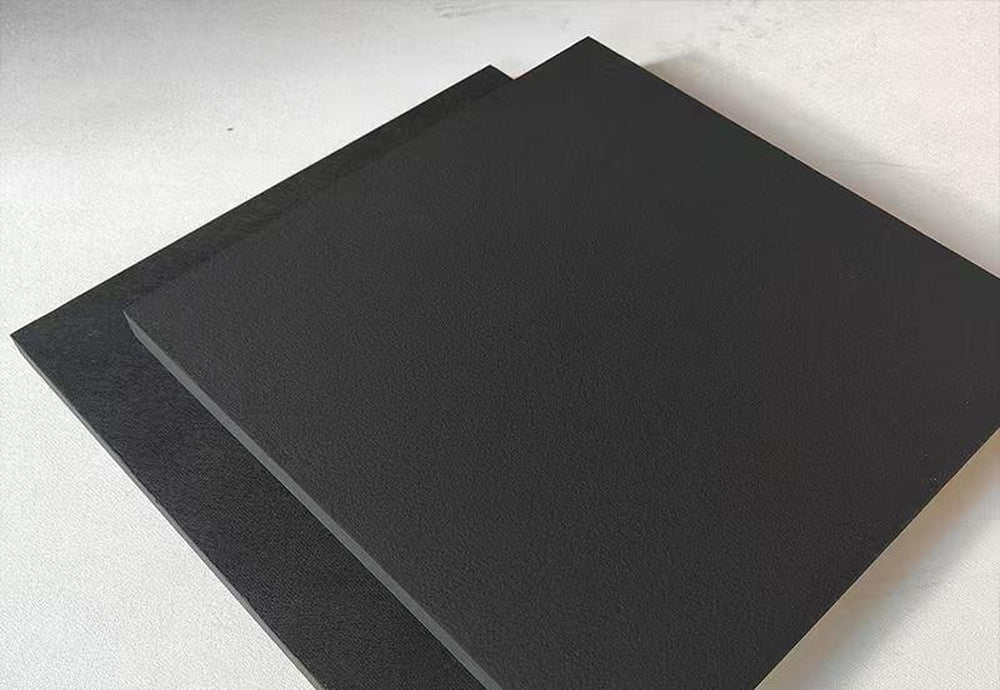

Black spray stone wool acoustic panel
02 Black Spray

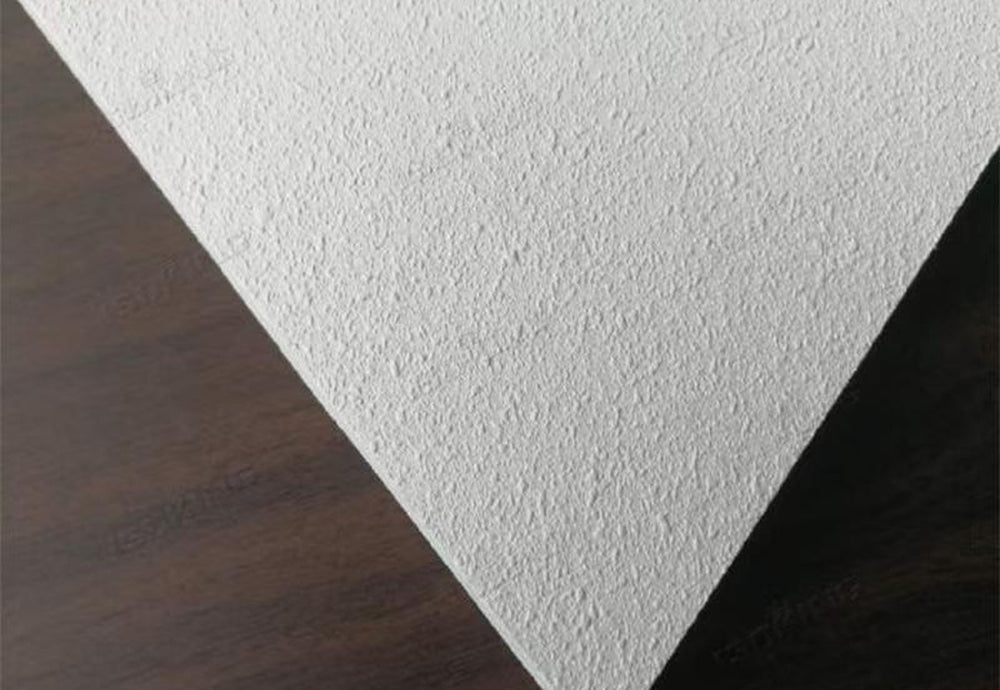

White paint 600 stone wool acoustic panel
03 White Paint #600

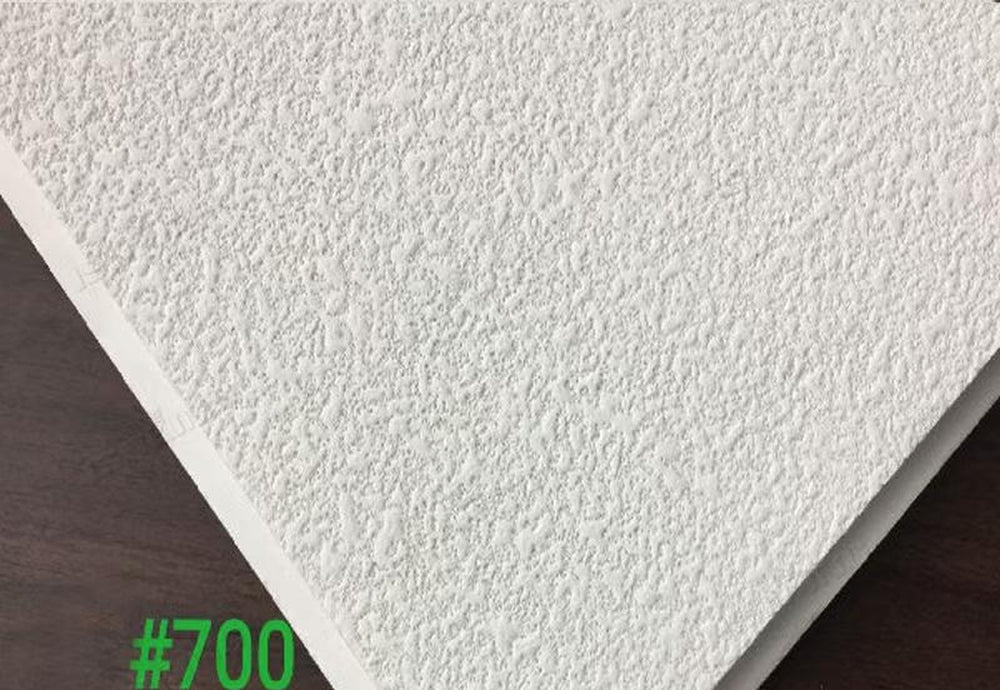

White paint 700 stone wool acoustic panel
04 White Paint #700
05 · Surface Pattern Customized Pattern

MOQ: 2500 square meters.

Certificates SGS · ISO9001:2008 · CE
Moisture Rate ≤1%
Environmental Tiles and packings are fully recyclable
Thermal Resistance ≥0.4 (㎡·k)/w
Safety Radionuclide limits documented in source data
