Rock Wool
Rock Wool External Wall Panel
with Polyurethane Sealing Sides
Supplier source names: Rock wool seamless external wall panel with polyurethane sealing sides / Rock wool seamed external wall panel with polyurethane sealing sides
Available configurations: Seamless / Seamed
Rock wool external wall panel family with polyurethane sealing sides documented by the supplier, including seamless and seamed configurations. The technical references below reproduce the supplier's listed panel thicknesses, recommended steel sheet thickness, listed flammability class, core density, thermal conductivity, sound-insulation reference, material stability, surface forms and colors.
Panel Thickness
50–150 mm
Steel Sheet
0.4–0.8 mm
Listed Class
Level A
Core Density
120–150kg/m³
Thickness Options
Documented panel thicknesses.
The supplier sheet lists the following nominal panel thickness options for this rock wool partition wall panel.
0150 mm
0275 mm
0380 mm
04100 mm
05120 mm
06150 mm
Surface Ripple Form
Three documented surface forms.
Surface names below reproduce the supplier sheet terminology.
corrugated
Wide ripple
Technical Specifications
Supplier reference data.
These values reproduce the supplier catalog for this configuration. The supplier table uses the label “Flammability class of PUR” while listing “Level A” on this rock wool product; the table below preserves that source wording instead of silently changing it.
Primary productRock wool seamless external wall panel with polyurethane sealing sides
Documented optionRock wool seamed external wall panel with polyurethane sealing sides
Panel thickness50 / 75 / 80 / 100 / 120 / 150 mm
Recommend thickness of steel sheets0.4~0.8mm
Flammability class of PURLevel A
Density of core120~150kg/m³
Thermal Conductivity≤0.042W/(m.k)
Noise reduction performanceAverage Sound insulation ≥37dB(50mm)
Material stabilityThe chemical stability is incomparable compared with organic material
Surface ripple formglaze surface / corrugated / Wide ripple
Standing colorWhite, gray, silver, blue, red, orange etc., customization
Color Options
Supplier-listed colors.
Custom options.
The supplier lists White, gray, silver, blue, red and orange, with customization available for project requirements.
Standard Colors
White · Gray · Silver · Blue · Red · Orange
Custom Colors
Customization available
Supplier Reference
White / gray / silver / blue / red / orange · customization available.
Color visuals are website references only. Final color, coating and finish availability should be confirmed for the selected project and quantity.

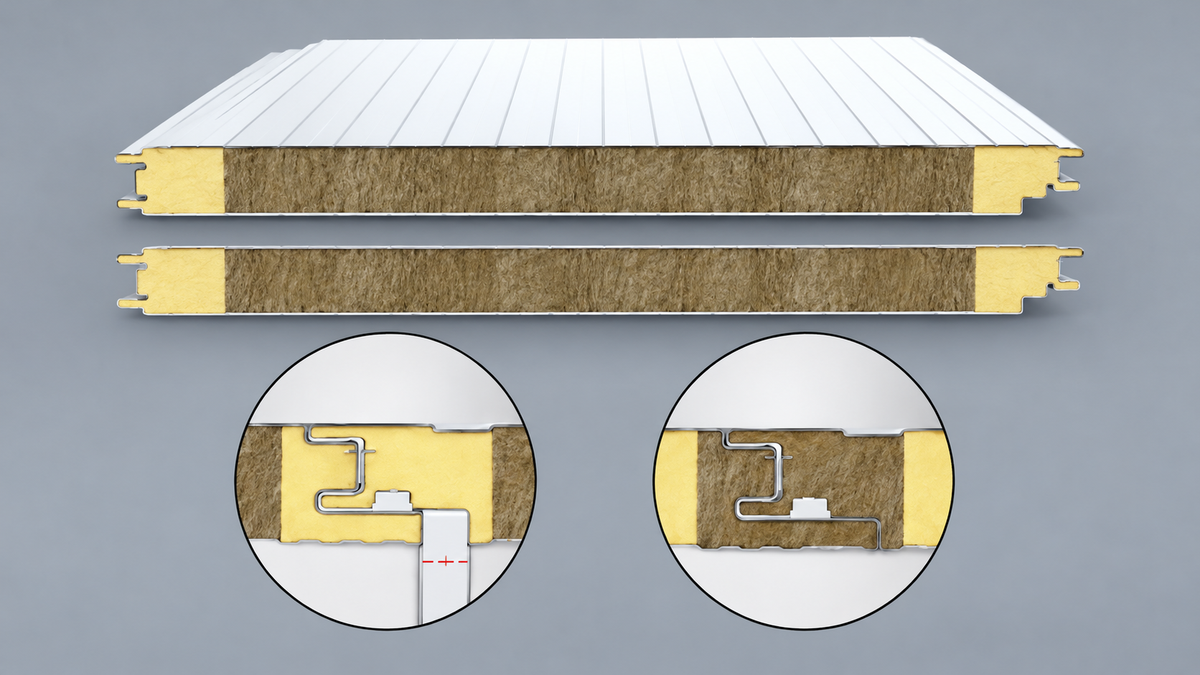

Panel Joint References
Seamless and seamed configurations.
The supplier page documents both seamless and seamed external wall panel configurations with polyurethane sealing sides. Keep both joint references visible on this page.
01

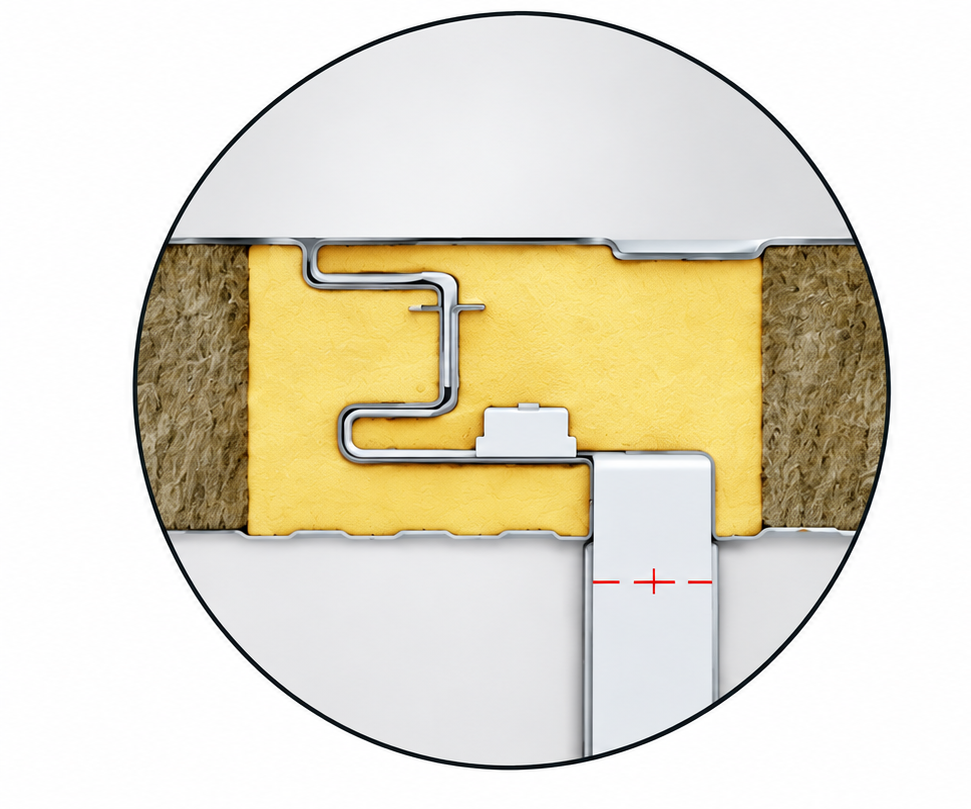

Seamless configuration
02

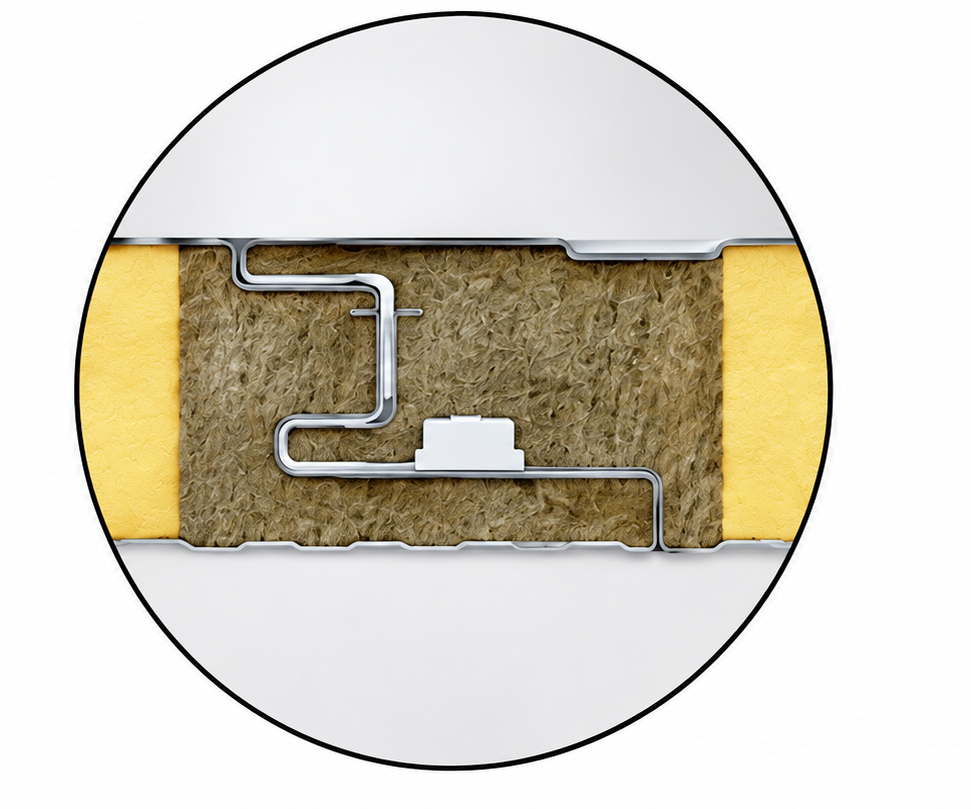

Seamed configuration
Need pricing for a rock wool partition wall panel project?
Send Atlas the project drawings, panel takeoff or project requirements for material review and project-based pricing.
