Rock Wool
Rock Wool Corrugated Roof Panel
with Polyurethane Sealing Sides
Supplier source name: Rock wool corrugated roof panel with polyurethane sealing sides
Rock wool corrugated roof panel with polyurethane sealing sides documented by the supplier. The technical references below reproduce the supplier's listed panel thicknesses, recommended steel sheet thickness, listed flammability class, core density, thermal conductivity, material stability, surface forms and available colors.
Panel Thickness50–100 mm
Steel Sheets0.4–0.8 mm
Listed ClassLevel A
Core Density120–150kg/m³
Thickness Options
Documented panel thicknesses.
The supplier sheet lists the following nominal panel thickness options for this rock wool partition wall panel.
0150 mm
0275 mm
0380 mm
04100 mm
Surface Ripple Form
Three documented surface forms.
Surface names below reproduce the supplier sheet terminology.
corrugated
Technical Specifications
Supplier reference data.
These values reproduce the supplier catalog for this configuration. The supplier table uses the label “Flammability class of PUR” while listing “Level A” on this rock wool roof product; the wording below is preserved from the source.
ProductRock wool corrugated roof panel with polyurethane sealing sides
Panel thickness50 / 75 / 80 / 100 mm
Recommend thickness of steel sheets0.4~0.8mm
Flammability class of PURLevel A
Density of core120~150kg/m³
Thermal Conductivity≤0.042W/(m.k)
Material stabilityThe chemical stability is incomparable compared with organic material
Surface ripple formglaze surface / corrugated
ColorsWhite, gray, silver, blue, red, orange etc., customization
Color Options
Supplier-listed colors.
Custom options.
The supplier lists White, gray, silver, blue, red and orange, with customization available for project requirements.
Standard Colors
White · Gray · Silver · Blue · Red · Orange
Custom Colors
Customization available
Supplier Reference
White / gray / silver / blue / red / orange · customization available.
Color visuals are website references only. Final color, coating and finish availability should be confirmed for the selected project and quantity.

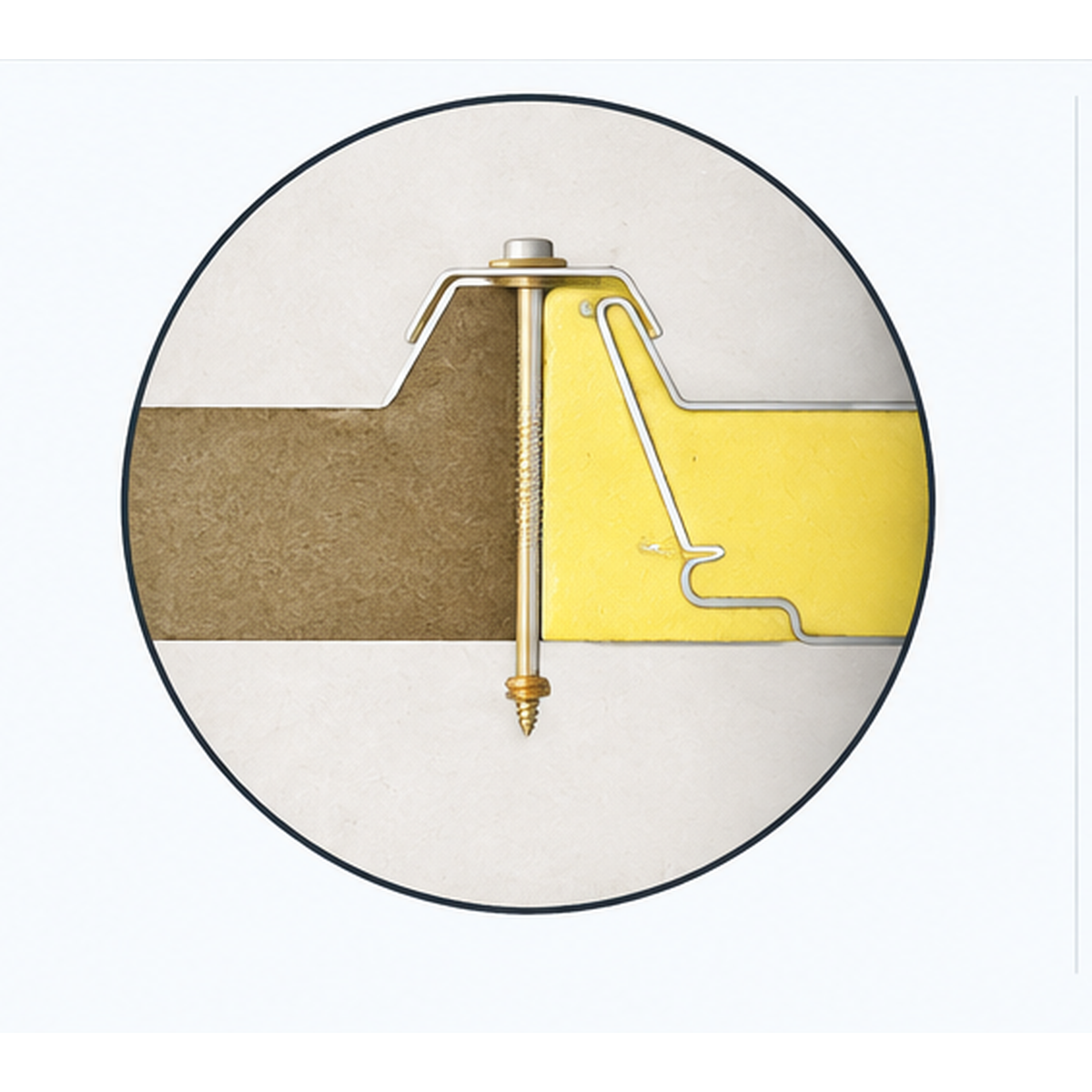

Panel Joint
Supplier joint reference.
Use the supplier joint drawing as the controlling reference for the panel-edge geometry. The website product image is a presentation image and should not replace the technical joint detail.
Product 10 has one circular roof-joint reference in the supplier document. Keep this exact reference visible on the page for technical review.
