Rock Wool
Rock Wool Corrugated
Roof Panel

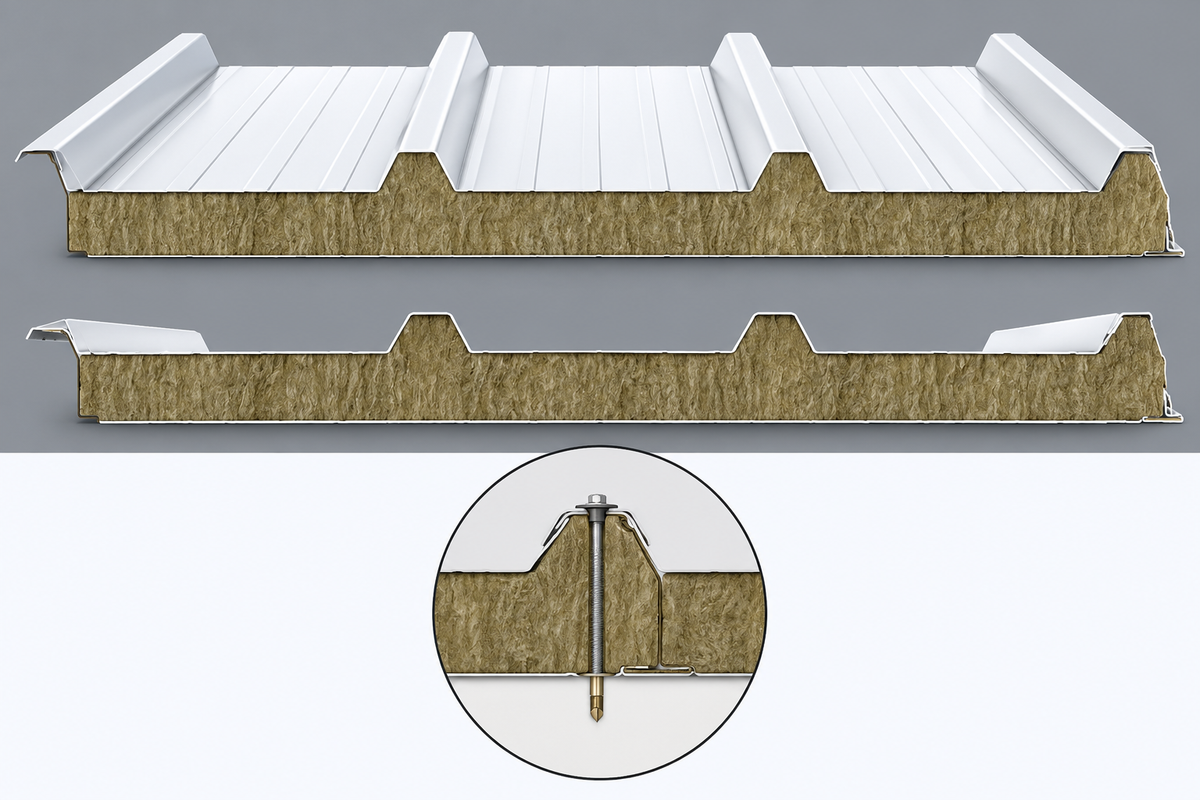

Supplier source name: Rock wool corrugated roof panel
Rock wool corrugated roof panel configuration documented by the supplier. The technical references below reproduce the supplier's listed panel thicknesses, recommended aluminum foil thickness, recommended steel plate thickness, listed flammability class, core density, thermal conductivity, material stability, surface forms and colors.
Panel Thickness
50–100 mm
Steel Plate
0.4–0.8 mm
Listed Class
Level A
Core Density
120–150kg/m³
Thickness Options
Documented panel thicknesses.
The supplier sheet lists the following nominal panel thickness options for this rock wool corrugated roof panel.
0150 mm
0260 mm
0375 mm
0480 mm
05100 mm
Surface Ripple Form
Three documented surface forms.
Surface names below reproduce the supplier sheet terminology.

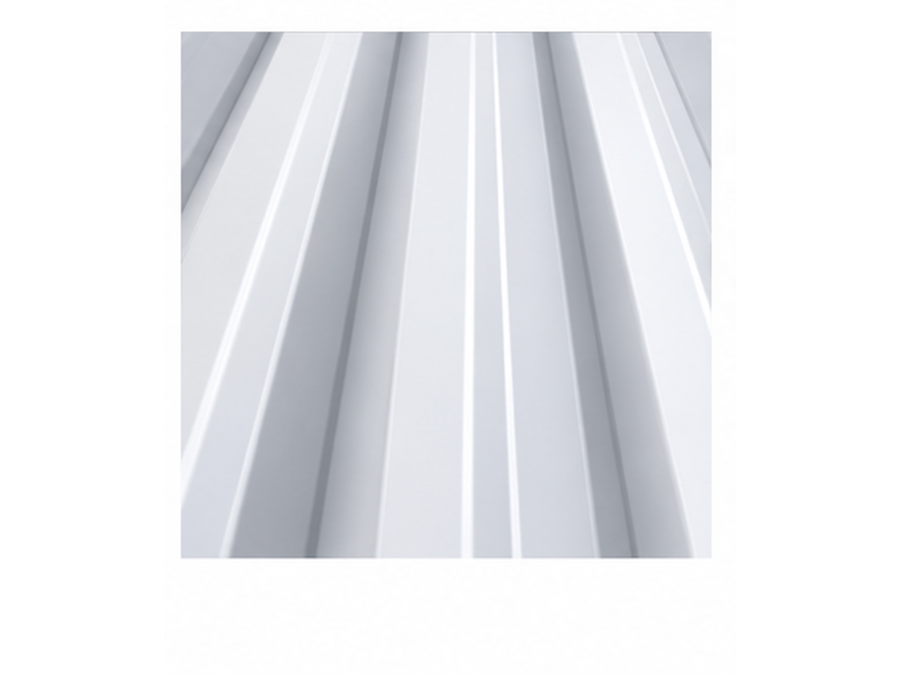

corrugated

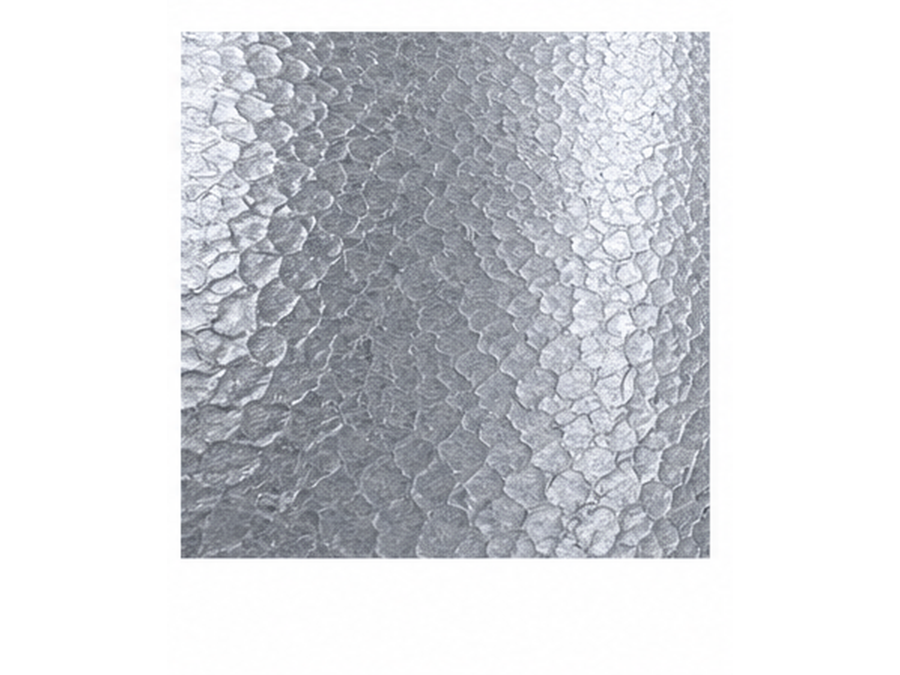

aluminum foil
Technical Specifications
Supplier reference data.
These values reproduce the supplier catalog for this configuration. The supplier table uses the label “Flammability class of PUR” while listing “Level A” on this rock wool roof product; the table below preserves that source wording rather than silently changing it.
ProductRock wool corrugated roof panel
Panel thickness50 / 60 / 75 / 80 / 100 mm
Recommend thickness of aluminum foil0.5~0.8mm
Recommend thickness of steel plate0.4~0.8mm
Flammability class of PURLevel A
Density of core120~150kg/m³
Thermal Conductivity≤0.042W/(m.k)
Material stabilityThe chemical stability is incomparable compared with organic material

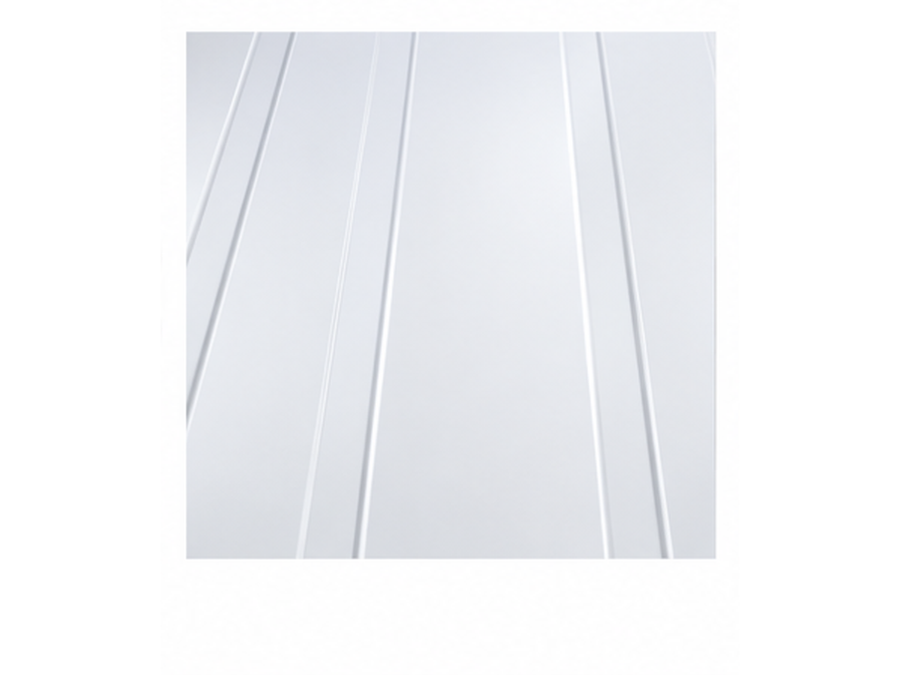

Surface ripple formglaze surface / corrugated / aluminum foil
ColorsWhite, gray, silver, blue, red, orange etc., customization
Color Options
Supplier-listed colors.
Custom options.
The supplier lists White, gray, silver, blue, red and orange, with customization available for project requirements.
Standard Colors
White · Gray · Silver · Blue · Red · Orange
Custom Colors
Customization available
Supplier Reference
White / gray / silver / blue / red / orange · customization available.
Color visuals are website references only. Final color, coating and finish availability should be confirmed for the selected project and quantity.

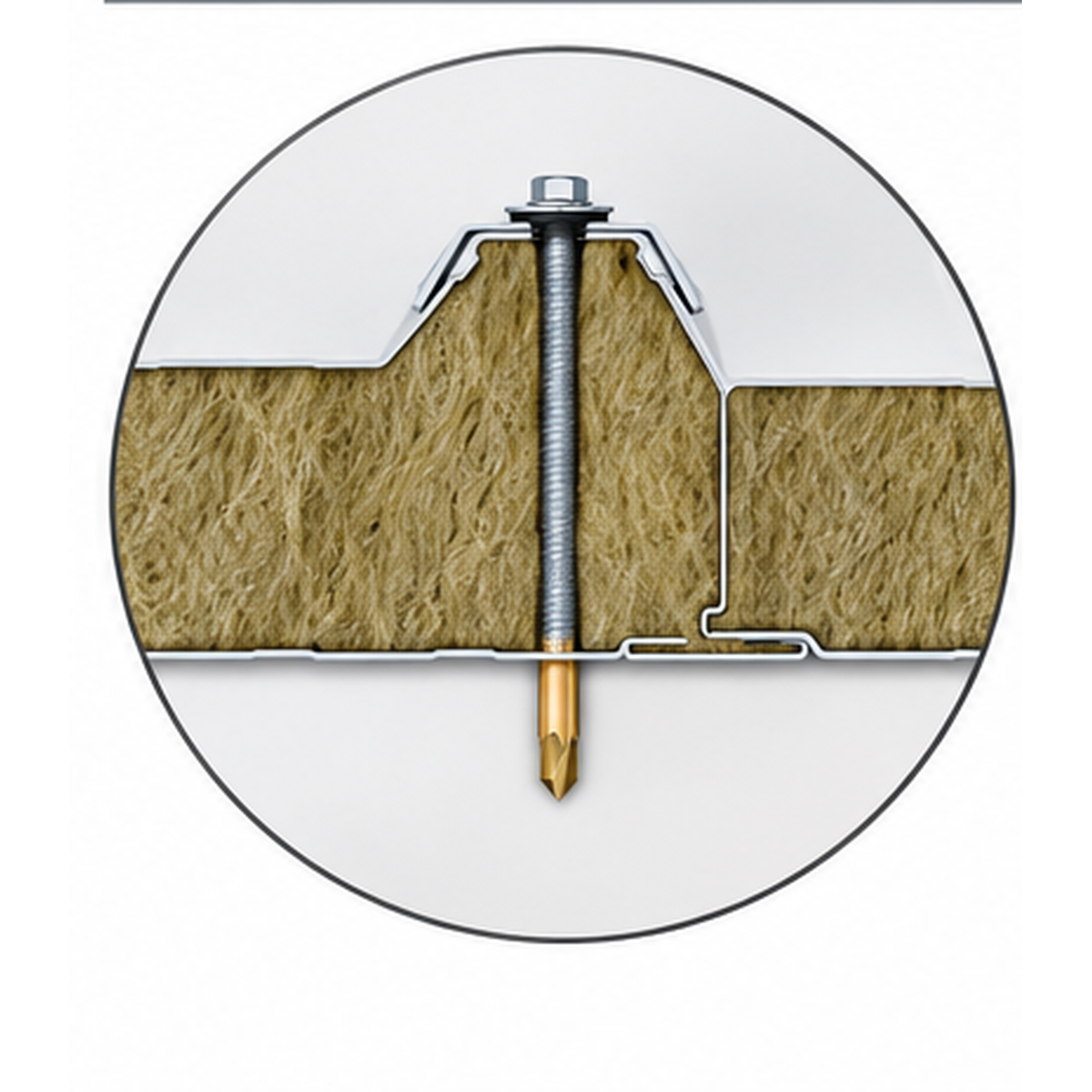

Panel Joint
Supplier joint reference.
Use the supplier joint drawing as the controlling reference for the panel-edge geometry. The website product image is a presentation image and should not replace the technical joint detail.
Product 08 has one circular roof-panel joint reference in the supplier document. Keep that exact reference visible on this page for technical review.
