PUR / PIR
Purification
Plate
Supplier source name: PUR/PIR Purification panel
PUR/PIR purification panel configuration documented by the supplier. The technical references below reproduce the supplier's listed panel thicknesses, facing thickness, flammability classifications, core densities, compressive strength, surface forms and available colors.
Panel Thickness
50–300 mm
Steel Sheet
0.4–0.8 mm
PUR
B2/B3 · 38–45kg/m³
PIR
B1/B2 · 45–55kg/m³
Thickness Options
Documented panel thicknesses.
The supplier sheet lists the following nominal panel thickness options for this purification panel configuration.
0150 mm
0275 mm
0380 mm
04100 mm
05120 mm
06150 mm
07180 mm
08200 mm
09250 mm
10300 mm
Surface Ripple Form
Three documented surface forms.
Surface names below reproduce the supplier sheet terminology.
ripplet
Wide ripple
Technical Specifications
Supplier reference data.
These values reproduce the supplier catalog for this configuration. Listed flammability classes are supplier designations; applicable test standards and project-specific compliance documentation should be confirmed for the selected panel.
ProductPUR/PIR Purification panel
Panel thickness50 / 75 / 80 / 100 / 120 / 150 / 180 / 200 / 250 / 300 mm
Recommended thickness of steel sheets0.4~0.8mm
PUR Flammability classB2/B3
PIR Flammability classB1/B2
Density of PUR38~45kg/m³
Density of PIR45~55kg/m³
Compressive strength≥0.20 MPa
Surface ripple formglaze surface / ripplet / Wide ripple
Colors availableWhite, gray, silver, blue, red, orange etc., customization
Color Options
Supplier-listed colors.
Custom options.
The supplier lists White, gray, silver, blue, red and orange, with customization available for project requirements.
Standard Colors
White · Gray · Silver · Blue · Red · Orange
Custom Colors
Customization available
Supplier Reference
White / gray / silver / blue / red / orange · customization available.
Color visuals are website references only. Final color, coating and finish availability should be confirmed for the selected project and quantity.

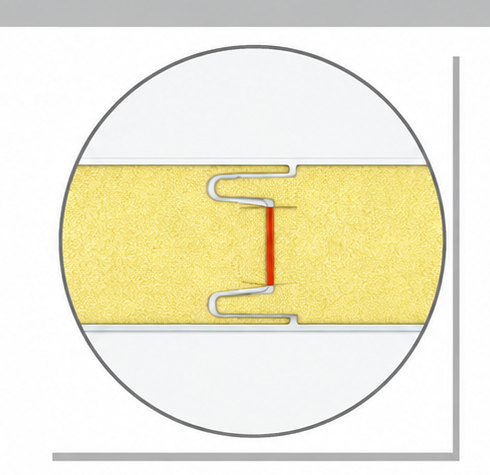

Panel Joint
Supplier joint reference.

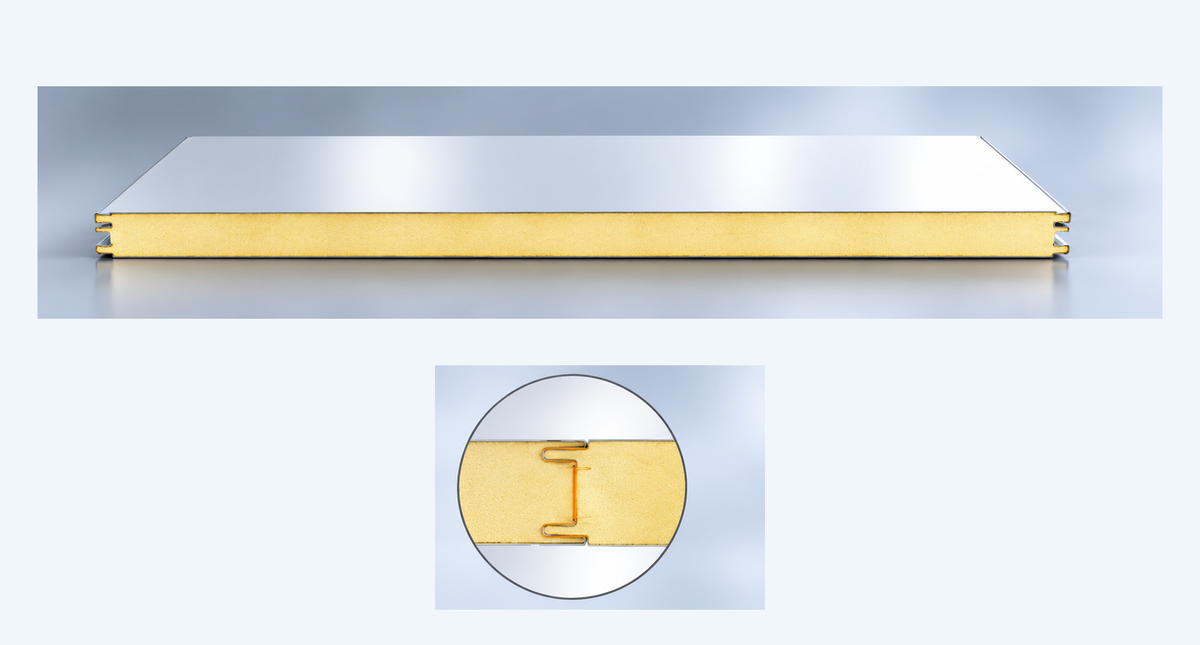

Use the supplier joint drawing as the controlling reference for the panel-edge geometry. The website product image is a presentation image and should not replace the technical joint detail.
Product 02 has its own joint inset in the supplier panel document. Keep that exact inset available here so project teams can compare the presentation image against the source geometry.
