PUR / PIR
Polyurethane
Sandwich Panel
Supplier source name: PUR/PIR wall panel
PUR/PIR wall panel configuration documented by the supplier, with Seamless wall panel and Seamed wall panel options. The technical references below reproduce the supplier's listed panel thicknesses, facing thickness, flammability classifications, core densities, compressive strength, surface forms and available colors.
Panel Thickness
50–200 mm
Steel Sheet
0.4–0.8 mm
PUR
B2/B3 · 38–45kg/m³
PIR
B1/B2 · 45–55kg/m³
Thickness Options
Documented panel thicknesses.
The supplier sheet lists the following nominal panel thickness options for this PUR/PIR wall panel configuration.
0150 mm
0275 mm
0380 mm
04100 mm
05120 mm
06150 mm
07180 mm
08200 mm
Surface Ripple Form
Three documented surface forms.
Surface names below reproduce the supplier sheet terminology.
ripplet
Wide ripple
Technical Specifications
Supplier reference data.
These values reproduce the supplier catalog for this configuration. Listed flammability classes are supplier designations; applicable test standards and project-specific compliance documentation should be confirmed for the selected panel.
ProductPUR/PIR wall panel
Documented optionsSeamless wall panel / Seamed wall panel
Panel thickness50 / 75 / 80 / 100 / 120 / 150 / 180 / 200 mm
Recommended thickness of steel sheets0.4~0.8mm
PUR Flammability classB2/B3
PIR Flammability classB1/B2
Density of PUR38~45kg/m³
Density of PIR45~55kg/m³
Compressive strength≥0.20 MPa
Surface ripple formglaze surface / ripplet / Wide ripple
Colors availableWhite, gray, silver, blue, red, orange etc., customization
Color Options
Supplier-listed colors.
Custom options.
The supplier lists White, gray, silver, blue, red and orange, with customization available for project requirements.
Standard Colors
White · Gray · Silver · Blue · Red · Orange
Custom Colors
Customization available
Supplier Reference
White / gray / silver / blue / red / orange · customization available.
Color visuals are website references only. Final color, coating and finish availability should be confirmed for the selected project and quantity.

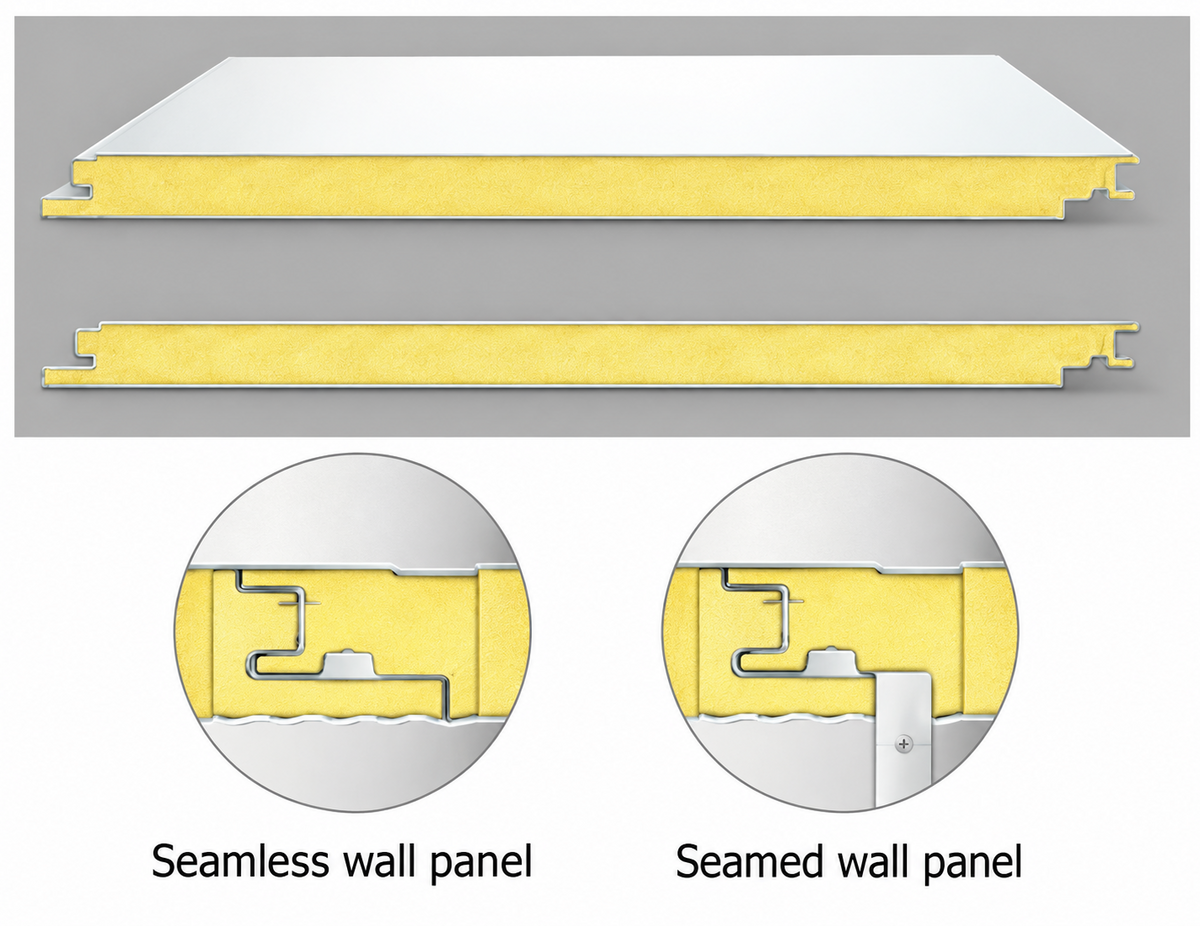

Panel Joint Options
Seamless and seamed wall joints.
The supplier drawing explicitly identifies separate joint details for the Seamless wall panel and Seamed wall panel. Keep both source references visible on this page.
01

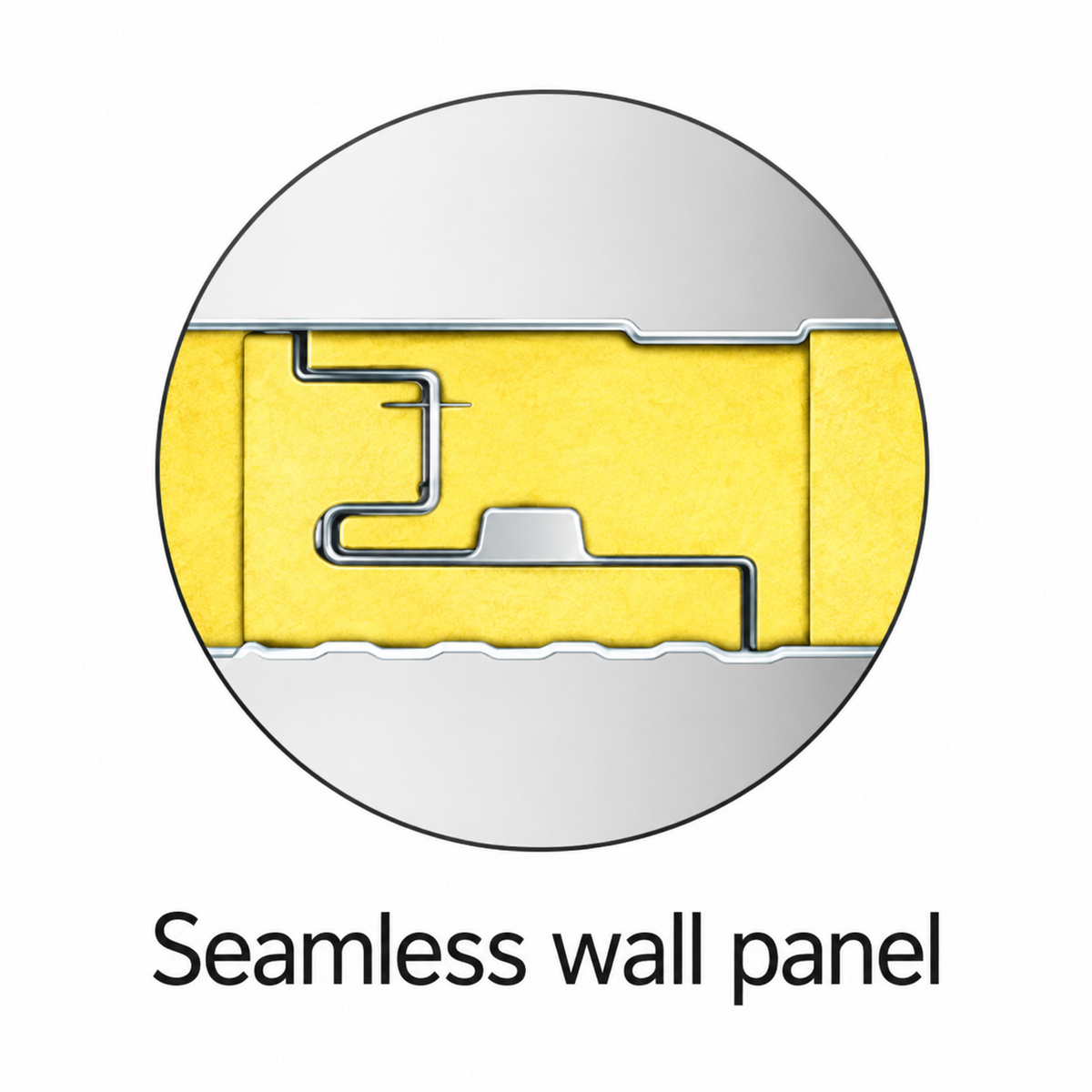

Seamless wall panel
02

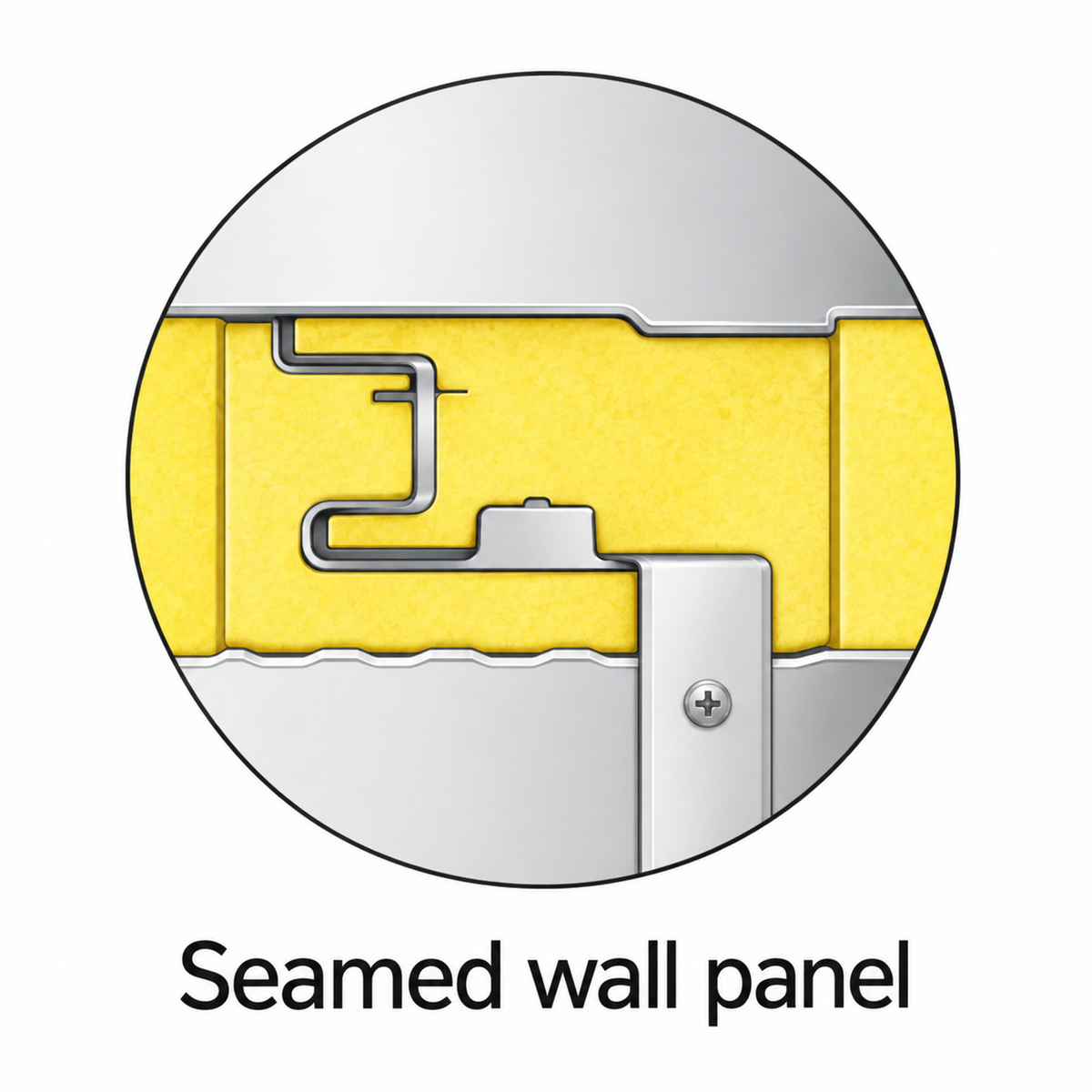

Seamed wall panel
Use the supplier joint drawings as the controlling references for edge geometry. Website presentation images should not replace the technical joint details.
