Medical-Grade Rock Wool Acoustic Ceilings

04 Medical-Grade Ceiling

Acoustic & Ceiling Solutions

Healthcare Sector

Medical-Grade Rock Wool
Acoustic Ceilings

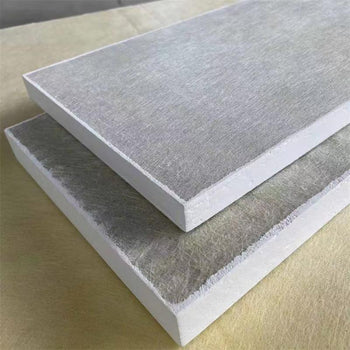

Stone wool acoustic absorption panel with white-painted non-woven fabric facing for healthcare-sector ceiling applications.

NRC 0.95

Sound Insulation CAC 20–25

Fire Class A1

Cleanroom ISO Class 5

Surface

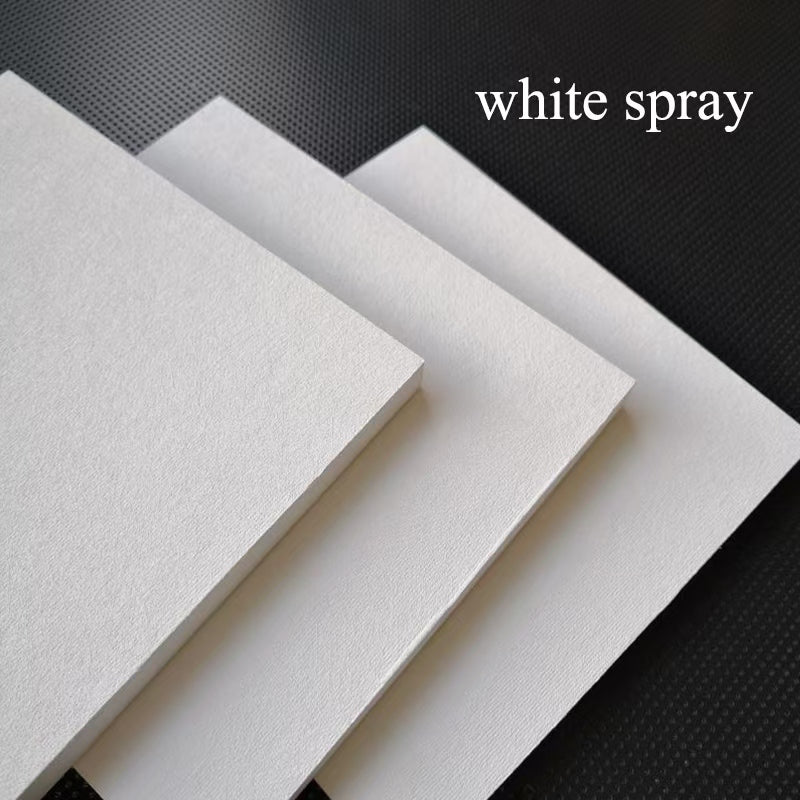

Front: White-painted non-woven fabric finish (textured surface). Back: Non-woven fabric backing. Edges are painted.

Request Project Pricing ↗ Technical Information ↓

Healthcare RH 100% 15 mm Panels

Product Description

Medical-grade acoustic ceiling panel.

Stone wool acoustic absorption panel designed for healthcare-sector applications.

Product: Stone wool acoustic absorption panel.
Front: White-painted non-woven fabric finish (textured surface).
Back: Non-woven fabric backing.
Edges: Edges are painted.

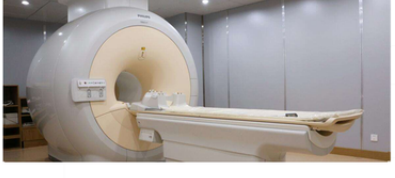

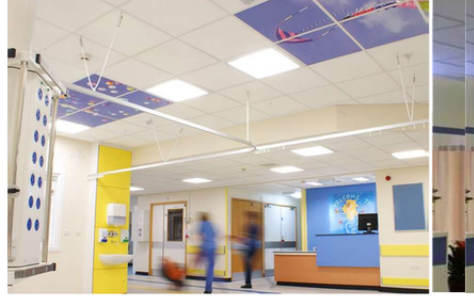

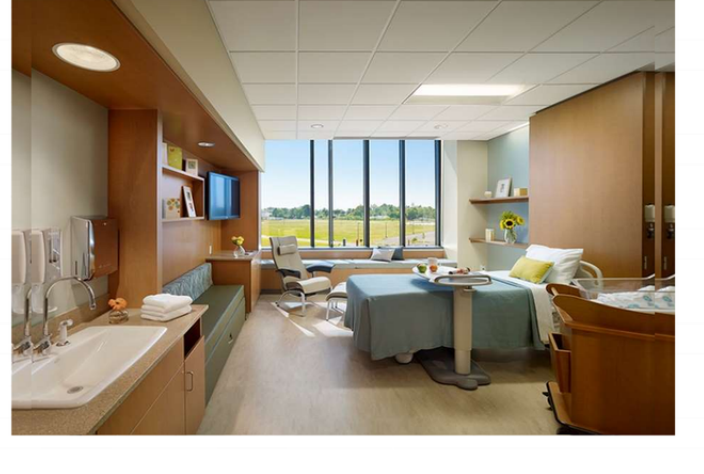

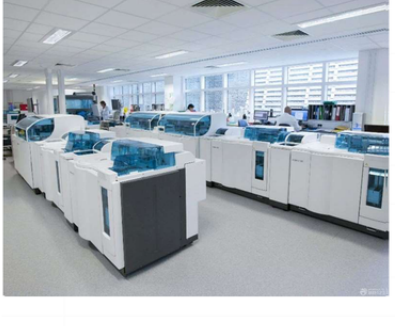

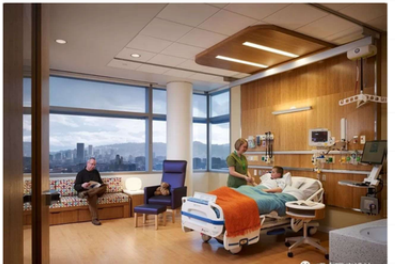

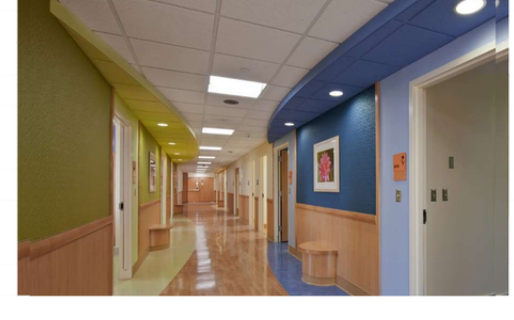

Application Places: Healthcare Sector.

Edge Type	Profile	Size (mm)	Density (kg/m²)
E15		600 × 600 × 15 1200 × 600 × 15	2.2
E24		600 × 600 × 15 1200 × 600 × 15	2.2

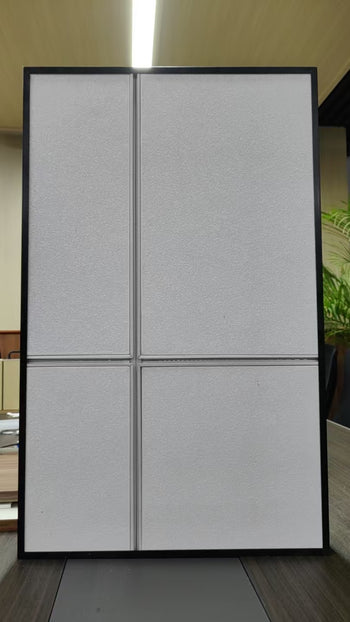

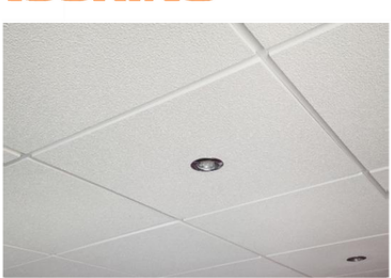

Available in standard panel dimensions and compatible with both semi-exposed and fully exposed suspension grid systems.

Key Performance Features

Healthcare-sector performance.

Acoustic, fire, humidity, hygiene, cleanroom, thermal and environmental properties from the medical-grade technical data.

01 Economical and practical

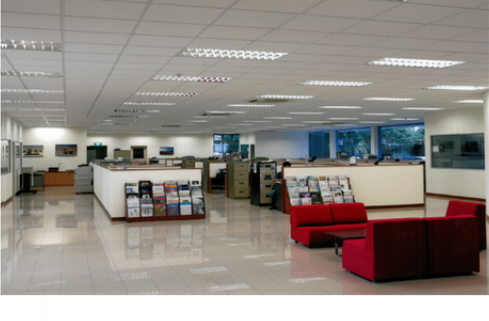

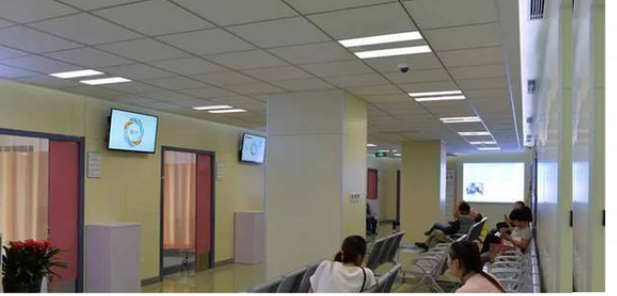

Regarding hygiene and particulate emission levels, it complies with the relevant requirements for healthcare facilities such as administrative offices and waiting rooms.

02 MRSA & ISO 5

Does not foster the proliferation of Methicillin-resistant Staphylococcus aureus (MRSA) and features low particulate emission levels meeting the ISO 5 cleanroom standard.

03 Acoustic & fire performance

Offers high sound absorption performance along with optimal fire resistance meeting the EU Class A1 standard for non-combustible materials.

04 Standard suspension systems

Available in standard panel dimensions and compatible with both semi-exposed and fully exposed suspension grid systems.

01 Sound Absorption Performance NRC = 0.95

According to GB/T 20247-2006.

02 Sound Insulation Performance CAC = 20–25

According to ASTM 1414.

03 Combustion Performance Class A1

According to GB 8624-2012.

04 Fire Resistance Limit >0.3 hr

In accordance with GB/T9978-8.

05 Moisture Resistance & Dimensional Stability RH 100%

EN 13964,1/C/ON; GB/T 11605-2005.

06 Thermal Insulation Performance λ < 0.05 W/(m·K)

At 25°C. At 600°C: λ < 0.15 W/(m·K).

07 Reflectance 0.86

ASTM E 1477-98 — standard white products.

08 Health Does not promote mold growth

GB/T 25998-2010. Contains no asbestos, CFCs, HCFCs or HCHO (formaldehyde).

09 Cleanroom Class ISO Class 5

According to ISO 14644-1.

10 Cleaning Vacuum or mild detergent

Can be cleaned using a vacuum cleaner with a soft brush attachment, or with a mild alkaline detergent and a cloth.

Environmental Attributes Stone wool is 100% recyclable.

Low VOC Finnish M1 & Danish DICL

VOC Index I < 1

Application Healthcare Sector

Acoustic Performance

Weighted sound absorption coefficient (αw)

A single-number rating calculated from measured sound absorption coefficients at standard frequencies.

αw Range 0.00 < αw < 1.00

αw ranges from 0.00 (poor) to 1.00 (perfect).

Calculated in accordance with ISO 11654 using the sound absorption coefficient αp values at standard frequencies.

The measured values are compared with a reference curve to determine the weighted sound absorption coefficient.

Noise Reduction Coefficient

Noise reduction coefficient (NRC)

Calculated in accordance with ASTM C423. NRC is the mathematical average of the measured sound absorption coefficients at 250, 500, 1000 and 2000 Hz.

Material	125	250	500	1000	2000	4000
Medical-Grade Stone Wool Tile	0.45	0.85	1.00	1.00	1.00	1.00
Perforated Gypsum	0.55	0.70	0.75	0.65	0.60	0.55
Mineral Fibre Tile	0.40	0.45	0.55	0.60	0.50	0.45
Carpet	0.01	0.02	0.05	0.15	0.30	0.40
Stone/Linoleum	0.02	0.02	0.05	0.05	0.05	0.07
Unperforated Gypsum	0.10	0.10	0.05	0.05	0.00	0.05

Stone Wool Tile NRC 0.90–1.00

Medical-Grade Product NRC 0.95

Mineral Fibre Tile NRC 0.55–0.70

Unperforated Gypsum NRC 0.10–0.15

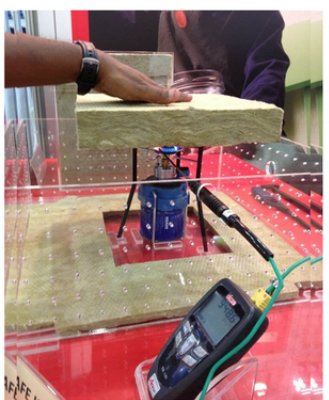

Fire Safety

Acoustic stone wool panels are rated A1. They are made from rock wool and resist more than 1000°C for more than 120 minutes.

Temperature-performance comparison from the source fire-safety data.

Polyurethane foam burns

200°C

Polystyrene foam burns

400°C

Steel loses load-bearing capacity

600°C

Glass wool melts

~800°C

Rock wool melts

>1000°C

Class A1 stone wool

Rock wool resistance documented above 1000°C for more than 120 minutes.

Humidity Performance

Superior Humidity Resistance of Stone Wool

Stone wool ceiling tiles are documented for humidity resistance and dimensional stability up to 100% RH.

01 Humidity resistance up to 100% RH

Stone wool ceiling tile humidity resistance up to 100% RH.

02 Naturally ventilated areas

Used in naturally ventilated areas.

03 Long-term dimensional stability

Humidity resistance up to 100% RH after 13 years. Stone wool products can withstand extreme climatic conditions and remain dimensionally stable up to 100% RH.

Hygiene Performance

Superior Hygiene Performance of Stone Wool

Stone wool is made from inorganic raw materials, has no nutritional value and therefore provides no sustenance to harmful micro-organisms.

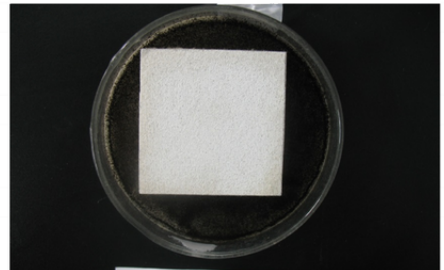

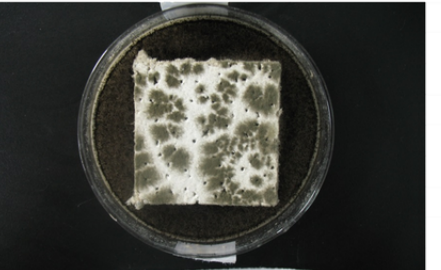

The source comparison shows the stone wool medical-grade tile after 28 days at up to 100% RH compared with a mineral fibre tile after 7 days at up to 95% RH.
