Product Thickness
15mm · 200mm Air Space
NRC ≥0.8
02
Glass Wool Ceiling
Acoustic & Ceiling Solutions
T-Bar Acoustic Ceiling System
Glass Wool Acoustic
Ceiling Panels
Torrefaction compounded high density glass wool with a special painted laminated decorative fiberglass tissue surface.
NRC
0.8–0.9
Fire-Resistant
Class A
Humidity
RH up to 95% at 40°C
Normal Size
600×600 / 600×1200 mm
Design
White spray / white paint / black spray / colorful as demanded
Technical Specifications
Glass Wool Acoustic
Technical Specifications
Product technical data presented from the supplied Glass Wool Acoustic Panel technical specification documentation.
02
Product Data
- Main Material
- Torrefaction compounded high density glass wool
- Surface
- Special painted laminated with decorative fiberglass tissue
- Design
- White spray/white paint/black spray/colorful as demanded
- Fire-Resistant
-
CLASS A, tested by SGS (EN13501-1:2007+A1:2009)
CLASS A, tested by national authoritative departments (GB 8624-2012) - NRC
-
0.8-0.9 tested by SGS (ISO354:2003 ENISO11654:1997)
0.9-1.0 tested by national authoritative departments (GB/T20247-2006/ISO354:2003) - Thermal-Resistant
- ≥0.4 (㎡·k)/w
- Humidity
-
Dimensionally stable with RH up to 95% at 40°C.
No sagging/warping or delaminating - Moisture Rate
- ≤1%
- Environmental Impact
- Tiles and packings are fully recyclable
- Safety
-
Limit of radionuclides in building materials
Specific activity of 226Ra≤1.0
Specific activity of 226Ra,232Th,40K≤1.3
Internal exposure index: Iγ≤1.0
External exposure index: I≤1.3 - Certificates
- SGS, ISO9001:2008, CE, ASTM-E84
- Normal Size
-
600×600/600×1200mm,
other size to order
Width≤1200mm, Length≤2700mm - Normal Density
- 100kg/m³, special density can be supplied
Acoustic Performance
Tested sound absorption.
The supplied technical documentation presents acoustic performance for 15mm and 20mm/25mm panel configurations.
Product Thickness
20mm / 25mm · 200mm Air Space
NRC ≥0.9
01
SGS Test
NRC 0.8–0.9
02
National Authoritative Departments
NRC 0.9–1.0
03
Thermal-Resistant
≥0.4 (㎡·k)/w
04
Humidity
RH up to 95% at 40°C
Dimension Options
Standard and custom sizes.
Normal sizes are 600×600mm and 600×1200mm. Other sizes can be supplied to order.
| Option | Format | Size | Details |
|---|---|---|---|
| Standard |
|
600×600 mm | Normal Size |
| Standard |
|
600×1200 mm | Normal Size |
| Custom |
|
Width ≤1200 mm Length ≤2700 mm |
Other size to order |
Custom Sizing
Sizes can be customized as required. Please consult your local sales representative for details.
Color Options
Standard white.
Custom colors.
Ceiling Systems
T-bar system options.
Installation details presented in the supplied Glass Wool Acoustic Panel documentation.
01
T-bar flat system section
02
T-bar fine groove system section
03
T-bar flat system
04
T-bar fine groove system

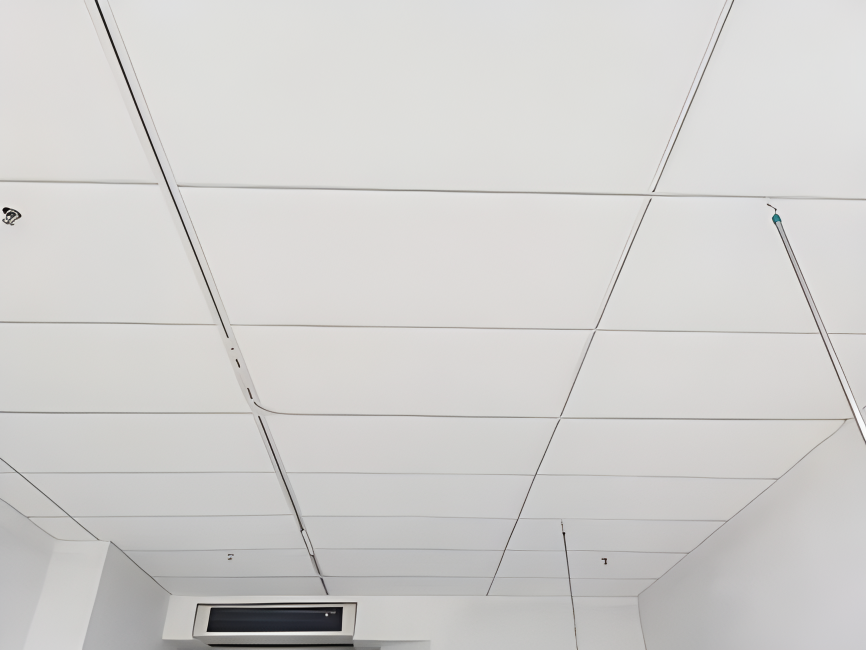

Product Images
Glass Wool ceiling applications.

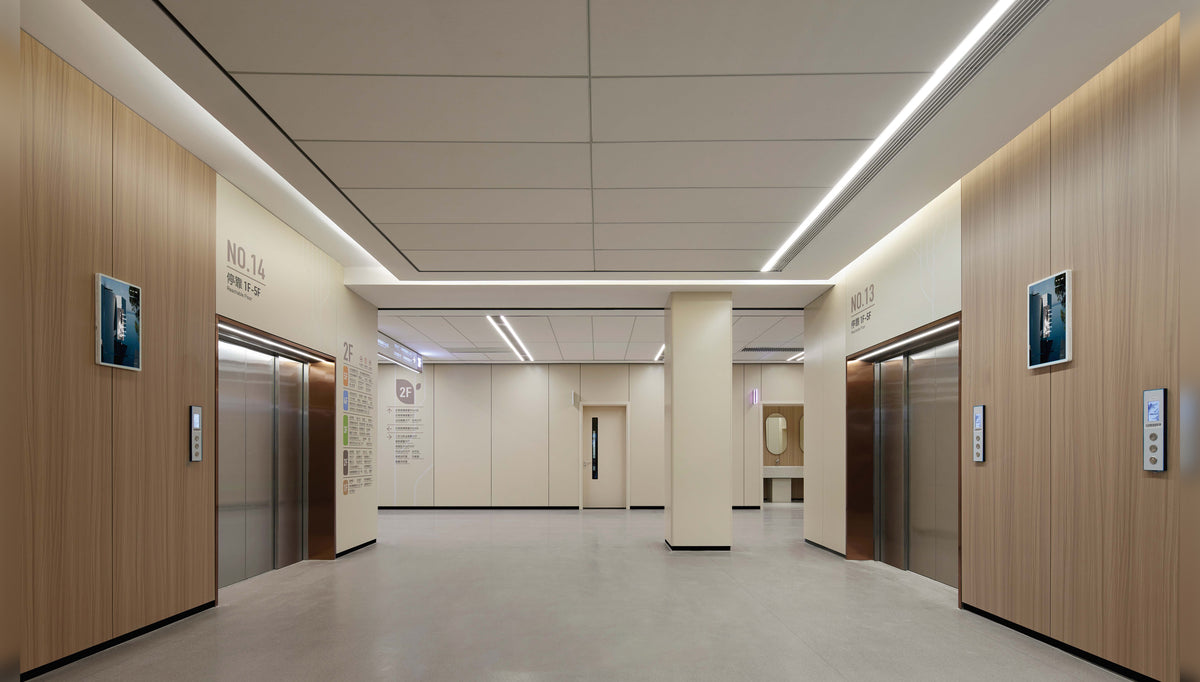

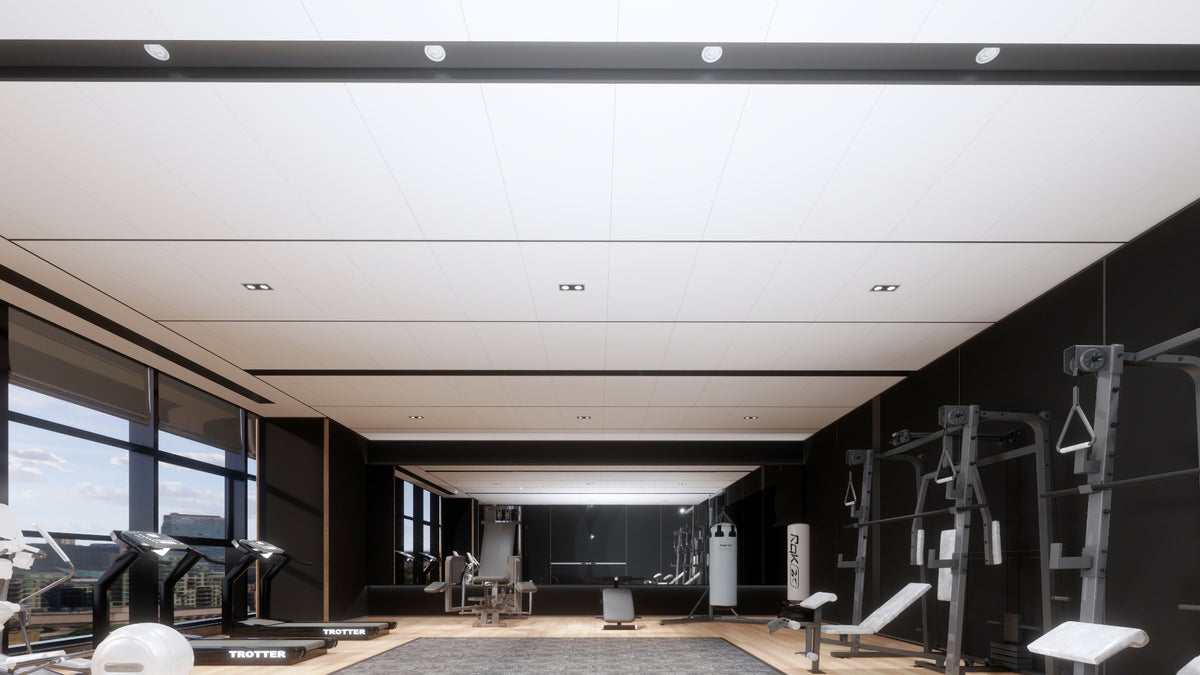

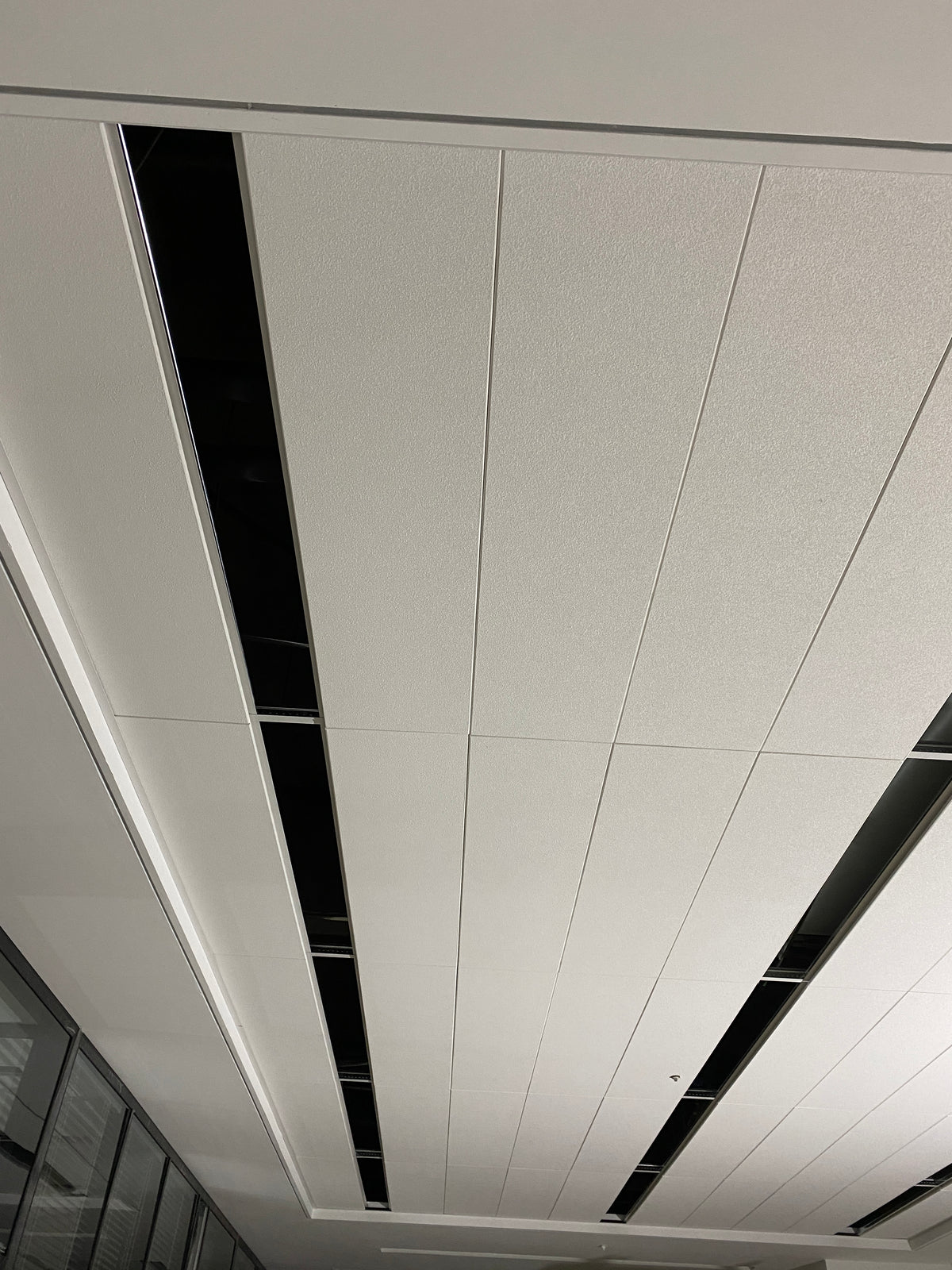

Applications
Application scenarios.
Certificates
SGS · ISO9001:2008 · CE · ASTM-E84
Environmental Impact
Tiles and packings are fully recyclable
Moisture Rate
≤1%
Normal Density
100kg/m³
