Fabric Wrapped Panel
Acoustic & Ceiling Solutions
Decorative Acoustic Wall Treatment
Fabric Wrapped Acoustic
Wall Panels
High-density glass wool/stone wool acoustic wall panels finished with fireproof decorative fabric and configurable dimensions, edges and finishes.
NRC
0.8–0.9
Fire-Resistant
Class A
Humidity
RH up to 95% at 40°C
Maximum Size
1200 × 2700 mm
Face
Fireproof decorative fabric. Design: As demanded.
Technical Specifications
Fabric Wrapped Acoustic Wall Panel
Technical Specifications
Product technical data presented from the supplied fabric wrapped acoustic wall panel specification.
05
Product Data
- Main Material
- Torrefaction compounded high density glass wool/stone wool
- Face
- Fireproof decorative fabric
- Design
- As demanded
- Fire-Resistant
-
CLASS A, tested by SGS (EN13501-1:2007+A1:2009)
CLASS A, European standard (EN13501-1:2007+A1:2009) - NRC
-
0.8-0.9 tested by SGS (ENISO354:2003, ENISO11654:1997)
0.8-0.9 European standard (ENISO354:2003, ENISO11654:1997) - Thermal-Resistant
- ≥0.4 (㎡·k)/w
- Humidity
-
Dimensionally stable with RH up to 95% at 40°C.
No sagging, warping or delaminating - Moisture Rate
- ≤1%
- Environmental Impact
- Tiles and packings are fully recyclable
- Safety
-
Limit of radionuclides in building materials
Specific activity of 226Ra ≤1.0
Specific activity of 226Ra,232Th,40K ≤1.3
Internal exposure index: Iγ ≤1.0
External exposure index: I ≤1.3 - Certificates
- SGS, ISO9001:2008, CE, ASTM-E84
- Normal Size
-
Size to order
Width ≤1200mm, Length ≤2700mm - Normal Density
- 120kg/m³, special density can be supplied
Acoustic Performance
Sound absorption performance.
The separate performance graphic in the supplied document shows a 40mm product thickness at 200mm air space and identifies NRC ≥0.95.
01
Technical Specification
NRC 0.8–0.9
02
Performance Graphic
NRC ≥0.95
03
Product Thickness
40mm
04
Air Space
200mm
The supplied source contains different NRC statements in its technical specification table and its separate acoustic-performance graphic. Both are shown here without reconciling them into a single value.
Dimension Options
Edge, size and installation options.
Three documented edge configurations are available with adjustable dimensions according to customer requirements.
| Edge Type | Profile | Width (mm) | Length (mm) | Thickness (mm) | Installation System |
|---|---|---|---|---|---|
| Square Edge |
|
600 / 1200 | 2700 | 25 / 30 / 40 | Adhesive Installation / T-bar System |
| Beveled Edge |
|
600 / 1200 | 2700 | 25 / 30 / 40 | Adhesive Installation / T-bar System |
| Concealed Edge |
|
600 / 1200 | 2700 | 25 / 30 / 40 | Adhesive Installation / T-bar System |
Dimensions can be adjusted according to customer requirements.
Color Options
Decorative fabric finish options.
Wood Grain
Wood Grain
Pattern Print
Pattern Print
Source note: Please refer to the A-grade glass fiber acoustic ceiling board color card for details.
Product Characteristics
Installation Systems
Adhesive and metal framing systems.
The supplied product document illustrates adhesive installation and metal framing installation configurations.
01

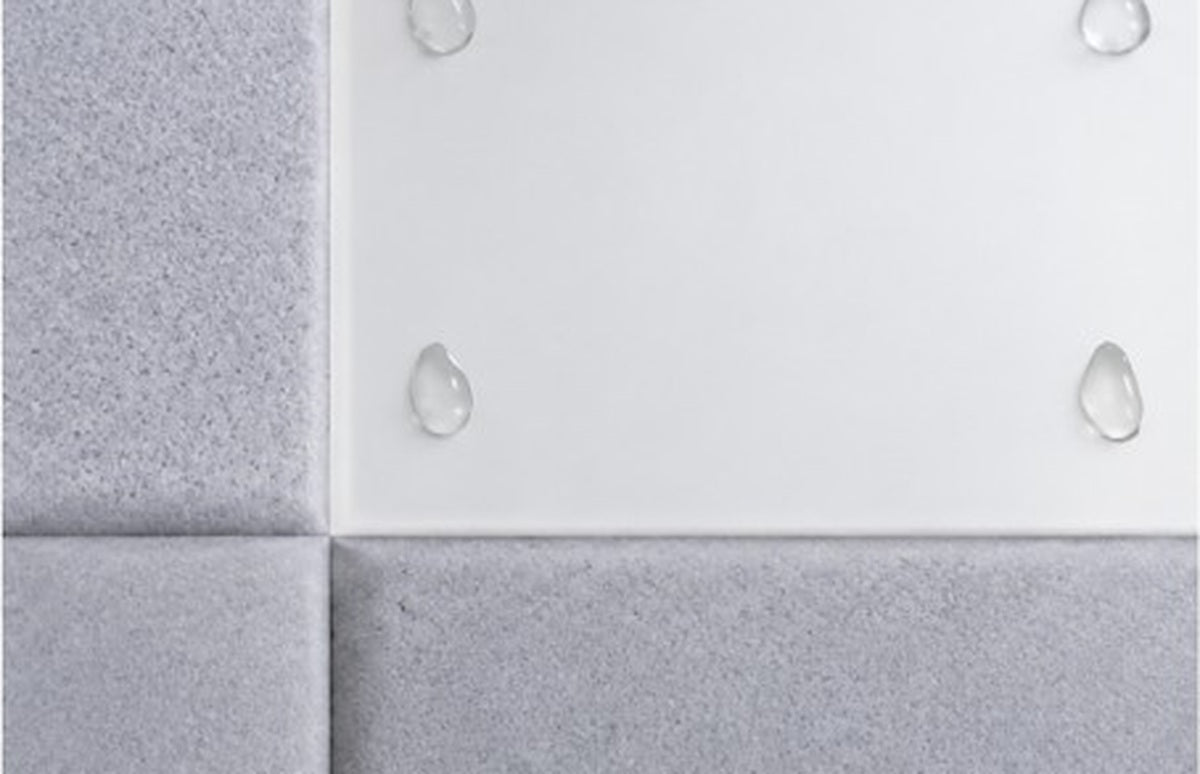

Acoustic Ceiling Tile Adhesive Installation System
02

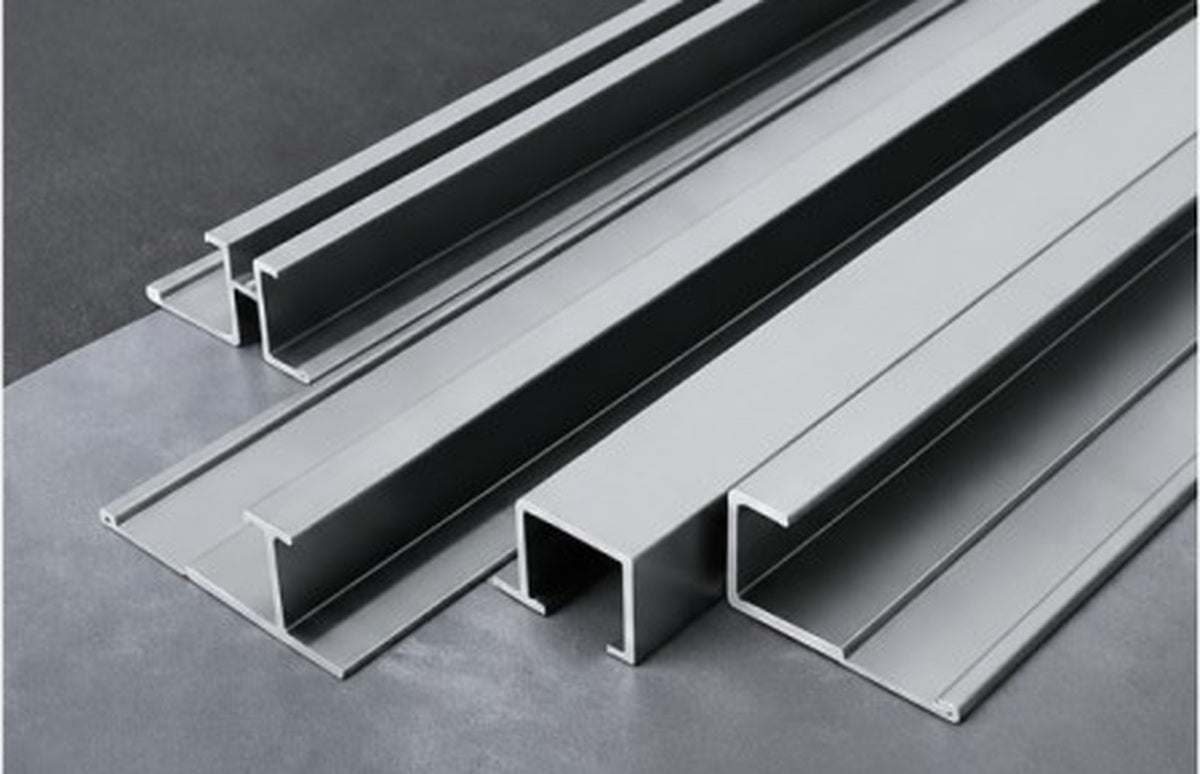

Acoustic Ceiling Tile Metal Framing System
Application Scenarios
Applications

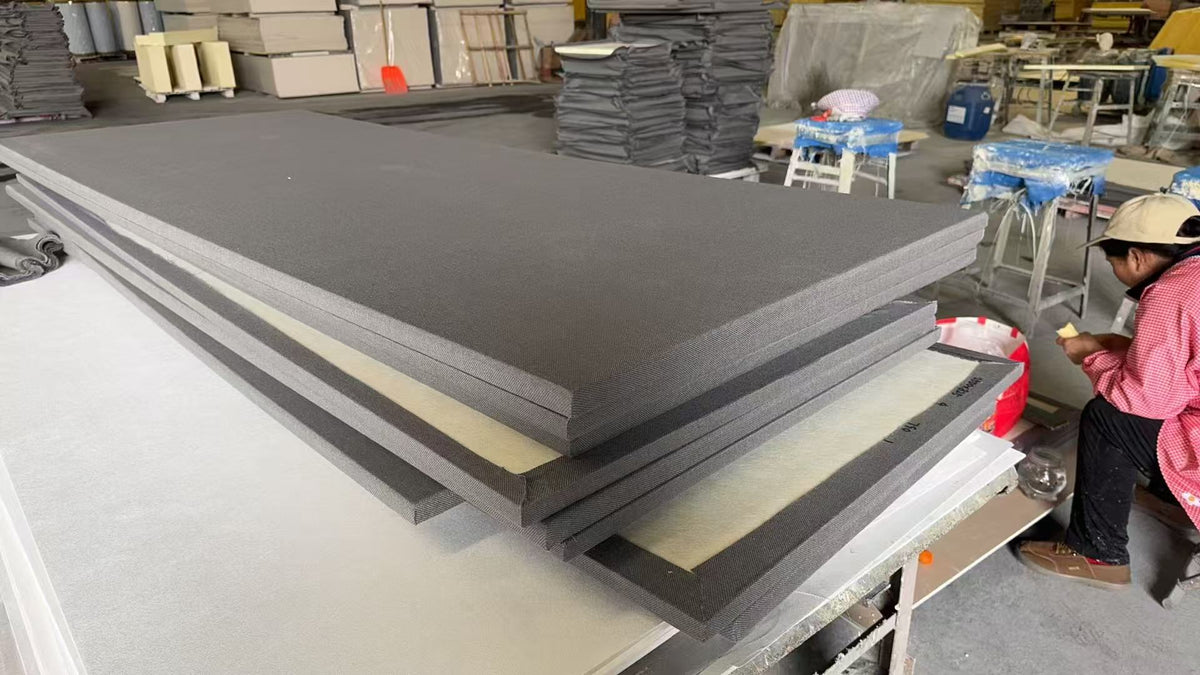

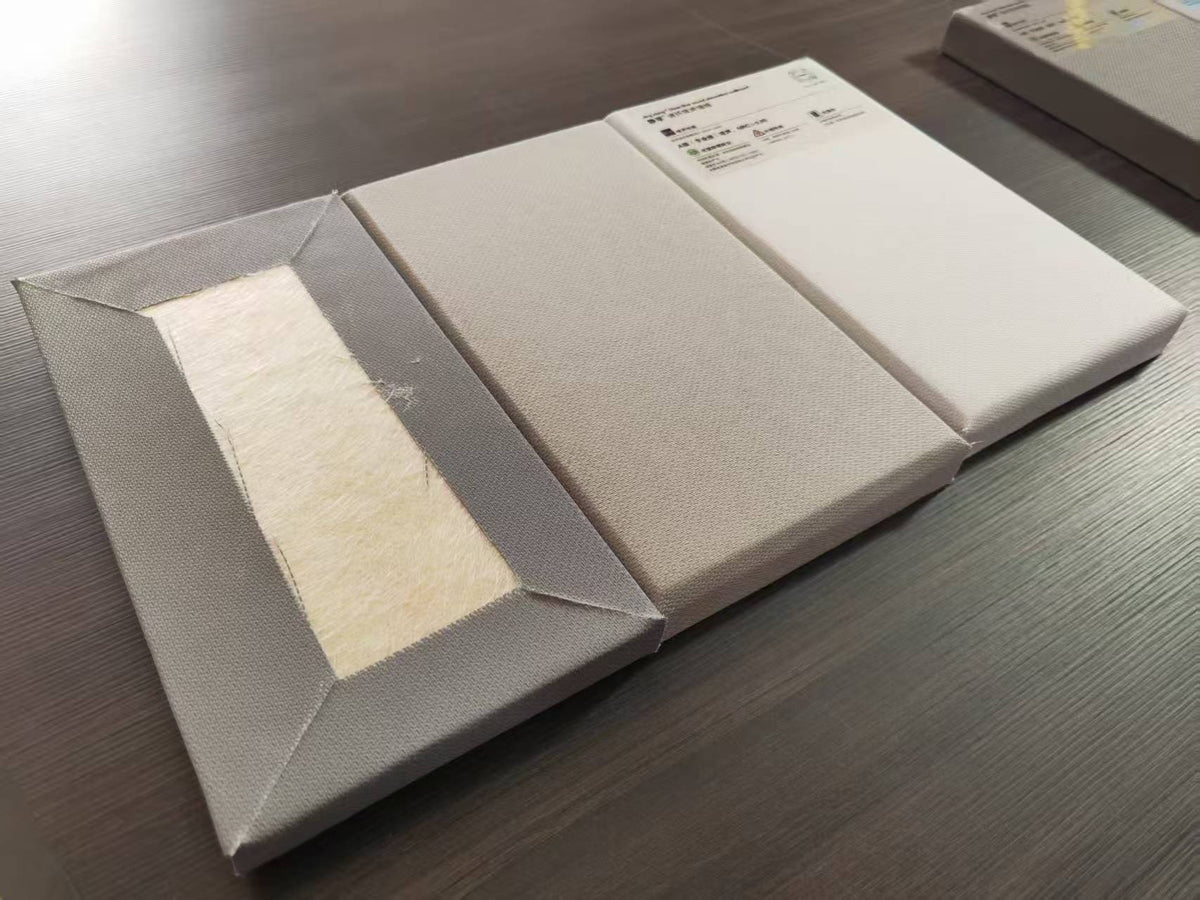

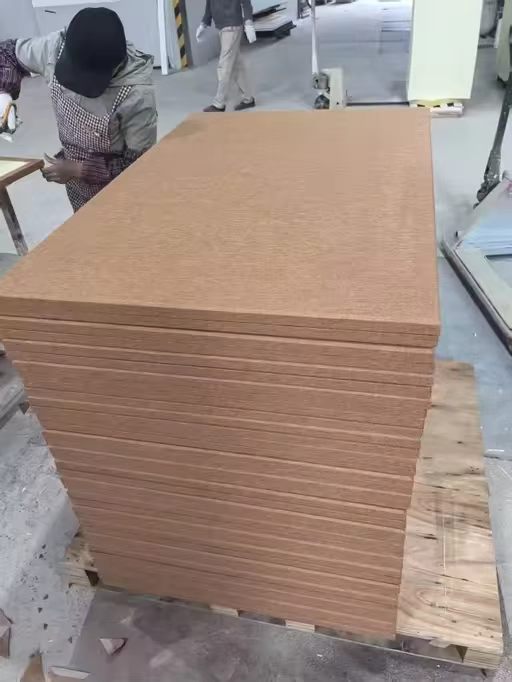

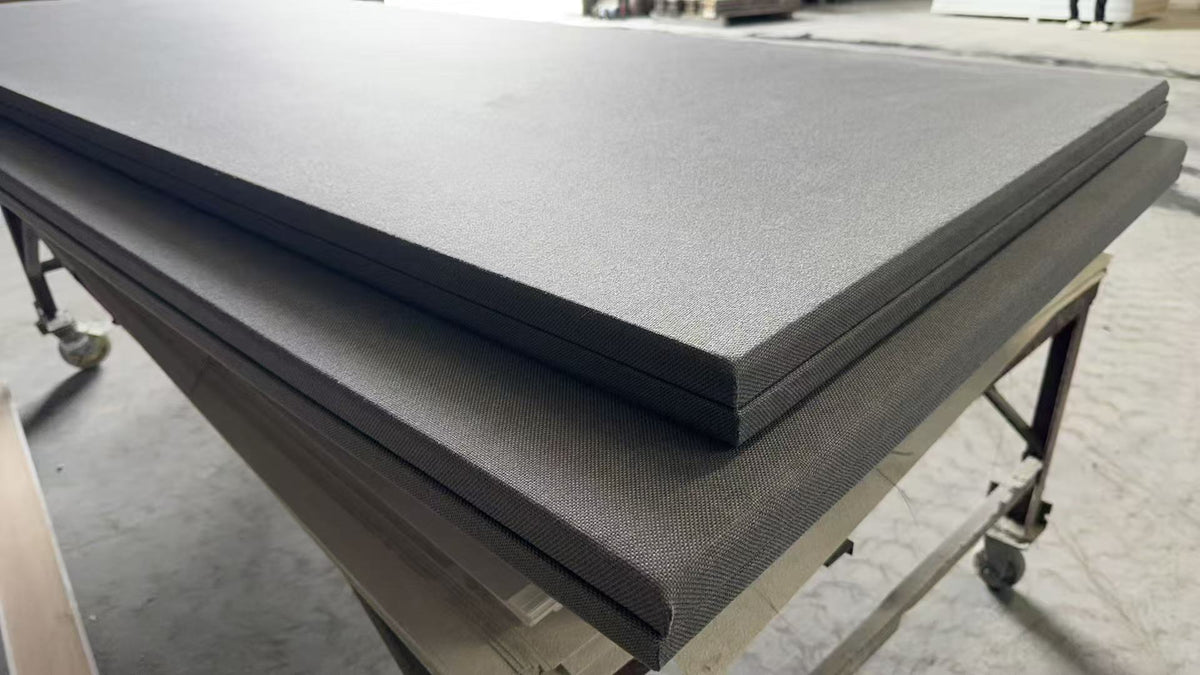

Product Images
Fabric Wrapped Acoustic Wall Panel applications.
Certificates
SGS · ISO9001:2008 · CE · ASTM-E84
Moisture Rate
≤1%
Environmental Impact
Tiles and packings are fully recyclable
Normal Density
120kg/m³
Maximum Size
Width ≤1200mm · Length ≤2700mm
