01

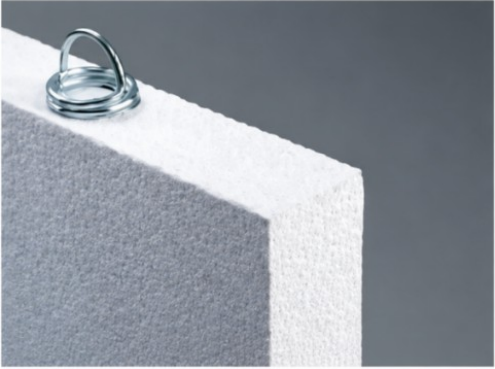

Floating Baffle Installation System ①
03
Vertical Baffle
Acoustic & Ceiling Solutions
Suspended Acoustic Baffle System
Acoustic Vertical
Baffles
Torrefaction compounded high density glass wool/stone wool with special painted laminated decorative fiberglass tissue.
NRC
≥0.9
Fire-Resistant
Class A
Humidity
RH up to 95% at 40°C
Thickness
30 / 40 / 50 mm
Design
White spray / white paint / black spray / colorful as demanded
Technical Specifications
Acoustic Vertical Baffle
Technical Specifications
Product technical data presented from the supplied Acoustic Vertical Baffle technical specification documentation.
03
Product Data
- Main Material
- Torrefaction compounded high density glass wool/stone wool
- Face
- Special painted laminated with decorative fiberglass tissue
- Design
- White spray/white paint/black spray/colorful as demanded
- Fire-Resistant
-
CLASS A, tested by SGS (EN13501-1:2007+A1:2009)
CLASS A, tested by national authoritative departments (GB 8624-2012) - NRC
-
≥0.9 tested by SGS (ENISO354:2003, ENISO11654:1997)
0.9-1.0 tested by national authoritative departments (GB/T20247-2006/ISO354:2003) - Thermal-Resistant
- ≥0.4 (㎡·k)/w
- Humidity
-
Dimensionally stable with RH up to 95% at 40°C.
No sagging, warping or delaminating - Moisture Rate
- ≤1%
- Environmental Impact
- Tiles and packings are fully recyclable
- Safety
-
Limit of radionuclides in building materials
Specific activity of 226Ra, 232Th, 40K ≤1.3
Internal exposure index: Iγ ≤1.0
External exposure index: I ≤1.3 - Certificates
- SGS, ISO9001:2008, CE, ASTM-E84
- Normal Size
-
600×600/600×1200mm, thickness:30/40/50mm
other size to order
Width ≤1200mm, Length ≤2700mm - Normal Density
- 120kg/m³, special density can be supplied
Acoustic Performance
NRC ≥ 0.9
Sound absorption curve shown for product thickness 40mm with greater than 200mm back cavity air space.
01
SGS Test
NRC ≥0.9
02
National Authoritative Departments
NRC 0.9–1.0
03
Product Thickness
40mm
04
Back Cavity
>200mm Air Space
Dimension
Baffle shapes and sizes.
For more shape combinations, please contact our local sales team.
| Shape | Dimension (mm) | Thickness (mm) | Installation |
|---|---|---|---|
|
|
300*1200, 200*1600, 400*1800 | 30/40 | Combined Suspension Installation |
|
|
200*1200, 300*1200, 400*1200 | 30/40 | Combined Suspension Installation |
|
|
600*1200 | 30/40 | Combined Suspension Installation |
Color
Standard white.
Multiple colors.
Wood grain.
Standard White
Standard White
Multiple Colors
Multiple Colors
Wood Grain
Wood Grain
Installation
Floating Baffle Installation Systems.
02

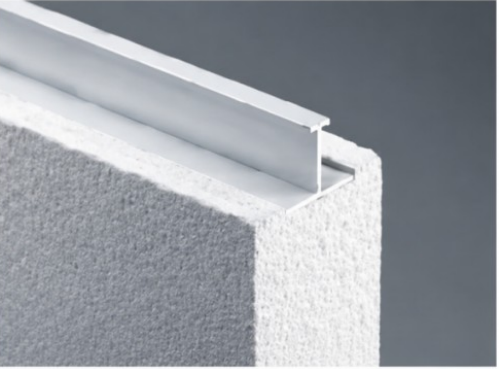

Floating Baffle Installation System ②

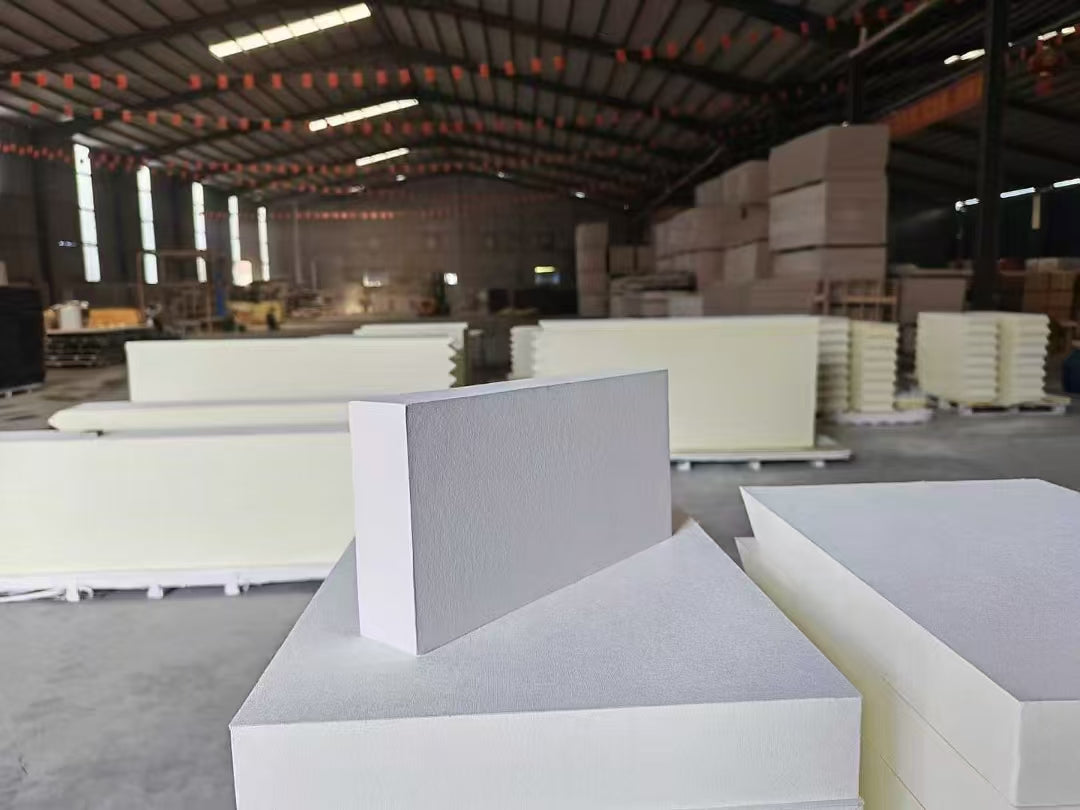

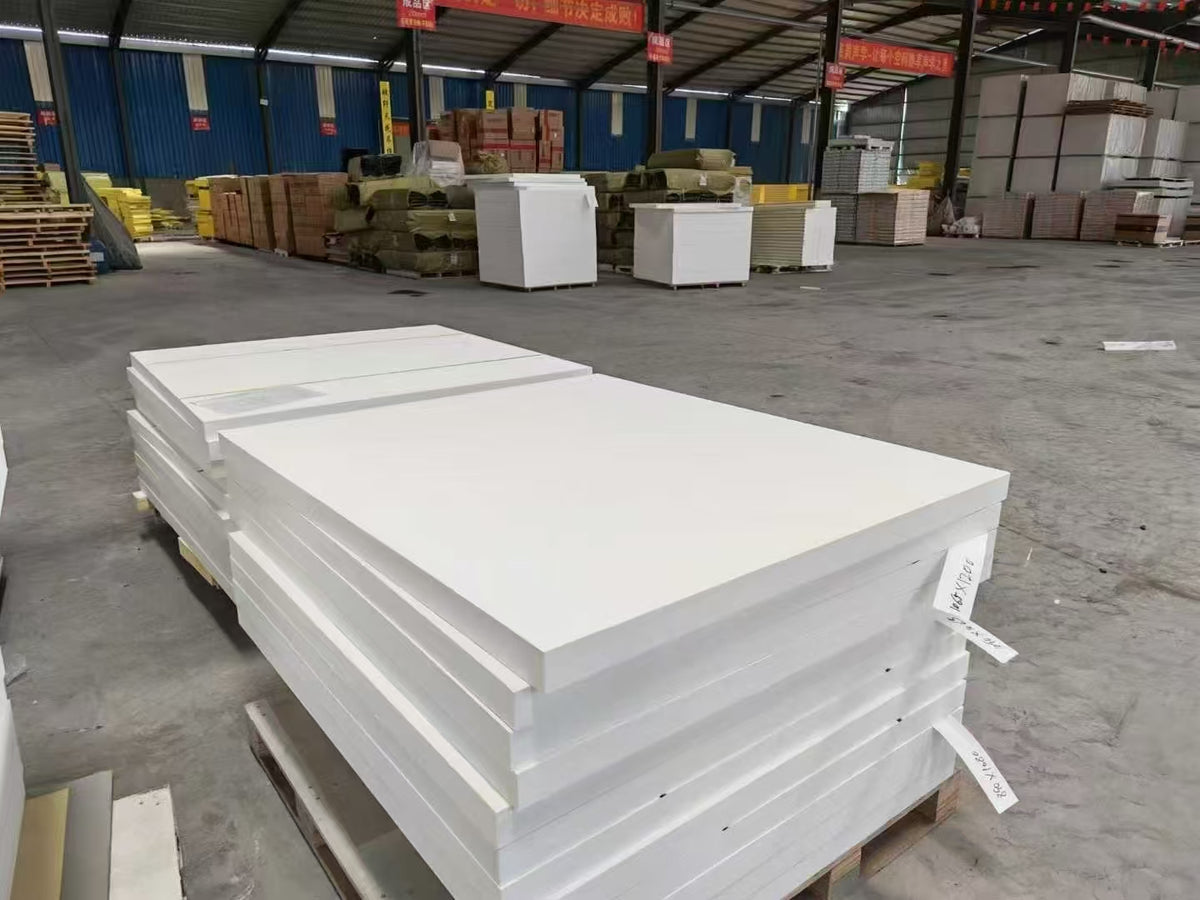

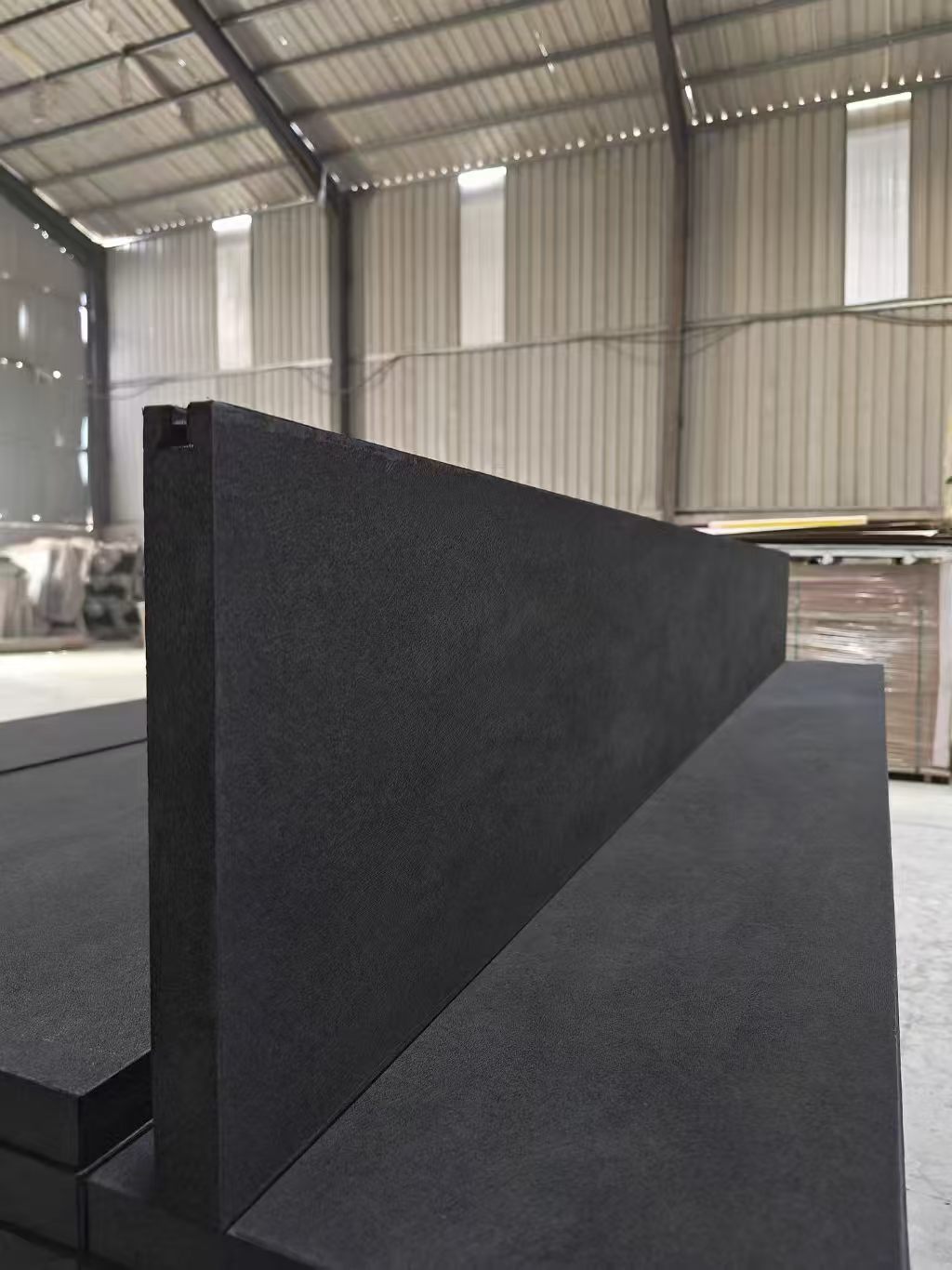

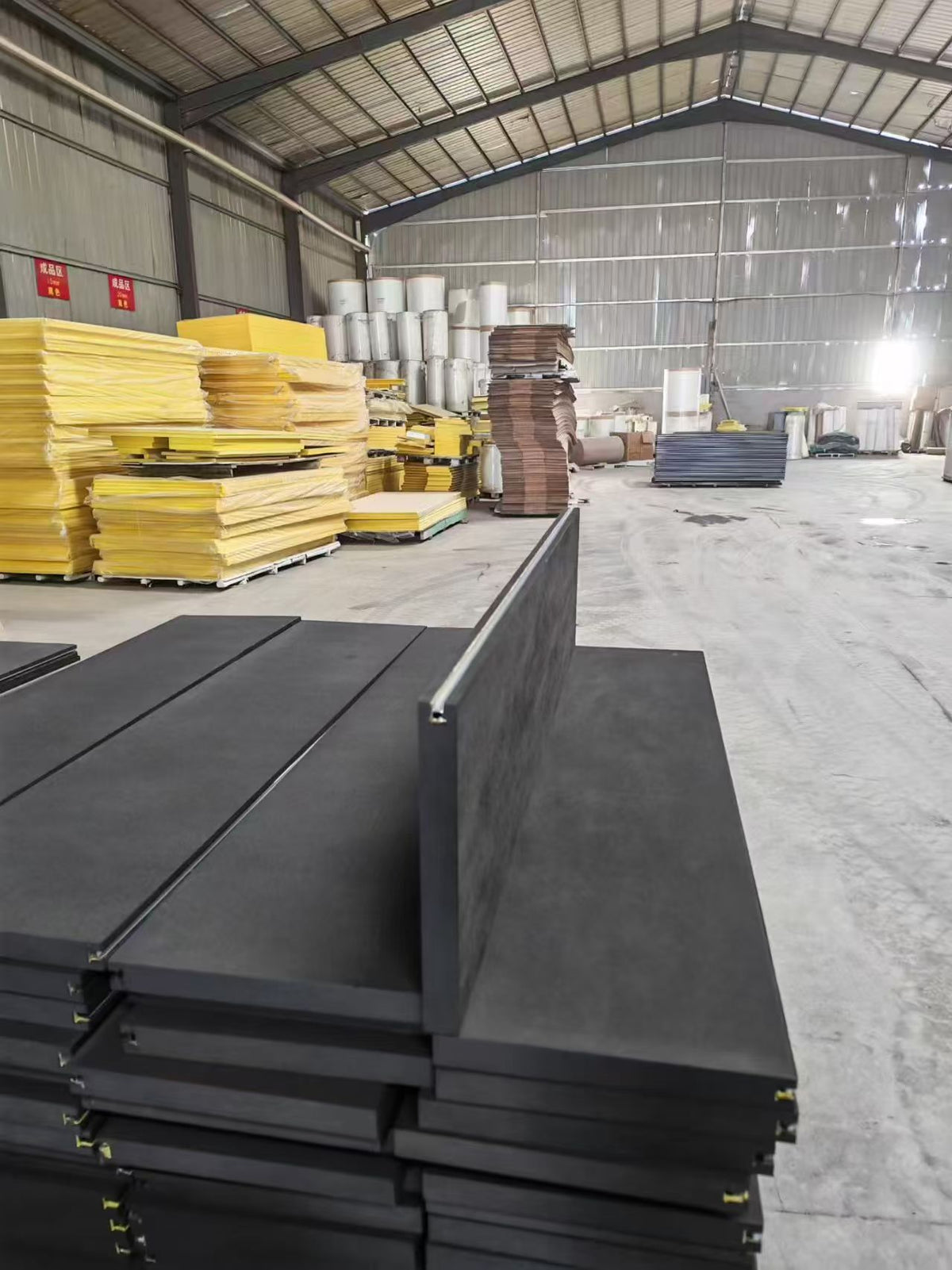

Product Images
Acoustic Vertical Baffle applications.
Applications
Applications
Certificates
SGS · ISO9001:2008 · CE · ASTM-E84
Environmental Impact
Tiles and packings are fully recyclable
Moisture Rate
≤1%
Normal Density
120kg/m³
