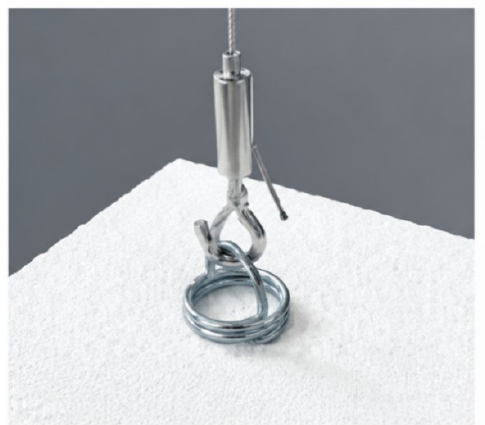

Floating Baffle Hanger System ①
01
Acoustic Cloud
Acoustic & Ceiling Solutions
Suspended Acoustic Cloud System
Acoustic Cloud
Panels
Suspended acoustic clouds combining high sound absorption with flexible shapes, sizes and finishes for architectural ceiling applications.
NRC
≥0.9
Fire-Resistant
Class A
Humidity
RH up to 95% at 40°C
Normal Size
30 / 40 / 50 mm
Design
White spray / white paint / black spray / colorful as demanded
Technical Specifications
Acoustic Cloud
Technical Specifications
Product technical data presented from the supplied Acoustic Cloud technical specification documentation.
01
Product Data
- Main Material
- Torrefaction compounded high density glass wool/stone wool
- Face
- Special painted laminated with decorative fiberglass tissue
- Design
- White spray/white paint/black spray/colorful as demanded
- Fire-Resistant
-
CLASS A, tested by SGS (EN13501-1:2007+A1:2009)
CLASS A, tested by national authoritative departments (GB 8624-2012) - NRC
-
≥0.9 tested by SGS (ENISO354:2003, ENISO11654:1997)
0.9-1.0 tested by national authoritative departments (GB/T20247-2006/ISO354:2003) - Thermal-Resistant
- ≥0.4 (㎡·k)/w
- Humidity
-
Dimensionally stable with RH up to 95% at 40°C.
No sagging, warping or delaminating - Moisture Rate
- ≤1%
- Environmental Impact
- Tiles and packings are fully recyclable
- Safety
-
Limit of radionuclides in building materials. Specific activity of 226Ra, 232Th, 40K ≤1.3
Internal exposure index: Iγ ≤1.0
External exposure index: I ≤1.3 - Certificates
- SGS, ISO9001:2008, CE, ASTM-E84
- Normal Size
-
Thickness: 30/40/50mm
other size to order - Normal Density
- 120kg/m³, special density can be supplied
Acoustic Performance
NRC ≥ 0.9
Acoustic performance data shown in the supplied product technical documentation.
01
SGS Test
NRC ≥0.9
02
National Authoritative Departments
NRC 0.9-1.0
03
Thermal-Resistant
≥0.4 (㎡·k)/w
04
Humidity
RH up to 95% at 40°C
Dimension Options
Shapes and sizes.
For more shape combinations, please contact our local sales representatives.
| Product | Shape | Size (mm) | Thickness (mm) |
|---|---|---|---|
| Rectangle |
|
600*1200, 1200*1200, 1200*2400 | 30/40 |
| Trapezoid |
|
1200*1200 | 30/40 |
| Circle |
|
Φ 800, Φ 1200 | 30/40 |
| Hexagon |
|
1200*1200 | 30/40 |
| Special Shape |
|
600 - 2700 | 30/40 |
Color Options
Standard white.
Custom colors.
Installation
Floating Baffle Hanger System.
02

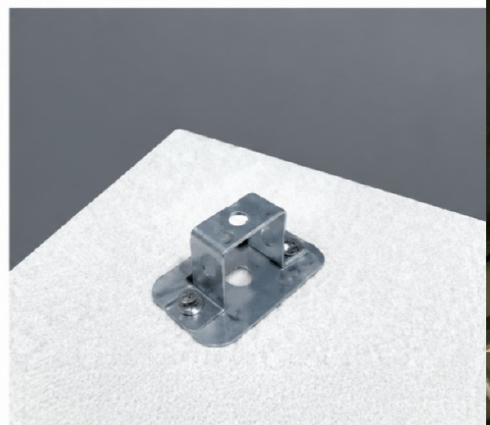

Floating Baffle Hanger System ②

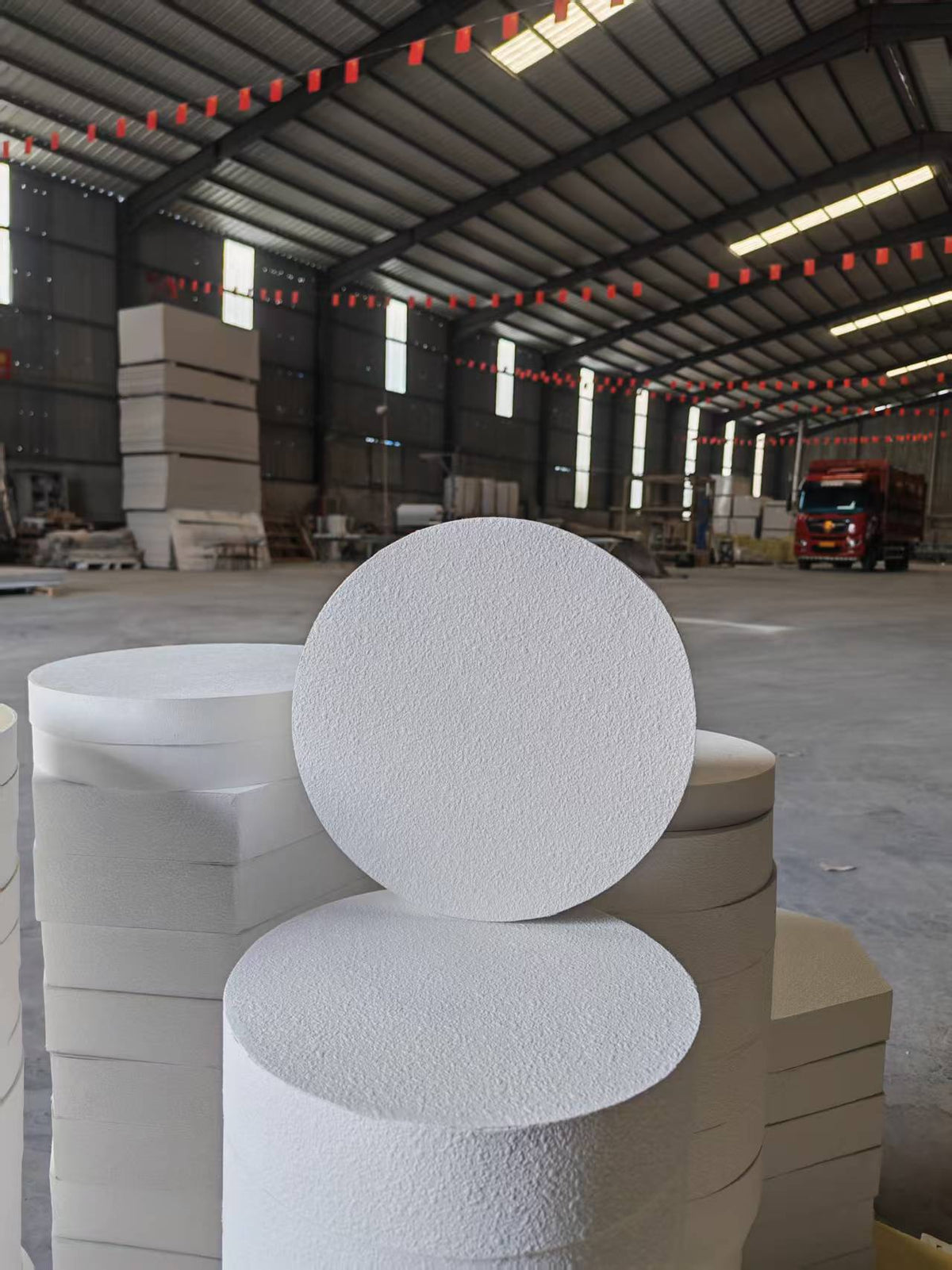

Product Images

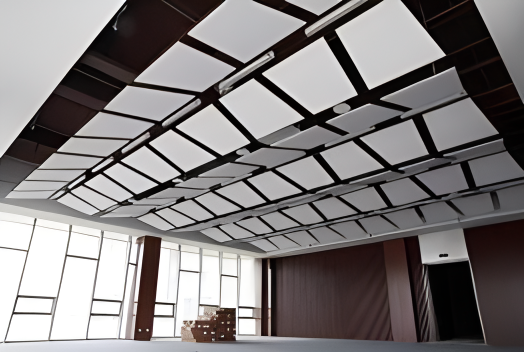

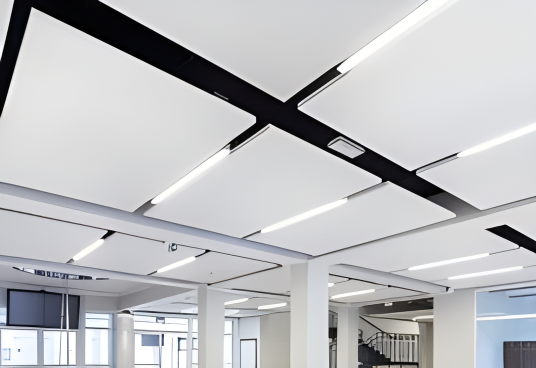

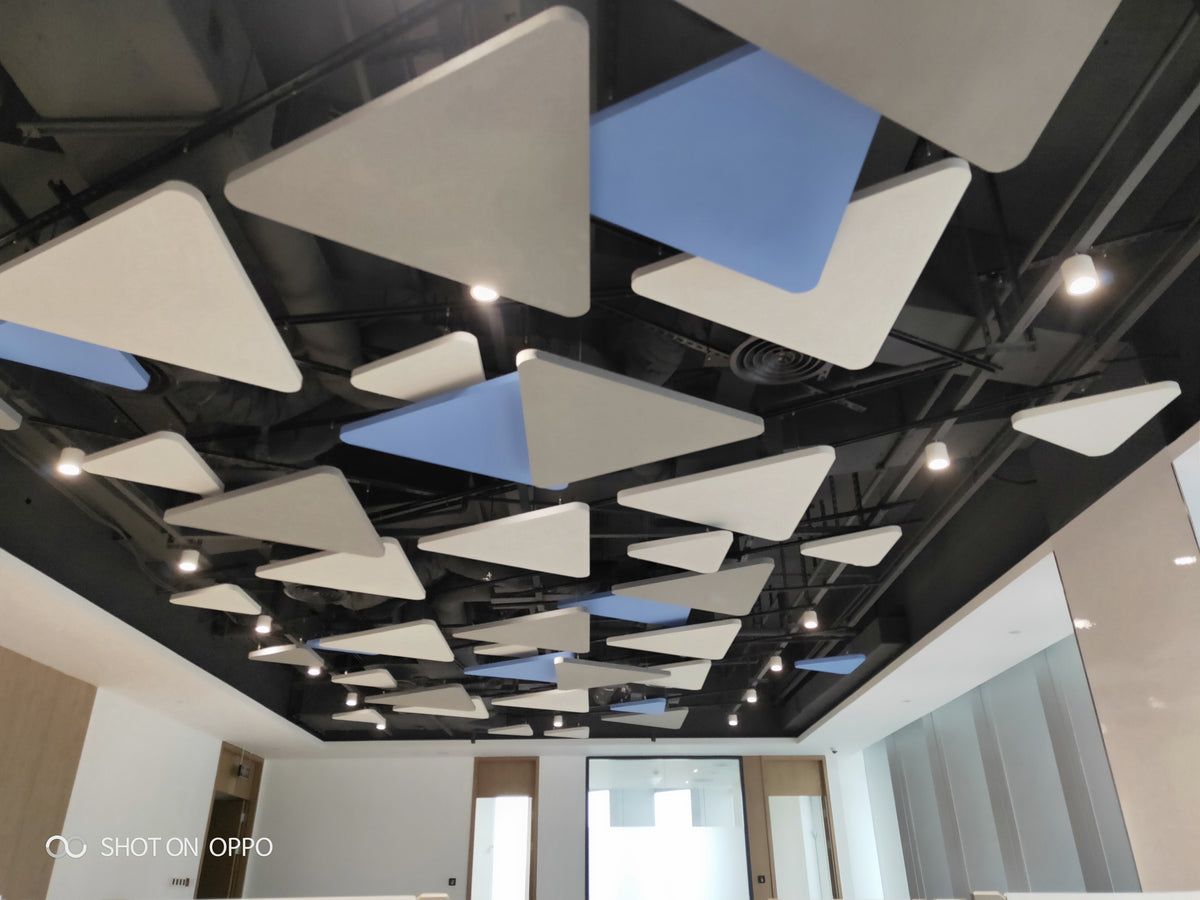

Acoustic Cloud applications.
Applications
Applications
Certificates
SGS · ISO9001:2008 · CE · ASTM-E84
Environmental Impact
Tiles and packings are fully recyclable
Moisture Rate
≤1%
Normal Density
120kg/m³
